Heinrich Schulte

bath mixers/accessoires

alpha_300

Z059125-00280 - Wash basin mixer alpha_300

Heinrich Schulte

bath mixers/accessoires

alpha_300

Z059125-00280 - Wash basin mixer alpha_300

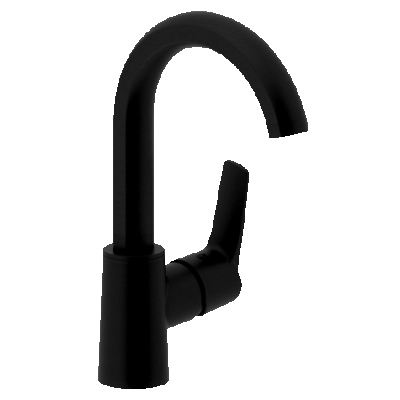

Wash basin mixer Z059125-00280

展开表

1/5

Article number

ARTNR

LOD Level

LODLEVEL

Company/Manufacturer name

Fitting Type

Product description

Line

GTIN

Product-preview

Long text

Weight

GW [kg]

Quantity per packaging unit

VPE

Z059125-00280

350

Heinrich Schulte GmbH & Co. KG

Wash basin mixer

Wash basin mixer black matt flexible hoses 3/8" DIN DVGW aerator 7 l/min caché, anti-limescale noise test mark PA-IX 7261/IO side-controlled without waste set with mounting kit

alpha_300

4020929293495

Wash basin mixer black matt reach 150 mm height up to aerator 205 mm maximum height 275 mm cartridge 35 mm with hot water limiter swivel spout materials according to drinking water regulations and FEA lever metal flexible hoses 3/8" DIN DVGW aerator 7 l/min caché, anti-lime, noise test mark PA-IX 7261/IO for free-standing installation, side-controlled without waste set with fastening kit

2,560

显示压缩表示(1 konfigurierbares Produkt)

订购编码	Z059125-00280
简短文本	Wash basin mixer black matt flexible hoses 3/8" DIN DVGW aerator 7 l/min caché, anti-limescale noise test mark PA-IX 7261/IO side-controlled without waste set with mounting kit
长文	Wash basin mixer black matt reach 150 mm height up to aerator 205 mm maximum height 275 mm cartridge 35 mm with hot water limiter swivel spout materials according to drinking water regulations and FEA lever metal flexible hoses 3/8" DIN DVGW aerator 7 l/min caché, anti-lime, noise test mark PA-IX 7261/IO for free-standing installation, side-controlled without waste set with fastening kit
上次修改	20.01.2023 11:18:23
单位

关键字

分类

CNS

CNSERPBASE Object Properties

Order Number	Z059125-00280
GTIN-Code	4020929293495
Customs Tariff Number	84818011
Description short	Wash basin mixer black matt flexible hoses 3/8" DIN DVGW aerator 7 l/min caché, anti-limescale noise test mark PA-IX 7261/IO side-controlled without waste set with mounting kit
Description long	Wash basin mixer black matt reach 150 mm height up to aerator 205 mm maximum height 275 mm cartridge 35 mm with hot water limiter swivel spout materials according to drinking water regulations and FEA lever metal flexible hoses 3/8" DIN DVGW aerator 7 l/min caché, anti-lime, noise test mark PA-IX 7261/IO for free-standing installation, side-controlled without waste set with fastening kit
Quantity Minimum	1

CNSPHYPROP Physical Properties

按国家

DE 德国

SORTPOS	1
COMPANY	Heinrich Schulte GmbH & Co. KG
DESCRIPTION	Herstellungsstätte
STREET	Grünlandweg 11
ZIP	58640
LOCATION	Iserlohn
COUNTRY	Deutschland
PHONE	02371 9090-0
FAX	02371 9090-99
EMAIL	info@heinrichschulte.com
URL	www.heinrichschulte.com
NAME	Alexander Brockmann

ECLASS 14.0

22-36-01-90 卫生洁具管接头（未归类）

ETIM 10.0

EC011328 Washbasin mixing tap

Material tap	Brass
Surface protection	Coated
Surface treatment	Polished
Basic colour	Black
Accent colour	Black
With couplers	No
Type approval according to BBR/EKS	No

EC011745 Waste plug

ETIM 9.0

EC011328 Washbasin mixing tap

Number of grips	Single-grip
With grips	Yes
Thermostatic	No
Locking mechanism	Cartouche, ceramic
Material tap	Brass
Surface protection	Coated
Surface treatment	Polished
Mounting method	Top/tap hole
Number of tap holes	1-hole
Basic colour	Black
Accent colour	Black
Low-pressure model	No
Connection supply	Hose (gland nut)
Connection size supply	3/8 inch
Tap nozzle	Anti-splash jet nozzle
Outlet model	Rotatable
Type of outlet	Pipe
With hand shower	No
With stop valve for external equipment	No
With couplers	No
With rosettes/cover plate	No
With temperature limit	Yes
Temperature limit retrofittable	No
Max. tap capacity (at 300 kPa)	6.828
Hot water saving function retrofittable	No
With hot water saving function	No
Water saving position	No
Cold start function	No
Total construction height	274
Construction height, underside of tap nozzle	202
Outlet overhang length	150
Sound class according to DIN-52 218	Group I, <=20 dB(A)
Type approval according to BBR/EKS	No

EC011745 Waste plug

ETIM 8.0

EC011328 Washbasin mixing tap

Number of grips	Single-grip
With grips	Yes
Thermostatic	No
Locking mechanism	Cartouche, ceramic
Material tap	Brass
Surface protection	Coated
Surface treatment	Polished
Mounting method	Top/tap hole
Number of tap holes	1-hole
Basic colour	Black
Accent colour	Black
Low-pressure model	No
Connection supply	Hose (gland nut)
Connection size supply	3/8 inch
Tap nozzle	Anti-splash jet nozzle
Outlet model	Rotatable
Type of outlet	Pipe
With hand shower	No
With stop valve for external equipment	No
With couplers	No
With rosettes/cover plate	No
With temperature limit	Yes
Temperature limit retrofittable	No
Max. tap capacity (at 300 kPa)	6.828
Hot water saving function retrofittable	No
With hot water saving function	No
Water saving position	No
Cold start function	No
Total construction height	274
Construction height, underside of tap nozzle	202
Outlet overhang length	150
Sound class according to DIN-52 218	Group I, <=20 dB(A)
Type approval according to BBR/EKS	No

EC011745 Waste plug

Min. 2 产品，含添加
