10 34 0100 0160/001
1/5
Preview
PREVIEW
Article no.
REF
Identifier
IDENT
Size
SIZE
Material group
MATERIAL
Surface
SURFACE
b
B [mm]
h
H [mm]
for shaft Ø d1 allocation 1 above
D1Z1ABOVE [mm]
for shaft Ø d1 allocation 1 up to
D1Z1UPTO [mm]
for shaft Ø d1 allocation 2 above
D1Z2ABOVE [mm]
for shaft Ø d1 allocation 2 up to
D1Z2UPTO [mm]
d2
D2 [mm]
l
L [mm]
Link to website
WEB
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
10 34 0050 0090/001

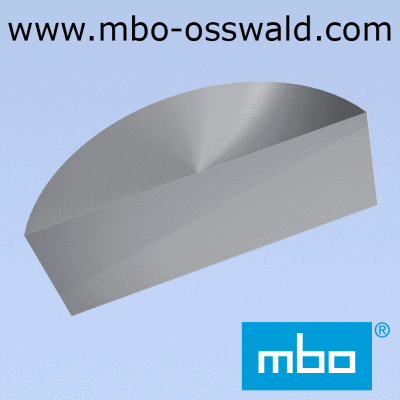

Woodruff key DIN 6888 5x9 Steel bright
5x9
Steel
bright
5
9
-
-
22
30
22
21,63
mbo Osswald eShop
10 34 0060 0075/001
Woodruff key DIN 6888 6x7,5 Steel bright
6x7,5
Steel
bright
6
7,5
17
22
30
38
19
18,57
mbo Osswald eShop
10 34 0060 0090/001
Woodruff key DIN 6888 6x9 Steel bright
6x9
Steel
bright
6
9
17
22
30
38
22
21,63
mbo Osswald eShop
10 34 0060 0100/001
Woodruff key DIN 6888 6x10 Steel bright
6x10
Steel
bright
6
10
17
22
30
38
25
24,49
mbo Osswald eShop
10 34 0060 0110/001
Woodruff key DIN 6888 6x11 Steel bright
6x11
Steel
bright
6
11
-
-
30
38
28
27,35
mbo Osswald eShop
10 34 0080 0090/001
Woodruff key DIN 6888 8x9 Steel bright
8x9
Steel
bright
8
9
22
30
38
22
21,63
mbo Osswald eShop
10 34 0080 0110/001
Woodruff key DIN 6888 8x11 Steel bright
8x11
Steel
bright
8
11
22
30
38
28
27,35
mbo Osswald eShop
10 34 0080 0130/001
Woodruff key DIN 6888 8x13 Steel bright
8x13
Steel
bright
8
13
-
-
38
32
31,43
mbo Osswald eShop
10 34 0100 0110/001
Woodruff key DIN 6888 10x11 Steel bright
10x11
Steel
bright
10
11
30
38
38
28
27,35
mbo Osswald eShop
10 34 0100 0130/001
Woodruff key DIN 6888 10x13 Steel bright
10x13
Steel
bright
10
13
30
38
38
32
31,43
mbo Osswald eShop
10 34 0100 0160/001
Woodruff key DIN 6888 10x16 Steel bright
10x16
Steel
bright
10
16
-
-
38
45
43,08
mbo Osswald eShop
10 34 0010 0014/000
Woodruff key DIN 6888 1x1,4 Stainless steel bright
1x1,4
Stainless steel
bright
1
1,4
3
4
6
8
4
3,82
mbo Osswald eShop
10 34 0015 0026/000
Woodruff key DIN 6888 1,5x2,6 Stainless steel bright
1,5x2,6
Stainless steel
bright
1,5
2,6
4
6
8
10
7
6,76
mbo Osswald eShop
10 34 0020 0026/000
Woodruff key DIN 6888 2x2,6 Stainless steel bright
2x2,6
Stainless steel
bright
2
2,6
6
8
10
12
7
6,76
mbo Osswald eShop
10 34 0020 0037/000
Woodruff key DIN 6888 2x3,7 Stainless steel bright
2x3,7
Stainless steel
bright
2
3,7
6
8
10
12
10
9,66
mbo Osswald eShop
10 34 0025 0037/000
Woodruff key DIN 6888 2,5x3,7 Stainless steel bright
2,5x3,7
Stainless steel
bright
2,5
3,7
8
10
12
17
10
9,66
mbo Osswald eShop
10 34 0030 0037/000
Woodruff key DIN 6888 3x3,7 Stainless steel bright
3x3,7
Stainless steel
bright
3
3,7
8
10
12
17
10
9,66
mbo Osswald eShop
10 34 0030 0050/000
Woodruff key DIN 6888 3x5 Stainless steel bright
3x5
Stainless steel
bright
3
5
8
10
12
17
13
12,65
mbo Osswald eShop
10 34 0030 0065/000
Woodruff key DIN 6888 3x6,5 Stainless steel bright
3x6,5
Stainless steel
bright
3
6,5
-
-
12
17
16
15,72
mbo Osswald eShop
