Create a simple sketch to find similar parts
1/5
1
1
2|0
3
4
4
0
0
0
0
0
0
0
0
0
0
459039(400)
1/5
Manufacturer Name
MANUNAME
Preview picture
PREVIEW_PICTURE
Level of Geometry
LOG
Manufacturer Type Description
MANUTYPEDESC
Product number of the Manufacturer
MANUID
Short Description
DESCSHORT
Long Description
DESCLONG
Weight
PRODUCT_LOGISTIC_DETAILS_NETWEIGHT [kg]
International product number
INTNO
Customs tariff number
CTN
Material thickness
T1 [mm]
Diameter round conductor 1
EF012523 [mm]
1
2
3
4
5
6
7
8
9
10
11
12
13
DEHN SE
400
UTK 8.10 16 STTZN
459010

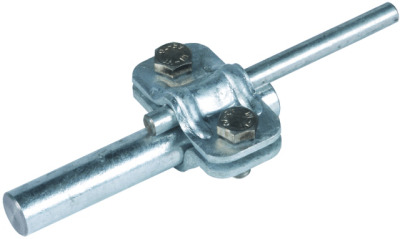

UNI disconnecting clamp, St/tZn for Rd 16/8-10mm
UNI disconnecting clamp according to EN 62561-1, for connecting down conductors with the earth entry, without intermediate plate for earth entries Rd 16 mm.
0.110
4013364099838
85359000
3.0
8.0 - 10.0
DEHN SE
400
UTK 8.10 16 V2A
459019

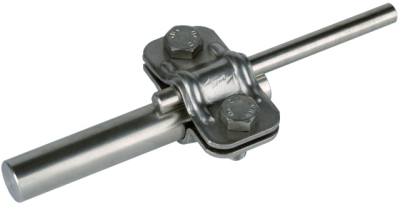

UNI disconnecting clamp, StSt for Rd 16/8-10mm
UNI disconnecting clamp according to EN 62561-1, for connecting down conductors with the earth entry, without intermediate plate for earth entry rods Rd 16 mm.
0.087
4013364031272
85359000
2.5
8.0 - 10.0
DEHN SE
400
UTK 8.10 8.10 STTZN
459020

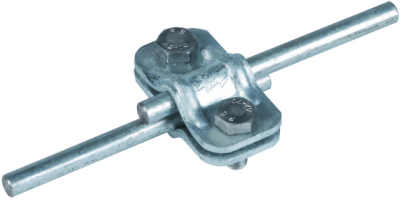

UNI disconnecting clamp, St/tZn for 2x Rd 8-10mm
UNI disconnecting clamp according to EN 62561-1, for connecting down conductors with earth entry rods, without intermediate plate for two round conductors.
0.103
4013364099845
85359000
3.0
8.0 - 10.0
DEHN SE
400
UTK 8.10 8.10 V2A
459029

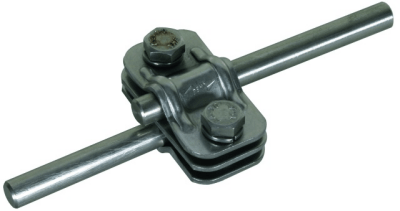

UNI disconnecting clamp, StSt for 2x Rd 8-10mm
UNI disconnecting clamp according to EN 62561-1, for connecting down conductors with earth entry rods, with intermediate plate for two round conductors.
0.087
4013364047587
85359000
2.5
8.0 - 10.0
DEHN SE
400
UTK 8.10 FL30 STTZN
459030

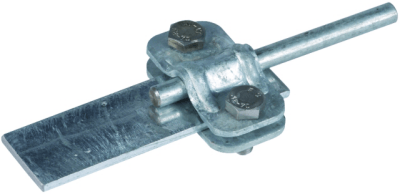

UNI disconnecting clamp, St/tZn for Rd 8-10/Fl 30mm
UNI disconnecting clamp according to EN 62561-1, for connecting down conductors with earth entry rods, without intermediate plate for a round and a flat conductor.
0.101
4013364099852
85359000
3.0
8.0 - 10.0
DEHN SE
400
UTK 8.10 FL30 V2A
459039

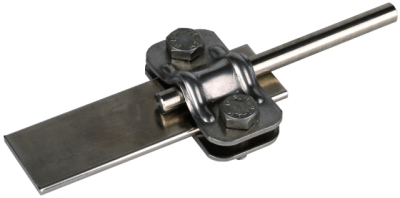

UNI disconnecting clamp, StSt for Rd 8-10/Fl 30mm
UNI disconnecting clamp according to EN 62561-1, for connecting down conductors with earth entry rods, without intermediate plate for a round and a flat conductor.
0.088
4013364047594
85359000
2.5
8.0 - 10.0
DEHN SE
400
UTK 8.10 16 ZP V2A
459119

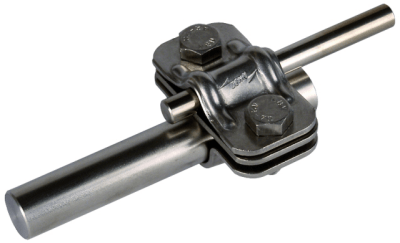

UNI disconnecting clamp, StSt for Rd 8-10/16mm with intermediate plate
UNI disconnecting clamp according to EN 62561-1, for connecting down conductors with earth entries, with intermediate plate for earth entry rods Rd 16 mm.
0.124
4013364051379
85359000
2.5
8.0 - 10.0
DEHN SE
400

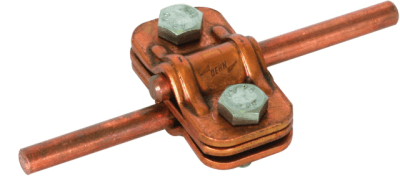

UTK 8.10 8.10 ZP CU
459127
UNI disconnecting clamp Cu with intermediate plate f. 2 x Rd 8-10mm
UNI disconnecting clamp according to EN 62561-1, for connecting down conductors with earth entry rods, with intermediate plate for two round conductors.
0.152
4013364119291
85359000
3.0
8.0 - 10.0
DEHN SE
400

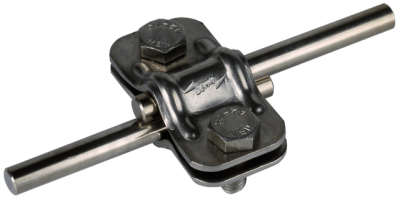

UTK 8.10 8.10 ZP V2A
459129

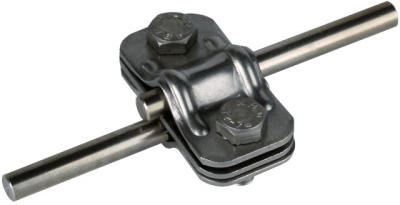

UNI disconnecting clamp, StSt with intermediate plate for 2x Rd 8-10mm
UNI disconnecting clamp according to EN 62561-1, for connecting down conductors with earth entry rods, with intermediate plate for two round conductors.
0.120
4013364051386
85359000
2.5
8.0 - 10.0
DEHN SE
400

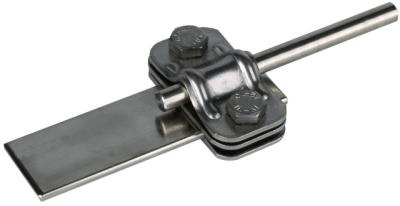

UTK 8.10 FL30 ZP V2A
459139
UNI disconnecting clamp, StSt with intermediate plate for Rd 8-10/Fl 30mm
UNI disconnecting clamp according to DIN EN 50164-1, for connecting the down conductors with earth entry rods. With intermediate plate for a round and a flat conductor.
0.122
4013364078628
85359000
2.5
8.0 - 10.0
DEHN SE
400

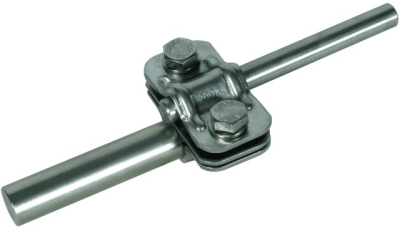

UTK 200 2X10 FL30 ZP V2A
459200
UNI disconn. clamp StSt 200kA w. interm. plate f. 2xRd 10mm or 1xRd 10mm/Fl 30mm
Disconnecting clamp for connecting an air-termination rod or earth entry with a round conductor. Tested for lightning current carrying capability up to 200 kA (10/350 μs) based on EN 62561-1. Type with spring washer and intermediate plate for round and flat conductors.
0.132
4013364155527
85359000
2.5
10.0 - 10.0
DEHN SE
400
UTK 200 8.10 16 ZP V2A
459219
UNI disconnecting clamp StSt 200 kA f. Rd 8-10/16mm w. intermediate plate
Disconnecting clamp for connecting an air-termination rod or earth entry with a round conductor. Tested for lightning current carrying capability up to 200 kA (10/350 μs) based on EN 62561-1. Type with spring washer and intermediate plate for round and flat conductors.
0.126
4013364158221
85359000
2.5
8.0 - 10.0
DEHN SE
400

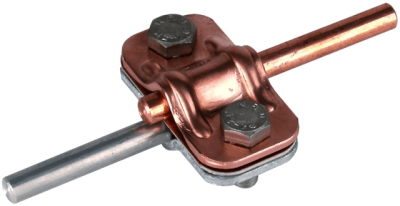

ZMTK 8.10 8.10 CU STTZN
460517
Bimetallic UNI disconnecting clamp Cu-St/tZn for 2x Rd 8-10mm
UNI disconnecting clamp according to EN 62561-1, for connecting down conductors with earth entry rods, bimetallic, for two round conductors (Cu and St/tZn or StSt (V4A)).
0.105
4013364034259
85359000
3.0
8.0 - 10.0
DEHN - UNI Disconnecting Clamps
| 订购编码 | 459039 |
| Shorttext | Disconnection clamp for lightning protection |
| 上次修改 | 13.05.2026 07:40:29 |
| 单位 |
分类
