SAP.M16.GLC.3N
1/5
PREVIEW
Part number
SKU
Description
DESC
Cable diameter (min) in mm
CABLEMIN [mm]
Cable diameter (max) in mm
CABLEMAX [mm]
Housing material
HOUSING
KEYING
Cable termination protection
CABLEPROTECT
COLOR
Number of contacts Low Voltage
LVCONTACTS
AWG min
AWGMIN
AWG max
AWGMAX
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
SAN.M13.GLA.3N

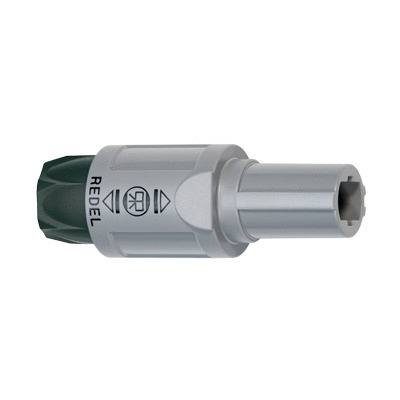

Straight plug, key (N) or keys (P, S and T), with black cable collet
2,5
3,9
Plastic - PPSU
3 keys (alpha=0, gamma=30, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
Black collet nut
13
30
22
SAN.M13.GLA.6N
Straight plug, key (N) or keys (P, S and T), with black cable collet
5,3
6,5
Plastic - PPSU
3 keys (alpha=0, gamma=30, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
Black collet nut
13
30
22
SAN.M13.GLA.7N
Straight plug, key (N) or keys (P, S and T), with black cable collet
6,6
7,5
Plastic - PPSU
3 keys (alpha=0, gamma=30, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
Black collet nut
13
30
22
SAN.M13.GLC.7N
Straight plug, key (N) or keys (P, S and T), with black cable collet
6,6
7,5
Plastic - PPSU
3 keys (alpha=0, gamma=30, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
Black collet nut
13
26
22
SAN.M22.GLA.3N
Straight plug, key (N) or keys (P, S and T), with black cable collet
2,5
3,9
Plastic - PPSU
3 keys (alpha=0, gamma=30, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
Black collet nut
22
36
28
SAN.M22.GLA.6N
Straight plug, key (N) or keys (P, S and T), with black cable collet
5,3
6,5
Plastic - PPSU
3 keys (alpha=0, gamma=30, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
Black collet nut
22
36
28
SAN.M22.GLA.7N
Straight plug, key (N) or keys (P, S and T), with black cable collet
6,6
7,5
Plastic - PPSU
3 keys (alpha=0, gamma=30, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
Black collet nut
22
36
28
SAN.M22.GLC.7N
Straight plug, key (N) or keys (P, S and T), with black cable collet
6,6
7,5
Plastic - PPSU
3 keys (alpha=0, gamma=30, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
Black collet nut
22
32
28
SAP.M13.GLA.6N
Straight plug, key (N) or keys (P, S and T), with black cable collet
5,3
6,5
Plastic - PPSU
3 keys (alpha=0, gamma=60, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
Black collet nut
13
30
22
SAP.M13.GLA.7N
Straight plug, key (N) or keys (P, S and T), with black cable collet
6,6
7,5
Plastic - PPSU
3 keys (alpha=0, gamma=60, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
Black collet nut
13
30
22
SAP.M16.GLC.3N
Straight plug, key (N) or keys (P, S and T), with black cable collet
2,5
3,9
Plastic - PPSU
3 keys (alpha=0, gamma=60, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
Black collet nut
16
32
28
SAP.M16.GLC.7N
Straight plug, key (N) or keys (P, S and T), with black cable collet
6,6
7,5
Plastic - PPSU
3 keys (alpha=0, gamma=60, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
Black collet nut
16
32
28
SAP.M22.GLA.6N
Straight plug, key (N) or keys (P, S and T), with black cable collet
5,3
6,5
Plastic - PPSU
3 keys (alpha=0, gamma=60, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
Black collet nut
22
36
28
SAP.M22.GLA.7N
Straight plug, key (N) or keys (P, S and T), with black cable collet
6,6
7,5
Plastic - PPSU
3 keys (alpha=0, gamma=60, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
Black collet nut
22
36
28
SAS.M13.GLL.6N
Straight plug, key (N) or keys (P, S and T), with black cable collet
5,3
6,5
Plastic - PPSU
3 keys (alpha=0, gamma=50, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
Black collet nut
13
30
22
SAS.M13.GLL.7N
Straight plug, key (N) or keys (P, S and T), with black cable collet
6,6
7,5
Plastic - PPSU
3 keys (alpha=0, gamma=50, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
Black collet nut
13
30
22
SAS.M13.GLM.7N
Straight plug, key (N) or keys (P, S and T), with black cable collet
6,6
7,5
Plastic - PPSU
3 keys (alpha=0, gamma=50, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
Black collet nut
13
26
22
SAS.M22.GLL.6N
Straight plug, key (N) or keys (P, S and T), with black cable collet
5,3
6,5
Plastic - PPSU
3 keys (alpha=0, gamma=50, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
Black collet nut
22
36
28
SAS.M22.GLL.7N
Straight plug, key (N) or keys (P, S and T), with black cable collet
6,6
7,5
Plastic - PPSU
3 keys (alpha=0, gamma=50, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
Black collet nut
22
36
28
LEMO - SP-SP-SA_G_N
| 订购编码 | SAP.M16.GLC.3N |
| Shorttext | Straight plug, key (N) or keys (P, S and T), with black cable collet |
| 上次修改 | 21.02.2025 12:14:36 |
| 单位 |
