R40100B0BWO/S
1/5
Preview
PREVIEW
Product ID
PRODUCT_ID
Manufacturer Part Number
MANUFACTURER_PART_NUMBER
Product Name
PRODUCT_NAME
Product Long Description
PRODUCT_LONG_DESCRIPTION
Part Number Description
PART_NUMBER_DESCRIPTION
Port 1
PORT_1
Port 2
PORT_2
Port 3
PORT_3
Port 4
PORT_4
1
R40100B0BWOS
R40100B0BWO/S

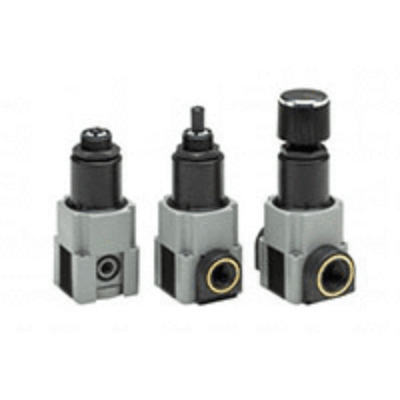

R-4000 Relieving Regulator - R40100B0BWO/S
The Modular Subminiature Relieving Regulator is configured for accurate pressure regulation with minimal consumption. It will only relieve pressure after the output has risen above the setpoint. This feature prevents excess consumption in the system. Pressure compensated design improves the performance of supply pressure variation and flow characteristics The Unique Modular Dovetail design allows the regulator to be configured individually or assembled into a modular combination of pneumatic components Features: Configurable Ports Excellent Repeatability Miniature Size Non-Rising Stem with 20 Turns Pressure Compensated Design Very Low Bleed Elastomeric Seat
R-4000 Relieving Regulator, Model R4010 - 0.5 - 10 PSI, Standard Mount
0 - 10-32 UNF Threads
B - Blank Dovetail
0 - 10-32 UNF Threads
B - Blank Dovetail
Air Logic - R-4000 Relieving Regulator
| 订购编码 | R40100B0BWOS |
| 上次修改 | 17.05.2023 06:57:19 |
| 单位 |
分类
