LEDVANCE

Luminaires

Ceiling-/wall luminaire

PL CMFT 625 P 33W 830 U19 DALIVR

LEDVANCE

Luminaires

Ceiling-/wall luminaire

PL CMFT 625 P 33W 830 U19 DALIVR

4099854014581

Expand Table

1/5

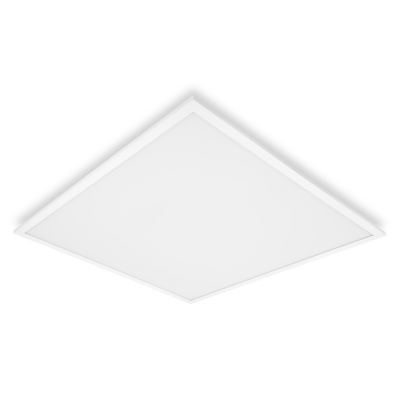

Product picture

PRODUKTBILD

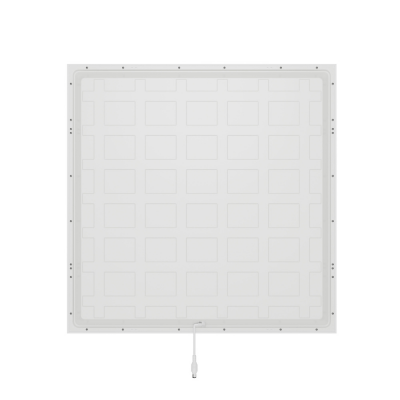

Product picture back view

PRODUKTBILD_RUECKANSICHT

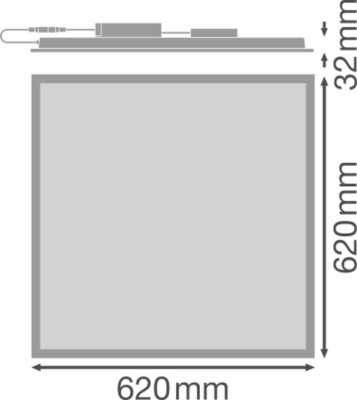

Dimensioned drawing

MASSZEICHNUNG

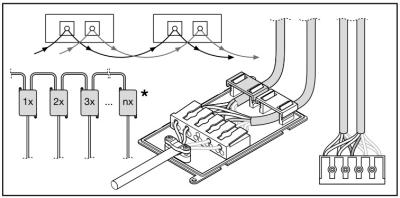

Technical information

TECHNISCHE_INFORMATIONEN

Product number of the Manufacturer

MANUID

Short Description

DESCSHORT

Long Description

DESCLONG

International product number

GTIN

BUYER_PID

Manufacturer Name

MANUNAME

Manufacturer Type Description

MANUTYPEDESC

SPECIAL_TREATMENT_CLASS

4099854014581

PANEL COMFORT 625 UGR<19 DALI 33W 830 U19 DALIVR

Square recessed panel luminaire with low glare, for 625 x 625 mm ceiling systems and DALI-2 IoT technology. Product features: IoT-ready luminaire with DALI-2 technology. Suitable for central battery emergency installations acc. to EN 60598-2-22. Push DIM function for dimming and switching directly on a pushbutton. Versions available with CRI 90. Extruded aluminum frame. Polystyrene diffuser. 5-pole terminal block, cable cross section up to 5 x 2.5 mm². Lifetime (L80/B10): 70,000 h (at 25 °C). Product benefits: Suitable luminaire for VIVARES and other DALI-2 Light Management Systems. Tool-free electrical connection due to push button connector. Through-wiring possible with included connector box. Energy savings thanks to high system efficacy: up to 130 lm/W. Good glare reduction (UGR < 19). High color consistency with SDCM 3. Extended services such as energy monitoring and remote maintenance possible with DALI versions. External driver for extended flexibility and easy installation. Low flicker light thanks to special electronic control gear. Suitable for emergency lighting. 5 years guarantee. Areas of application: Direct replacement for recessed luminaires with fluorescent lamps. Offices, conference rooms. Reception areas, foyers, corridors, elevators. Suitable for recessed ceiling systems with grid size of 625 x 625 mm. Equipment / Accessories: Accessories for several mounting options available. Connector box with 5-pole terminal included. Security brackets preinstalled. External control gear included. Suitable for use with seperate Emergency Conversion Box. Safety advice: All electrical connections must be made by a qualified person.. Caution, risk of electric shock.. The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.. The luminaires are not suitable for covering with thermally insulated material..

4099854014581

PL CMFT 625 P 3

LEDVANCE GmbH

PL CMFT 625 P 33W 830 U19 DALIVR

NONE

显示压缩表示形式 (1 Produkt)

订购编码	4099854014581
Shorttext	PANEL COMFORT 625 UGR<19 DALI 33W 830 U19 DALIVR
Longtext	Square recessed panel luminaire with low glare, for 625 x 625 mm ceiling systems and DALI-2 IoT technology. Product features: IoT-ready luminaire with DALI-2 technology. Suitable for central battery emergency installations acc. to EN 60598-2-22. Push DIM function for dimming and switching directly on a pushbutton. Versions available with CRI 90. Extruded aluminum frame. Polystyrene diffuser. 5-pole terminal block, cable cross section up to 5 x 2.5 mm². Lifetime (L80/B10): 70,000 h (at 25 °C). Product benefits: Suitable luminaire for VIVARES and other DALI-2 Light Management Systems. Tool-free electrical connection due to push button connector. Through-wiring possible with included connector box. Energy savings thanks to high system efficacy: up to 130 lm/W. Good glare reduction (UGR < 19). High color consistency with SDCM 3. Extended services such as energy monitoring and remote maintenance possible with DALI versions. External driver for extended flexibility and easy installation. Low flicker light thanks to special electronic control gear. Suitable for emergency lighting. 5 years guarantee. Areas of application: Direct replacement for recessed luminaires with fluorescent lamps. Offices, conference rooms. Reception areas, foyers, corridors, elevators. Suitable for recessed ceiling systems with grid size of 625 x 625 mm. Equipment / Accessories: Accessories for several mounting options available. Connector box with 5-pole terminal included. Security brackets preinstalled. External control gear included. Suitable for use with seperate Emergency Conversion Box. Safety advice: All electrical connections must be made by a qualified person.. Caution, risk of electric shock.. The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.. The luminaires are not suitable for covering with thermally insulated material..
上次修改	11.12.2025 15:11:38
单位

关键字

分类

CNS

CNSERPBASE Object Properties

Customs Tariff Number	94051190
Description long	Square recessed panel luminaire with low glare, for 625 x 625 mm ceiling systems and DALI-2 IoT technology. Product features: IoT-ready luminaire with DALI-2 technology. Suitable for central battery emergency installations acc. to EN 60598-2-22. Push DIM function for dimming and switching directly on a pushbutton. Versions available with CRI 90. Extruded aluminum frame. Polystyrene diffuser. 5-pole terminal block, cable cross section up to 5 x 2.5 mm². Lifetime (L80/B10): 70,000 h (at 25 °C). Product benefits: Suitable luminaire for VIVARES and other DALI-2 Light Management Systems. Tool-free electrical connection due to push button connector. Through-wiring possible with included connector box. Energy savings thanks to high system efficacy: up to 130 lm/W. Good glare reduction (UGR < 19). High color consistency with SDCM 3. Extended services such as energy monitoring and remote maintenance possible with DALI versions. External driver for extended flexibility and easy installation. Low flicker light thanks to special electronic control gear. Suitable for emergency lighting. 5 years guarantee. Areas of application: Direct replacement for recessed luminaires with fluorescent lamps. Offices, conference rooms. Reception areas, foyers, corridors, elevators. Suitable for recessed ceiling systems with grid size of 625 x 625 mm. Equipment / Accessories: Accessories for several mounting options available. Connector box with 5-pole terminal included. Security brackets preinstalled. External control gear included. Suitable for use with seperate Emergency Conversion Box. Safety advice: All electrical connections must be made by a qualified person.. Caution, risk of electric shock.. The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.. The luminaires are not suitable for covering with thermally insulated material..
Description short	PANEL COMFORT 625 UGR<19 DALI 33W 830 U19 DALIVR
GTIN-Code	4099854014581
Order Number	4099854014581

ECLASS 14.0

27-11-03-04 天花板/墙壁灯具

ECLASS 13.0

27-11-03-04 Ceiling-/wall luminaire

protection class	II
宽度	620.00 mm
connection type of process connection	Push-in clamp
机架颜色	White
电压类型	AC/DC
移动信号机	false
色彩真实度	80-89
suitable for wall mounting	false
min. width of the niche	600.0 mm
光线传感器（是/否）	false
suitable for suspended mounting	true
极数	5
长度	620.00 mm
高度	32.00 mm
外壳材料	Steel
suitable for light line configuration	false
suitable for emergency lighting	true
impact strength	IK02
最大额定电压	220, 240 V
最小额定电压	220, 240 V
保护方式IP	IP40
照明灯（是/否）	true
fire resistance D	false
covering the luminaire with thermal insulation material possible	false
suitable for installation mounting	true
control unit included	true
max. colour temperature	3000, 3000 K
min. colour temperature	3000, 3000 K
最大允许功率	33.00 W
air slot present	false
rated life time (L70/B50 at 25 °C)	100000 h
light distributor	Diffuser lens/optic/panel
energy efficiency class of the light source (acc. EU regulation 2019/2015)	D
安装深度	50.0 mm

ETIM 10.0

EC002892 Ceiling-/wall luminaire

Protection class	II
Width	620.00 mm
Connection type	Push-in clamp
Housing colour	White
Voltage type	AC/DC
With movement sensor	false
Type of grid	High-gloss
Colour rendering index CRI	80-89
Suitable for wall mounting	false
Built-in width	600.0 mm
With light sensor	false
Suitable for suspended mounting	true
Number of poles	5
Length	620.00 mm
Height/depth	32.00 mm
Housing material	Steel
Built-in length	600.0 mm
Suitable for light line configuration	false
Suitable for emergency lighting	true
Light outlet	Direct
Impact strength	IK02
Nominal voltage	220, 240 V
With light source	true
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	false
Covering of the luminaire with thermally insulating material possible	false
Suitable for built-in mounting	true
With control gear	true
Suitable for workplace according to EN 12464-1	true
Suitable for surface mounting	true
Nominal current	150.000, 150.000 A
Colour temperature	3000, 3000 K
Max. system power	33.00 W
Rated luminous flux according to IEC 62722-2- 1	4320 lm
Colour of light	White
With air slots	false
Constant light output (CLO)	false
IFTTT support available	true
Type of wiring	Suitable for through wiring
Rated life time L70/B50 at 25 °C	100000 h
Colour consistency (McAdam ellipse)	SDCM3
Photobiological safety according to EN 62471	RG0
Rated ambient temperature according to IEC 62722-2-1	-10, +50 °C
Dimming 0-10 V	false
Dimming 1-10 V	false
Dimming DALI	true
Dimming DMX	false
Dimming potentiometer (integrated)	false
Dimming manufacturer's proprietary system	false
Dimming mains voltage modulation	false
Dimming phase cut-off	false
Dimming phase cut-on	false
Dimming programmable	false
Dimming RF	false
Dimming Touch and Dim	true
Dimming Zigbee	false
Dimming with push-button	true
Light distributor	Diffuser lens/optic/panel
Dimming DSI	false
Unified Glare Ratio (UGR)	19
Operation by Bluetooth	false
Compatible with Apple HomeKit	false
Compatible with Google Assistant	false
Compatible with Amazon Alexa	false
Max. number of luminaires per miniature circuit breaker C16 (MCB)	65
Max. number of luminaires per miniature circuit breaker B16 (MCB)	40
Dimming DALI-2	true
Colour of light adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	true
Compatible with Casambi	false
Energy efficiency class of the light source according to EU regulation 2019/2015	D
Suitable for ceiling mounting	true
Built-in height/depth	50.0 mm
Surface protection housing	Powder coating
Power factor	0.90

ETIM 9.0

EC002892 Ceiling-/wall luminaire

Protection class	II
Width	620.00 mm
Connection type	Push-in clamp
Housing colour	White
Voltage type	AC/DC
With movement sensor	false
Type of grid	High-gloss
Colour rendering index CRI	80-89
Suitable for wall mounting	false
Built-in width	600.0 mm
With light sensor	false
Suitable for suspended mounting	true
Number of poles	5
Length	620.00 mm
Height/depth	32.00 mm
Housing material	Steel
Built-in length	600.0 mm
Suitable for light line configuration	false
Suitable for emergency lighting	true
Light outlet	Direct
Impact strength	IK02
Nominal voltage	220, 240 V
Emergency power supply integrated	false
Degree of protection (IP)	IP40
With light source	true
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	false
Covering of the luminaire with thermally insulating material possible	false
Suitable for built-in mounting	true
With control gear	true
Suitable for workplace according to EN 12464-1	true
Suitable for surface mounting	true
Nominal current	150.000, 150.000 A
Colour temperature	3000, 3000 K
Max. system power	33.00 W
Rated luminous flux according to IEC 62722-2-1	4320 lm
Colour of light	White
With air slots	false
Constant light output (CLO)	false
IFTTT support available	true
Type of wiring	Suitable for through wiring
Rated life time L70/B50 at 25 °C	100000 h
Colour consistency (McAdam ellipse)	SDCM3
Photobiological safety according to EN 62471	RG0
Rated ambient temperature according to IEC 62722-2-1	-10, +50 °C
Dimming 0-10 V	false
Dimming 1-10 V	false
Dimming DALI	true
Dimming DMX	false
Dimming potentiometer (integrated)	false
Dimming LineSwitch	false
Dimming manufacturer's proprietary system	false
Dimming mains voltage modulation	false
Dimming phase cut-off	false
Dimming phase cut-on	false
Dimming programmable	false
Dimming RF	false
Dimming Sine Wave Reduction	false
Dimming Touch and Dim	true
Dimming Zigbee	false
Dimming with push-button	true
No dim function	false
Light distributor	Diffuser lens/optic/panel
Luminaire efficacy	130 lm/W
Dimming DSI	false
Unified Glare Ratio (UGR)	19
Operation by Bluetooth	false
Compatible with Apple HomeKit	false
Compatible with Google Assistant	false
Compatible with Amazon Alexa	false
Max. number of luminaires per miniature circuit breaker C16 (MCB)	65
Max. number of luminaires per miniature circuit breaker B16 (MCB)	40
Dimming DALI-2	true
Colour of light adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	true
Compatible with Casambi	false
Energy efficiency class of the light source according to EU regulation 2019/2015	D
Suitable for ceiling mounting	true
Built-in height/depth	50.0 mm
Surface protection housing	Powder coating
Power factor	0.90
