PANEL COMFORT 625 DALI 28W 830 DALIVR

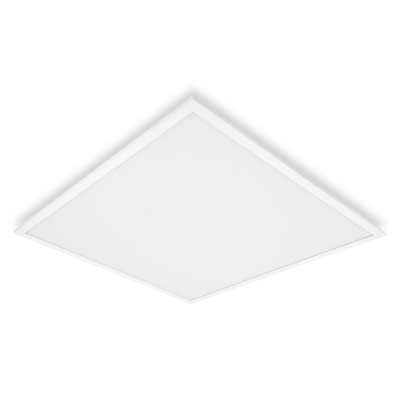

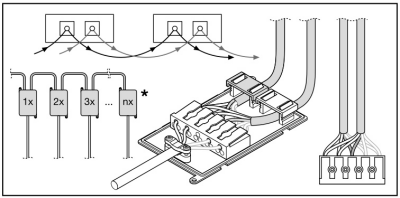

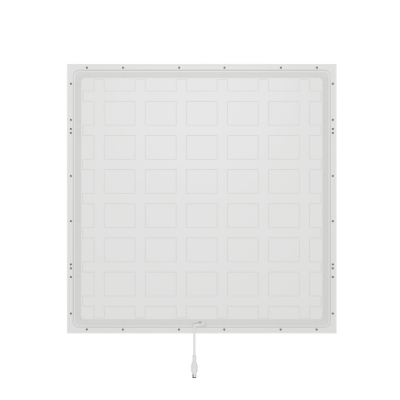

Square recessed panel luminaire, for 625 x 625 mm ceiling systems and DALI-2 IoT technology. Product features: IoT-ready luminaire with DALI-2 technology. Suitable for central battery emergency installations acc. to EN 60598-2-22. Push DIM function for dimming and switching directly on a pushbutton. Extruded aluminum frame. Polystyrene diffuser. 5-pole terminal block, cable cross section up to 5 x 2.5 mm². Lifetime (L80/B10): 70,000 h (at 25 °C). Product benefits: Suitable luminaire for VIVARES and other DALI-2 Light Management Systems. Tool-free electrical connection due to push button connector. Through-wiring possible with included connector box. Energy savings thanks to high system efficacy: up to 130 lm/W. High color consistency with SDCM 3. Extended services such as energy monitoring and remote maintenance possible with DALI versions. External driver for extended flexibility and easy installation. Low flicker light thanks to special electronic control gear. Suitable for emergency lighting. 5 years guarantee. Areas of application: Direct replacement for recessed luminaires with fluorescent lamps. Offices, conference rooms. Reception areas, foyers, corridors, elevators. Suitable for recessed ceiling systems with grid size of 625 x 625 mm. Equipment / Accessories: Accessories for several mounting options available. Connector box with 5-pole terminal included. Security brackets preinstalled. External control gear included. Suitable for use with seperate Emergency Conversion Box.

4099854014291

PL CMFT 625 P 2

LEDVANCE GmbH

PL CMFT 625 P 28W 830 DALIVR
