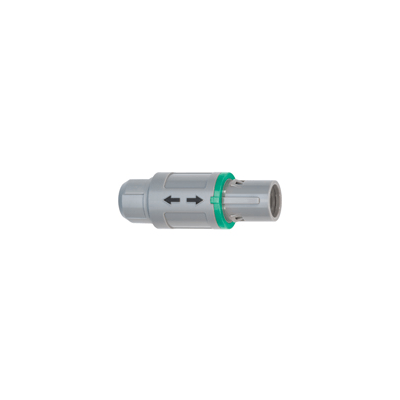

CAB.M16.GLA.C92V
1/5
PREVIEW
Part number
SKU
Description
DESC
Cable diameter (min) in mm
CABLEMIN [mm]
Cable diameter (max) in mm
CABLEMAX [mm]
Housing material
HOUSING
KEYING
Cable termination protection
CABLEPROTECT
COLOR
Number of contacts Low Voltage
LVCONTACTS
Number of contacts High Voltage
HVCONTACTS
Number of contacts Coax
COAXCONTACTS
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
CAB.804.GLA.C721V
Straight plug with cable collet
5,3
7,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
4
1
CAB.H08.GLA.C52V
Straight plug with cable collet
3,2
5,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
8
CAB.M02.GLA.C52V
Straight plug with cable collet
3,2
5,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
2
CAB.M03.GLA.C52V
Straight plug with cable collet
3,2
5,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
3
CAB.M03.GLA.C92V
Straight plug with cable collet
7,3
9,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
3
CAB.M08.GLA.C92V
Straight plug with cable collet
7,3
9,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
8
CAB.M10.GLA.C72V
Straight plug with cable collet
5,3
7,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
10
CAB.M10.GLA.C92V
Straight plug with cable collet
7,3
9,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
10
CAB.M16.GLA.C52V
Straight plug with cable collet
3,2
5,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
16
CAB.M16.GLA.C72V
Straight plug with cable collet
5,3
7,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
16
CAB.M16.GLA.C92V
Straight plug with cable collet
7,3
9,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
16
CAB.M16.GYZ.C52V
Straight plug with cable collet
3,2
5,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
16
CAB.M16.GYZ.C92V
Straight plug with cable collet
7,3
9,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
16
CAB.M16.GYZ.C92VY
Straight plug with cable collet
7.3
9.2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Grey - Green
16
CAB.M16.SYC.C72V
Straight plug with cable collet
5.3
7.2
Plastic - PEI
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Grey - Green
16
CAB.M19.GLA.C52V
Straight plug with cable collet
3,2
5,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
19
CAB.M19.GLA.C72V
Straight plug with cable collet
5,3
7,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
19
CAB.M19.GYC.C92V
Straight plug with cable collet
7,3
9,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
19
CAB.M26.GLA.C52V
Straight plug with cable collet
3,2
5,2
Plastic - PSU
3 keys (alpha=0, gamma=60, Plug: male contacts, Receptacle: female contacts)
Standard back nut (no additional protection)
Green
26
LEMO - P-2P-CA-V
| 订购编码 | CAB.M16.GLA.C92V |
| 简短文本 | Straight plug with cable collet |
| 上次修改 | 21.02.2025 12:14:31 |
| 单位 |
