IFAE080050w
1/5
Manufacturer
FIRMA
Article Number
ARTNR
Description short text
DESCSHORT
Field of use
AW
Fire resistance class
FK
LOD Level
LODLEVEL
Preview picture
VORSCHAUBILD
Outside width of the opening (BA)
BA [mm]
Outer height of the opening (HA)
HA [mm]
1
2
3
4
5
6
7
8
9
10
11
12
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAE030030v

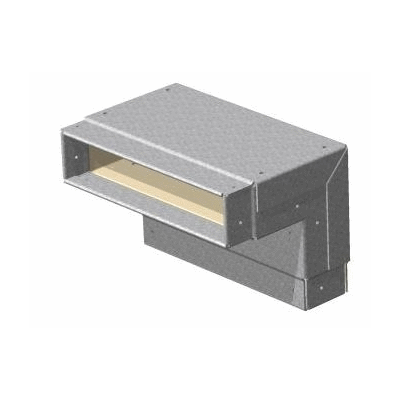

Instafix® BKI outside corner 90° 50 x 30 x 30 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
31.6
31.6
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAE030030w

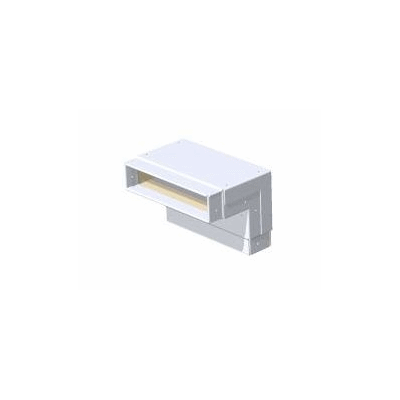

Instafix® BKI outside corner 90° 50 x 30 x 30 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
31.6
31.6
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAE040040v
Instafix® BKI outside corner 90° 50 x 40 x 40 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
41.6
41.6
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAE040040w
Instafix® BKI outside corner 90° 50 x 40 x 40 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
41.6
41.6
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAE080050v
Instafix® BKI outside corner 90° 50 x 80 x 50 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
80.0
50.0
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAE080050w
Instafix® BKI outside corner 90° 50 x 80 x 50 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
80.0
50.0
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAE200050v
Instafix® BKI outside corner 90° 50 x 200 x 50 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
200.0
50.0
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAE200050w
Instafix® BKI outside corner 90° 50 x 200 x 50 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
200.0
50.0
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAE260100v
Instafix® BKI outside corner 90° 50 x 260 x 100 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
260.0
100.0
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAE260100w
Instafix® BKI outside corner 90° 50 x 260 x 100 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
260.0
100.0
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAE400120v
Instafix® BKI outside corner 90° 50 x 400 x 120 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
400.0
120.0
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAE400120w
Instafix® BKI outside corner 90° 50 x 400 x 120 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
400.0
120.0
Wichmann - Outside corner
| 订购编码 | IFAE080050w |
| 简短文本 | Electrical installation duct |
| 上次修改 | 07.05.2024 09:49:22 |
| 单位 |
