Pepperl+Fuchs
Photoelectric Sensors
Distance Sensors
OMT300-R200-2EP-IO-V31-L - Distance Sensors
Pepperl+Fuchs
Photoelectric Sensors
Distance Sensors
OMT300-R200-2EP-IO-V31-L - Distance Sensors
1/5
1
1
2|0
3
4
4
0
0
0
0
0
0
0
0
0
0

OMT300-R200-2EP-IO-V31-L

Expand Table
1/5

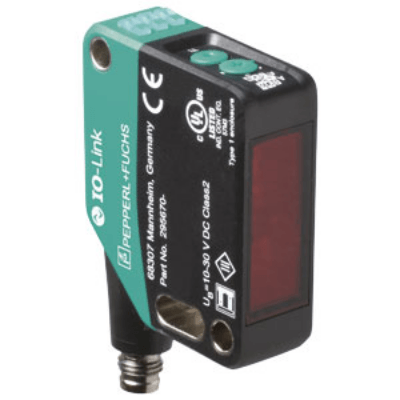

Product Picture
PRODUCT_PICTURE
MANUID
Short Description
DESCSHORT
EAN
Manufacturer Type Description
MANUTYPEDESC
max. measuring range -length
AAB866006 [mm]
min. measuring range - length
AAB990006 [mm]
Max. output current
BAC640005 [mA]
min. ambient temperature
BAA038006 [°C]
Type of light
BAD859008
Voltage type
BAD915006
Width of sensor
BAD823004 [mm]
Material of the optical surface
BAD950006
1
OMT300-R200-2EP-IO-V31-L
Distance sensor OMT300-R200-2EP-IO-V31-L
4050143366170
OMT300-R200-2EP-IO-V31-L
300
100
100
10
Laser diode, red light
DC
15
Plastic
显示压缩表示形式 (1 Produkt)
零部件信息
相似件
Request for quote (RFQ)
Pepperl+Fuchs - OMT300-R200-2EP-IO-V31-L
订购编码OMT300-R200-2EP-IO-V31-L
ShorttextDistance sensor OMT300-R200-2EP-IO-V31-L
上次修改13.12.2022 15:42:02
单位
关键字

分类

CNS

CNSERPBASE Object Properties
Customs Tariff Number9015 1000 000 [DE]
Description shortDistance sensor OMT300-R200-2EP-IO-V31-L
Order NumberOMT300-R200-2EP-IO-V31-L

ECLASS 14.0

27-27-09-16 光学距离传感器

ECLASS 12.0

27-27-09-16 光学距离传感器

ECLASS 11.1

27-27-08-01 光学距离传感器

ECLASS 11.0

27-27-08-01 光学距离传感器
最大度量范围-长度300 mm
最小度量范围-长度100 mm
外壳材料Polycarbonate
最大输出电流100 mA
传感器宽度15 mm
电路连接说明Connector M8
外壳结构类型Block
传感器高度50.6 mm
传感器长度41.7 mm
激光安全等级Class 1
光线类型Laser diode, red light
转换输出说明NPN
电压类型DC
光学面的原材料Plastic

ECLASS 9.1

27-27-08-01 光学距离传感器
最大度量范围-长度300 mm
最小度量范围-长度100 mm
最低环境温度10 °C
最高环境温度60.00 °C
外壳材料Polycarbonate
最大输出电流100 mA
传感器宽度15 mm
电路连接说明Connector M8
外壳结构类型Block
传感器高度50.6 mm
传感器长度41.7 mm
激光安全等级Class 1
光线类型Laser diode, red light
转换输出说明NPN
电压类型DC
光学面的原材料Plastic

ETIM 10.0

EC001825 Optical distance sensor

ETIM 8.0

EC001825 Optical distance sensor
Measuring range length300 mm
Material housingPolycarbonate
Max. output current100 mA
Width sensor15 mm
Type of electric connectionConnector M8
Construction type housingBlock
Height of sensor50.6 mm
Length of sensor41.7 mm
Laser protection classClass 1
Type of lightLaser diode, red light
Type of switching outputNPN
Voltage typeDC
Material of optical surfacePlastic

ETIM 7.0

EC001825 Optical distance sensor
Measuring range length300 mm
Material housingPolycarbonate
Max. output current100 mA
Width sensor15 mm
Type of electric connectionConnector M8
Construction type housingBlock
Height of sensor50.6 mm
Length of sensor41.7 mm
Laser protection classClass 1
Type of lightLaser diode, red light
Type of switching outputNPN
Voltage typeDC
Material of optical surfacePlastic
