216542
1/5
Preview
PREVIEW
PLID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Netto weight
NETTO_WEIGHT [kg]
ECLASS-13.0
ECLASS_13_0
ETIM-10.0
ETIM_10_0
Width [EF000008]
EF000008 [mm]
1
2
3
4
5
6
7
8
216543

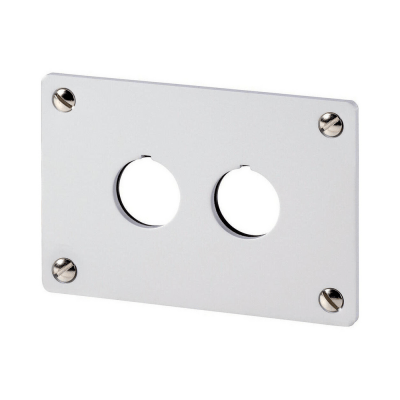

M22-E2
Flush mounting plate, 2 mounting locations
Flush mounting plate, Number of locations: 2, Degree of Protection: IP65, Color grey, Color RAL Value: RAL 7035, Connection to SmartWire-DT: no, No legend plates possible with vertical arrangements, Degree of protection only in conjunction with a suitable enclosure and correct mounting., Aluminum light anodized, including M22-XE...
4015082165437
0.076
Installation plate for command devices [ACO025016]
Mounting plate for control devices [EC000201]
105
216541

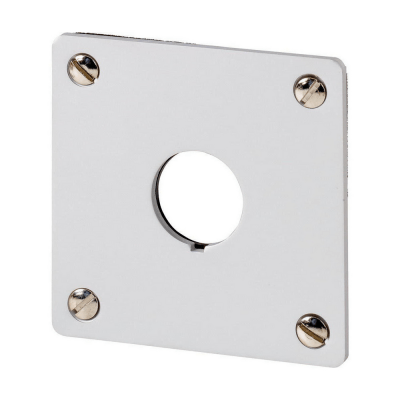

M22-E1
Flush mounting plate, 1 mounting location
Flush mounting plate, Number of locations: 1, Degree of Protection: IP65, Color grey, Color RAL Value: RAL 7035, Connection to SmartWire-DT: no, No legend plates possible with vertical arrangements, Degree of protection only in conjunction with a suitable enclosure and correct mounting., Aluminum light anodized, including M22-XE...
4015082165413
0.054
Installation plate for command devices [ACO025016]
Mounting plate for control devices [EC000201]
72
216547
M22-E6
Flush mounting plate, 6 mounting locations
Flush mounting plate, Number of locations: 6, Degree of Protection: IP40, Color grey, Color RAL Value: RAL 7035, Connection to SmartWire-DT: no, No legend plates possible with vertical arrangements, Degree of protection only in conjunction with a suitable enclosure and correct mounting., Aluminum light anodized, including M22-XE...
4015082165475
0.193
Installation plate for command devices [ACO025016]
Mounting plate for control devices [EC000201]
237
216542

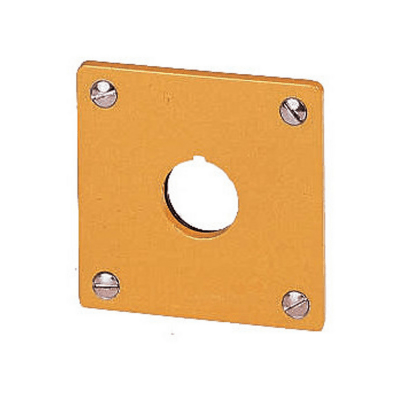

M22-EY1
Flush mounting plate, yellow, 1 mounting location
Flush mounting plate, Number of locations: 1, Degree of Protection: IP65, Color yellow, Color RAL Value: RAL 1004, Connection to SmartWire-DT: no, No legend plates possible with vertical arrangements, Degree of protection only in conjunction with a suitable enclosure and correct mounting., Aluminum with yellow paint finish for Emergency-Stop actuator
4015082165420
0.054
Installation plate for command devices [ACO025016]
Mounting plate for control devices [EC000201]
72
216544

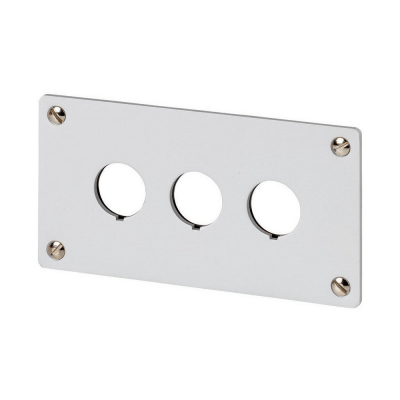

M22-E3
Flush mounting plate, 3 mounting locations
Flush mounting plate, Number of locations: 3, Degree of Protection: IP65, Color grey, Color RAL Value: RAL 7035, Connection to SmartWire-DT: no, No legend plates possible with vertical arrangements, Degree of protection only in conjunction with a suitable enclosure and correct mounting., Aluminum light anodized, including M22-XE...
4015082165444
0.099
Installation plate for command devices [ACO025016]
Mounting plate for control devices [EC000201]
138
216545
M22-E4
Flush mounting plate, 4 mounting locations
Flush mounting plate, Number of locations: 4, Degree of Protection: IP65, Color grey, Color RAL Value: RAL 7035, Connection to SmartWire-DT: no, No legend plates possible with vertical arrangements, Degree of protection only in conjunction with a suitable enclosure and correct mounting., Aluminum light anodized, including M22-XE...
4015082165451
0.161
Installation plate for command devices [ACO025016]
Mounting plate for control devices [EC000201]
171
101394

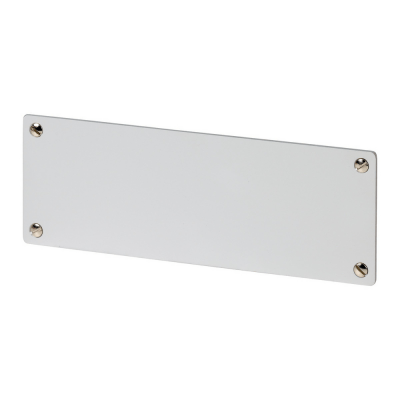

M22-E5-X
Flush mounting plate, without drill holes
For pilot devices.
4015081013173
0.170
Installation plate for command devices [ACO025016]
Mounting plate for control devices [EC000201]
204
216546

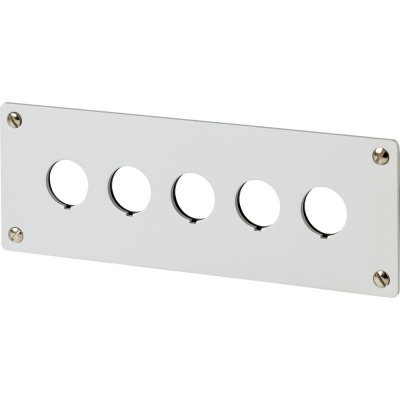

M22-E5
Flush mounting plate, 5 mounting locations
Flush mounting plate, Number of locations: 5, Degree of Protection: IP65, Color grey, Color RAL Value: RAL 7035, Connection to SmartWire-DT: no, No legend plates possible with vertical arrangements, Degree of protection only in conjunction with a suitable enclosure and correct mounting., Aluminum light anodized, including M22-XE...
4015082165468
0.186
Installation plate for command devices [ACO025016]
Mounting plate for control devices [EC000201]
204
Eaton's CAD - Mounting plate for control devices [EC000201]
| 订购编码 | 216542 |
| 上次修改 | 03.09.2026 18:12:50 |
| 单位 |
分类
