248868

Z-DSA1-01

Rotary switch, 1p, OFF, 0 - 1

The rotary switches in the Z-DS series feature a modular design: the switch itself is made up of the corresponding detent mechanism and a switch package. The cams (which is why the switches are also referred to as "cam switches") are driven by a sturdy, torsionally rigid aluminum shaft. The switch package is made up of one or more switch cells with one or two double-break contacts that are independent of each other. The connections between adjacent switch terminals, such as the one required for the Z-DSV voltmeter changeover switch, are incorporated into the switch molding . This ensures that there will be no obstacles when connecting the terminal leads. Applications: can be practically used for any application. For example, motor switch: garage doors, ventilator, motorized roller shutters, heating controls, light fixtures, instrument switch, various control purposes, etc. Type conform to IEC 60947-3, IEC 60947-5-1, VDE 0660, EN 60947-3, SEV

4015082488680

0.120

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

690

248347

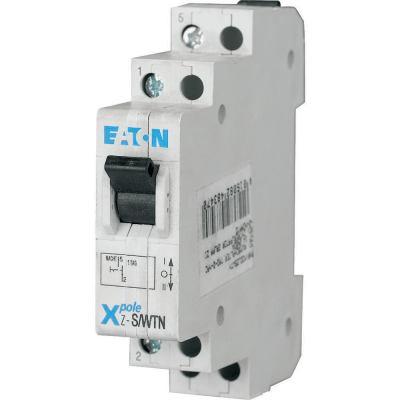

Z-S/WTN

Two way switch, p11 CO, 16A, 230 V, 20kA

Changeover switch, function: 1W, DAY-0-NIGHT, rated operational current 16A, rated operating voltage 230/400V AC, short-circuit strength 10kA, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC 60669, VDE 0632

4015082483470

0.063

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

240

248337

Z-S/SSOO

Control switch, p12 S, 2 N/C, 16A, 230 V, 20kA

Control switch, function: 2 N/O and 2 N/C, rated operational current 16A, rated operating voltage 230/400V AC, short-circuit strength 10kA, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC 60669, VDE 0632

4015082483371

0.086

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

240

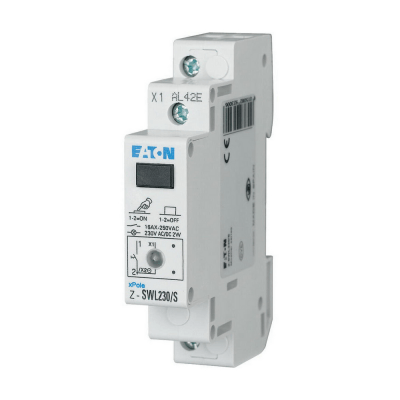

292300

Z-SWL230/S

Switch with LED, 230AC/DC, 1N/O, 16A, orange, 1HP

Switch with LED, function: 1 N/O, rated operational current 16A, rated operating voltage of the switch 250V AC, rated operating voltage of LED 230V AC/DC, color of pushbutton black, color of the LED orange, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632

4015082923006

0.065

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

250

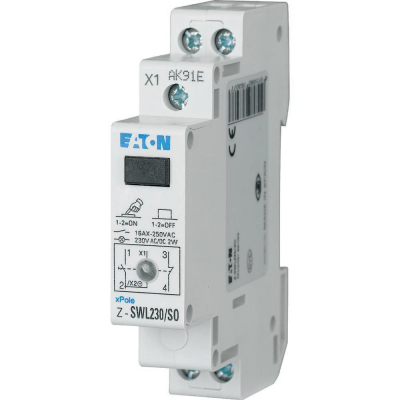

276307

Z-SWL230/SO

Switch with LED, 230AC/DC, 1N/O+1N/C, 16A, orange, 1HP

Switch with LED, function: 1 N/O and 1 N/C, rated operational current 16A, rated operating voltage of the switch 250V AC, rated operating voltage of LED 230V AC/DC, color of pushbutton black, color of the LED orange, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632

4015082763077

0.065

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

250

248335

Z-S/4S

Control switch, p14 S16A, 230 V, 20kA

Control switch, function: 4 N/O, rated operational current 16A, rated operating voltage 230/400V AC, short-circuit strength 10kA, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC 60669, VDE 0632

4015082483357

0.085

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

240

248880

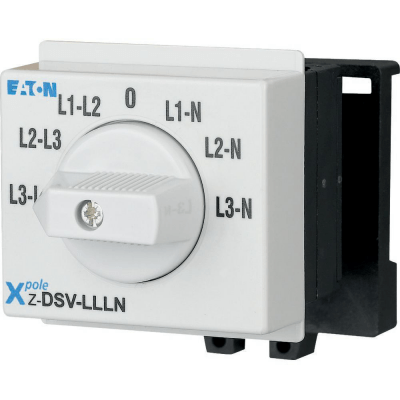

Z-DSV-LLLN

Rotary switch, L+N voltmeter, L1 - N3...

The rotary switches in the Z-DS series feature a modular design: the switch itself is made up of the corresponding detent mechanism and a switch package. The cams (which is why the switches are also referred to as "cam switches") are driven by a sturdy, torsionally rigid aluminum shaft. The switch package is made up of one or more switch cells with one or two double-break contacts that are independent of each other. The connections between adjacent switch terminals, such as the one required for the Z-DSV voltmeter changeover switch, are incorporated into the switch molding . This ensures that there will be no obstacles when connecting the terminal leads. Applications: can be practically used for any application. For example, motor switch: garage doors, ventilator, motorized roller shutters, heating controls, light fixtures, instrument switch, various control purposes, etc. Type conform to IEC 60947-3, IEC 60947-5-1, VDE 0660, EN 60947-3, SEV

4015082488802

0.120

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

690

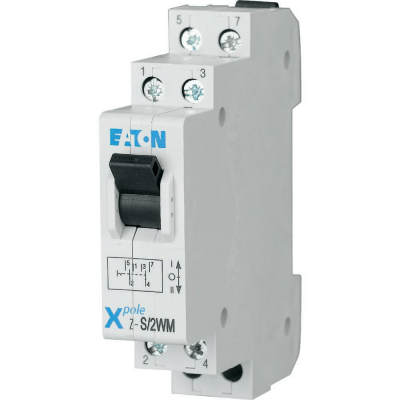

248346

Z-S/2WM

Two way switch, p22 CO, 16A, 230 V, 20kA

Changeover switch, function: 2W, I-O-II, rated operational current 16A, rated operating voltage 230/400V AC, short-circuit strength 10kA, standard front dimension 45 mm, mounting width 2 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC 60669, VDE 0632

4015082483463

0.079

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

240

248870

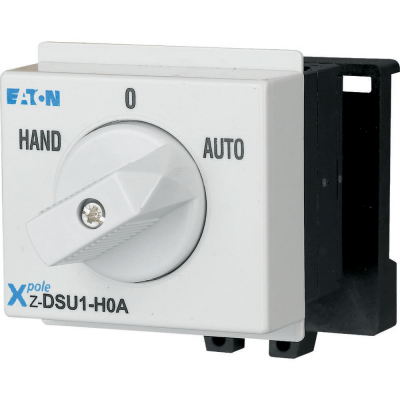

Z-DSU1-H0A

Rotary switch, 1p, UM, HA - 0 - AU

The rotary switches in the Z-DS series feature a modular design: the switch itself is made up of the corresponding detent mechanism and a switch package. The cams (which is why the switches are also referred to as "cam switches") are driven by a sturdy, torsionally rigid aluminum shaft. The switch package is made up of one or more switch cells with one or two double-break contacts that are independent of each other. The connections between adjacent switch terminals, such as the one required for the Z-DSV voltmeter changeover switch, are incorporated into the switch molding . This ensures that there will be no obstacles when connecting the terminal leads. Applications: can be practically used for any application. For example, motor switch: garage doors, ventilator, motorized roller shutters, heating controls, light fixtures, instrument switch, various control purposes, etc. Type conform to IEC 60947-3, IEC 60947-5-1, VDE 0660, EN 60947-3, SEV

4015082488703

0.120

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

690

248348

Z-S/2WTN

Two way switch, p22 CO, 16A, 230 V, 20kA

Changeover switch, function: 2W, DAY-0-NIGHT, rated operational current 16A, rated operating voltage 230/400V AC, short-circuit strength 10kA, standard front dimension 45 mm, mounting width 2 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC 60669, VDE 0632

4015082483487

0.079

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

240

248873

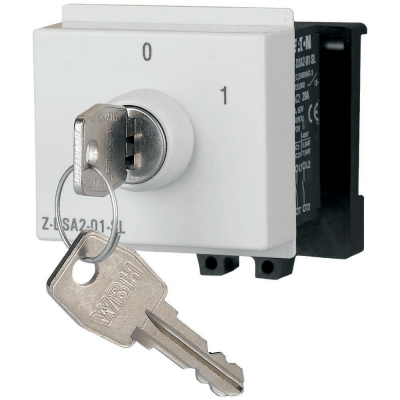

Z-DSA2-01-SL

Rotary switch, 2p, OFF, 0 - 1

The rotary switches in the Z-DS series feature a modular design: the switch itself is made up of the corresponding detent mechanism and a switch package. The cams (which is why the switches are also referred to as "cam switches") are driven by a sturdy, torsionally rigid aluminum shaft. The switch package is made up of one or more switch cells with one or two double-break contacts that are independent of each other. The connections between adjacent switch terminals, such as the one required for the Z-DSV voltmeter changeover switch, are incorporated into the switch molding . This ensures that there will be no obstacles when connecting the terminal leads. Applications: can be practically used for any application. For example, motor switch: garage doors, ventilator, motorized roller shutters, heating controls, light fixtures, instrument switch, various control purposes, etc. Type conform to IEC 60947-3, IEC 60947-5-1, VDE 0660, EN 60947-3, SEV

4015082488734

0.120

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

690

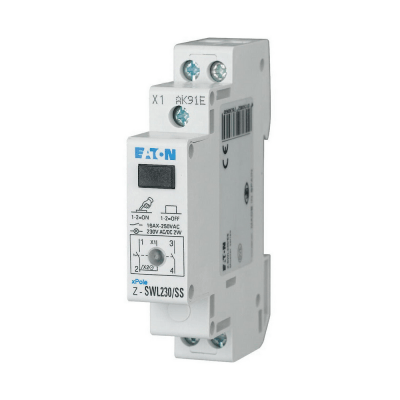

276306

Z-SWL230/SS

Switch with LED, 230AC/DC, 2N/O, 16A, orange, 1HP

Switch with LED, function: 2 N/O, rated operational current 16A, rated operating voltage of the switch 250V AC, rated operating voltage of LED 230V AC/DC, color of pushbutton black, color of the LED orange, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632

4015082763060

0.065

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

250

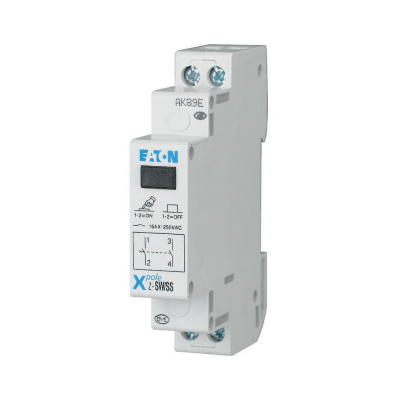

276301

Z-SW/SS

Control switch, p12 S16A, 250 V

Switch, function: 2 N/O, rated operational current 16A, rated operating voltage 250V AC, color of pushbutton black, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632

4015082763015

0.060

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

250

248877

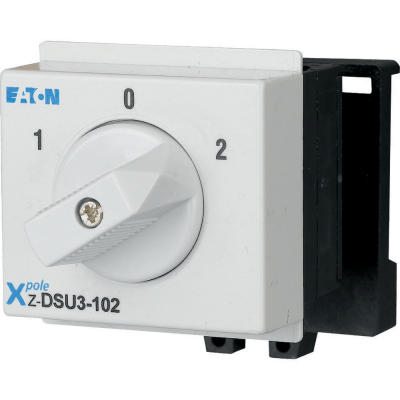

Z-DSU3-102

Rotary switch, 3p, UM, 1 - 0 - 2

The rotary switches in the Z-DS series feature a modular design: the switch itself is made up of the corresponding detent mechanism and a switch package. The cams (which is why the switches are also referred to as "cam switches") are driven by a sturdy, torsionally rigid aluminum shaft. The switch package is made up of one or more switch cells with one or two double-break contacts that are independent of each other. The connections between adjacent switch terminals, such as the one required for the Z-DSV voltmeter changeover switch, are incorporated into the switch molding . This ensures that there will be no obstacles when connecting the terminal leads. Applications: can be practically used for any application. For example, motor switch: garage doors, ventilator, motorized roller shutters, heating controls, light fixtures, instrument switch, various control purposes, etc. Type conform to IEC 60947-3, IEC 60947-5-1, VDE 0660, EN 60947-3, SEV

4015082488772

0.120

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

690

248875

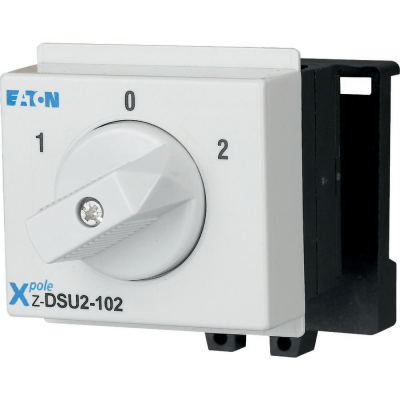

Z-DSU2-102

Rotary switch, 2p, UM, 1 - 0 - 2

The rotary switches in the Z-DS series feature a modular design: the switch itself is made up of the corresponding detent mechanism and a switch package. The cams (which is why the switches are also referred to as "cam switches") are driven by a sturdy, torsionally rigid aluminum shaft. The switch package is made up of one or more switch cells with one or two double-break contacts that are independent of each other. The connections between adjacent switch terminals, such as the one required for the Z-DSV voltmeter changeover switch, are incorporated into the switch molding . This ensures that there will be no obstacles when connecting the terminal leads. Applications: can be practically used for any application. For example, motor switch: garage doors, ventilator, motorized roller shutters, heating controls, light fixtures, instrument switch, various control purposes, etc. Type conform to IEC 60947-3, IEC 60947-5-1, VDE 0660, EN 60947-3, SEV

4015082488758

0.120

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

690

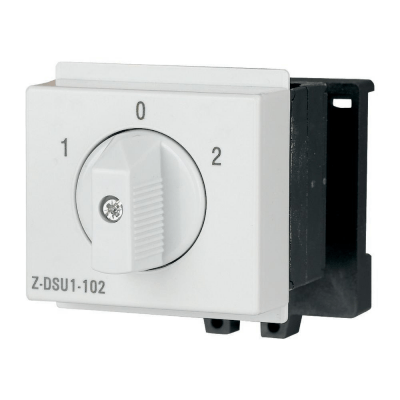

248869

Z-DSU1-102

Rotary switch, 1p, UM, 1 - 0 - 2

The rotary switches in the Z-DS series feature a modular design: the switch itself is made up of the corresponding detent mechanism and a switch package. The cams (which is why the switches are also referred to as "cam switches") are driven by a sturdy, torsionally rigid aluminum shaft. The switch package is made up of one or more switch cells with one or two double-break contacts that are independent of each other. The connections between adjacent switch terminals, such as the one required for the Z-DSV voltmeter changeover switch, are incorporated into the switch molding . This ensures that there will be no obstacles when connecting the terminal leads. Applications: can be practically used for any application. For example, motor switch: garage doors, ventilator, motorized roller shutters, heating controls, light fixtures, instrument switch, various control purposes, etc. Type conform to IEC 60947-3, IEC 60947-5-1, VDE 0660, EN 60947-3, SEV

4015082488697

0.120

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

690

276304

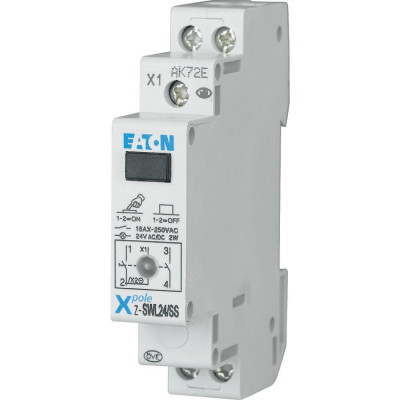

Z-SWL24/SS

Switch with LED, 24AC/DC, 2N/O, 16A, orange, 1HP

Switch with LED, function: 2 N/O, rated operational current 16A, rated operating voltage of the switch 250V AC, rated operating voltage of LED 24V AC/DC, color of pushbutton black, color of the LED orange, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632

4015082763046

0.065

Indicator light for distribution board [ACN367016]

Modular connector [EC001545]

250

276305

Z-SWL24/SO

Switch with LED, 24AC/DC, 1N/O+1N/C, 16A, orange, 1HP

Switch with LED, function: 1 N/O and 1 N/C, rated operational current 16A, rated operating voltage of the switch 250V AC, rated operating voltage of LED 24V AC/DC, color of pushbutton black, color of the LED orange, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632

4015082763053

0.065

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

250

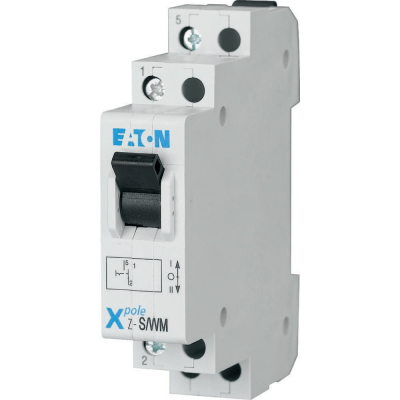

248345

Z-S/WM

Two way switch, p11 CO, 16A, 230 V, 20kA

Changeover switch, function: 1W, I-O-II, rated operational current 16A, rated operating voltage 230/400V AC, short-circuit strength 10kA, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC 60669, VDE 0632

4015082483456

0.063

Main switch for distribution board [AFZ813019]

Modular connector [EC001545]

240
