184206
1/5
Preview
PREVIEW
PLID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Netto weight
NETTO_WEIGHT [kg]
ECLASS-13.0
ECLASS_13_0
ETIM-10.0
ETIM_10_0
Number of contacts normally open [EF008256]
EF008256
1
2
3
184206

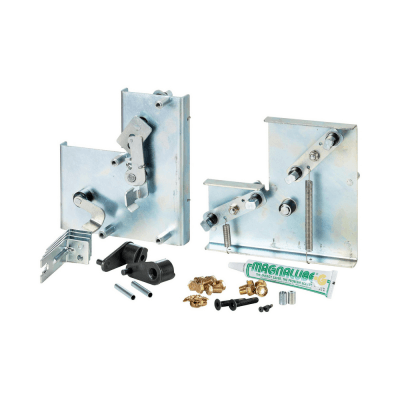

IZMX-MIL2C-F16-1
Mechanical interlock, TYPE 2, bowden cables, F
Accessories, Mechanical interlock, fixed mounting, Type 2, For 2 circuit-breakers with the same or different frame size: interlock: A against B. In addition, an IZMX-MIL-CAB… cable kit with the desired length is required. Select the appropriate part no. for each circuit-breaker., Installation type Fixed, For use with IZMX16…, INX16…
4015081783724
1.43
Mechanic interlock for switch [AKN341018]
Mechanical interlock for switches [EC001044]
0
184207

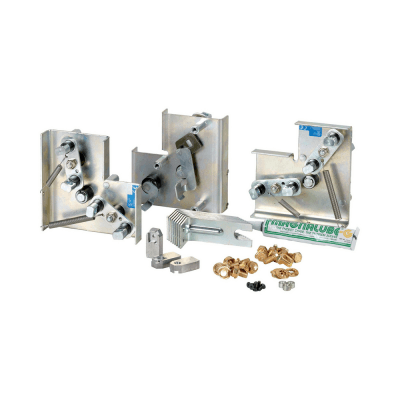

IZMX-MIL3133C-F16-1
Mechanical interlock, TYPE 2, 31, 33, bowden cables, F
Accessories, Mechanical interlock, fixed mounting, Type 33, For 3 circuit-breakers with the same or different frame size: interlock: A, C against B. When B is off, A and C can be switched on. B can be switched on only when A and C are OFF. In addition, two IZMX-MIL-CAB… cable kits with the desired length are required. Select the appropriate part no. for each circuit-breaker., Installation type Fixed, For use with IZMX16…, INX16…
4015081783731
1.91
Mechanic interlock for switch [AKN341018]
Mechanical interlock for switches [EC001044]
0
184208
IZMX-MIL32C-F16-1
Mechanical interlock, TYPE 32, bowden cables, F
Accessories, Mechanical interlock, fixed mounting, Type 32, For 3 circuit-breakers with the same or different frame size: interlock: 2 against 1 / max. 2 ON. Any one or two circuit-breakers can be closed at the same time. In addition, three IZMX-MIL-CAB… cable kits are required. Select the appropriate part no. for each circuit-breaker., Installation type Fixed, For use with IZMX16…, INX16…
4015081783748
1.17
Mechanic interlock for switch [AKN341018]
Mechanical interlock for switches [EC001044]
0
Eaton's CAD - Mechanical interlock for switches [EC001044]
| 订购编码 | 184206 |
| 上次修改 | 03.09.2026 18:12:51 |
| 单位 |
