LV846454
1/5
PREVIEW
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Product number of the Manufacturer
MANUID
Manufacturer Name
MANUNAME
Manufacturer Type Description
MANUTYPEDESC
lowest value for short-time delayed short-circuit release adjustment range
AAB212 [A]
1

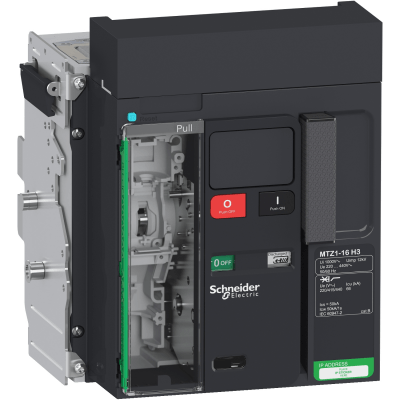

Circuit breaker frame, MasterPact MTZ1 16H3 drawout for MicroLogic X, 1600A, 66kA/415VAC (Icu), 3P
This is a basic frame for 3 poles MasterPact MTZ1 16H3 drawout circuit breaker. MasterPact MTZ is the last generation of high current air circuit breakers up to 6300A embedding advanced digital technologies. MasterPact MTZ is designed to protect electrical systems from damage caused by overloads, short circuits and equipment ground faults. The rated current is 1600A. The maximum operational voltage is 690VAC 50/60Hz. The breaking capacity (Icu) is 66kA rms at 415VAC 50/60Hz. This basic frame is compatible with MicroLogic X control unit which has to be ordered separately. The basic frame must be associated with the corresponding chassis which has also to be ordered separately. With MicroLogic X control unit, MasterPact MTZ contributes to safety and energy efficiency. It can be equipped with a variety of optional functions and accessories. The dimensions are 288mm (W) x 322mm (H) x 291mm (D). MasterPact MTZ circuit breaker is compliant with international standards IEC/EN 60947-1 and IEC/EN 60947-2. MasterPact MTZ and MicroLogic X can be used in EcoStruxure architecture system. MasterPact MTZ is part of the global Schneider environmental data program.
03606481155436
LV846454
Schneider Electric
LV846454
960.000
Schneider Electric - LV846454
| 订购编码 | LV846454 |
| 简短文本 | Circuit breaker frame, MasterPact MTZ1 16H3 drawout for MicroLogic X, 1600A, 66kA/415VAC (Icu), 3P |
| 长文 | This is a basic frame for 3 poles MasterPact MTZ1 16H3 drawout circuit breaker. MasterPact MTZ is the last generation of high current air circuit breakers up to 6300A embedding advanced digital technologies. MasterPact MTZ is designed to protect electrical systems from damage caused by overloads, short circuits and equipment ground faults. The rated current is 1600A. The maximum operational voltage is 690VAC 50/60Hz. The breaking capacity (Icu) is 66kA rms at 415VAC 50/60Hz. This basic frame is compatible with MicroLogic X control unit which has to be ordered separately. The basic frame must be associated with the corresponding chassis which has also to be ordered separately. With MicroLogic X control unit, MasterPact MTZ contributes to safety and energy efficiency. It can be equipped with a variety of optional functions and accessories. The dimensions are 288mm (W) x 322mm (H) x 291mm (D). MasterPact MTZ circuit breaker is compliant with international standards IEC/EN 60947-1 and IEC/EN 60947-2. MasterPact MTZ and MicroLogic X can be used in EcoStruxure architecture system. MasterPact MTZ is part of the global Schneider environmental data program. |
| 上次修改 | 06.02.2026 14:07:43 |
| 单位 |
