LEDVANCE

Luminaires

Batten luminaire

LN UO EM 1200 25 W 4000 K

LEDVANCE

Luminaires

Batten luminaire

LN UO EM 1200 25 W 4000 K

4058075515222

Expand Table

1/5

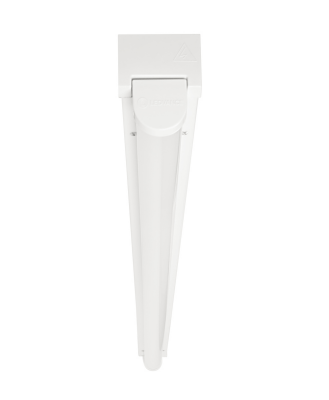

Product picture

PRODUKTBILD

Dimensioned drawing

MASSZEICHNUNG

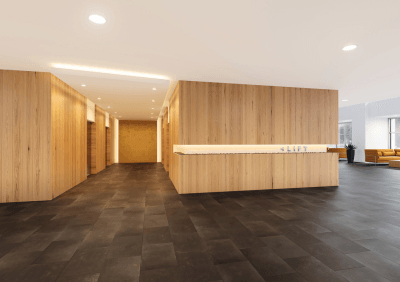

Ambient picture

UMGEBUNGSBILD

Product picture bottom view

PRODUKTBILD_UNTERANSICHT

Product number of the Manufacturer

MANUID

Short Description

DESCSHORT

Long Description

DESCLONG

International product number

GTIN

BUYER_PID

Manufacturer Name

MANUNAME

Manufacturer Type Description

MANUTYPEDESC

SPECIAL_TREATMENT_CLASS

4058075515222

LINEAR ULTRA OUTPUT EMERGENCY GEN 1 1200 25 W 4000 K

Surface luminaire with high luminous flux and integrated emergency lighting function. Product features: Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014). Luminaire suitable for normal lighting and emergency lighting. Self-contained luminaires. Emergency lighting function: battery discharge time of 3 h. Function test of emergency lighting: automatic (AT). Battery technology: LiFePO4. Very high luminous efficacy: up to 125 lm/W. Robust metal housing and PC diffusor. Wiring at back side of luminaire. Through wiring possible. Product benefits: Seamless integration of luminaires with emergency lighting function into general lighting. Easy wiring thanks to included prewired driver and battery for Emergency lighting function. Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function. Convenient visualization of results of automatic test with an included control LED. Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time. High luminous efficacy in normal operation. Replacement of conventional T8 luminaires with up to 7100 lm. Energy savings up to 60 % (compared to luminaires that use fluorescent lamps). Robust structure with IK08. 3 years guarantee. Areas of application: Emergency illumination of escape routes. Antipanic lighting. Buildings requiring up to 3 h emergency light operation. Direct replacement for luminaires with fluorescent lamps. Indoor applications. Industrial and commercial halls. Public areas. Corridors, stairwells, basements. Equipment / Accessories: Mounting screws and dowels included.

4058075515222

LN UO 1200 25W/

LEDVANCE GmbH

LN UO EM 1200 25 W 4000 K

NONE

显示压缩表示形式 (1 Produkt)

订购编码	4058075515222
Shorttext	LINEAR ULTRA OUTPUT EMERGENCY GEN 1 1200 25 W 4000 K
Longtext	Surface luminaire with high luminous flux and integrated emergency lighting function. Product features: Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014). Luminaire suitable for normal lighting and emergency lighting. Self-contained luminaires. Emergency lighting function: battery discharge time of 3 h. Function test of emergency lighting: automatic (AT). Battery technology: LiFePO4. Very high luminous efficacy: up to 125 lm/W. Robust metal housing and PC diffusor. Wiring at back side of luminaire. Through wiring possible. Product benefits: Seamless integration of luminaires with emergency lighting function into general lighting. Easy wiring thanks to included prewired driver and battery for Emergency lighting function. Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function. Convenient visualization of results of automatic test with an included control LED. Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time. High luminous efficacy in normal operation. Replacement of conventional T8 luminaires with up to 7100 lm. Energy savings up to 60 % (compared to luminaires that use fluorescent lamps). Robust structure with IK08. 3 years guarantee. Areas of application: Emergency illumination of escape routes. Antipanic lighting. Buildings requiring up to 3 h emergency light operation. Direct replacement for luminaires with fluorescent lamps. Indoor applications. Industrial and commercial halls. Public areas. Corridors, stairwells, basements. Equipment / Accessories: Mounting screws and dowels included.
上次修改	11.12.2025 15:02:00
单位

关键字

分类

CNS

CNSERPBASE Object Properties

Customs Tariff Number	94051190
Description long	Surface luminaire with high luminous flux and integrated emergency lighting function. Product features: Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014). Luminaire suitable for normal lighting and emergency lighting. Self-contained luminaires. Emergency lighting function: battery discharge time of 3 h. Function test of emergency lighting: automatic (AT). Battery technology: LiFePO4. Very high luminous efficacy: up to 125 lm/W. Robust metal housing and PC diffusor. Wiring at back side of luminaire. Through wiring possible. Product benefits: Seamless integration of luminaires with emergency lighting function into general lighting. Easy wiring thanks to included prewired driver and battery for Emergency lighting function. Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function. Convenient visualization of results of automatic test with an included control LED. Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time. High luminous efficacy in normal operation. Replacement of conventional T8 luminaires with up to 7100 lm. Energy savings up to 60 % (compared to luminaires that use fluorescent lamps). Robust structure with IK08. 3 years guarantee. Areas of application: Emergency illumination of escape routes. Antipanic lighting. Buildings requiring up to 3 h emergency light operation. Direct replacement for luminaires with fluorescent lamps. Indoor applications. Industrial and commercial halls. Public areas. Corridors, stairwells, basements. Equipment / Accessories: Mounting screws and dowels included.
Description short	LINEAR ULTRA OUTPUT EMERGENCY GEN 1 1200 25 W 4000 K
GTIN-Code	4058075515222
Order Number	4058075515222

ECLASS 14.0

27-11-03-22 荧光灯条

ECLASS 13.0

27-11-03-22 Fluorescent batten

protection class	I
宽度	62.00 mm
插座说明	None
connection type of process connection	Push-in clamp
机架颜色	White
电压类型	AC
移动信号机	false
type of gear	Electronic ballast
色彩真实度	80-89
switch present	false
极数	4
长度	1168.00 mm
高度	74.00 mm
材料	Steel
辐射源说明	LED not exchangeable
electrical connection connector system present	false
suitable for emergency lighting	true
最大额定电压	220, 240 V
最小额定电压	220, 240 V
保护方式IP	IP20
照明灯（是/否）	true
fire resistance D	false
covering the luminaire with thermal insulation material possible	false
suitable for max. number of lamps	0
control unit included	true
max. colour temperature	4000, 4000 K
min. colour temperature	4000, 4000 K
type of circuit	Suitable for through wiring
rated life time (L70/B50 at 25 °C)	50000 h
type of dimming	false
light distributor	Diffuser lens/optic/panel

ETIM 10.0

EC000109 Batten luminaire

Protection class	I
Width	62.00 mm
Lamp holder	None
Connection type	Push-in clamp
Housing colour	White
Voltage type	AC
With movement sensor	false
Type of control gear	Electronic ballast
Colour rendering index CRI	80-89
With switch	false
Number of poles	4
Length	1168.00 mm
Height/depth	74.00 mm
Material	Steel
Lamp type	LED not exchangeable
Electrical connection with connector system	false
Suitable for emergency lighting	true
Nominal voltage	220, 240 V
Degree of protection (IP)	IP20
With light source	true
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	false
Covering of the luminaire with thermally insulating material possible	false
Suitable for number of light sources	0
With control gear	true
Nominal current	115, 115 A
Colour temperature	4000, 4000 K
Max. system power	25.00 W
Rated luminous flux according to IEC 62722-2- 1	2950 lm
Constant light output (CLO)	false
IFTTT support available	true
Type of wiring	Suitable for through wiring
Rated life time L70/B50 at 25 °C	50000 h
Dimming 0-10 V	false
Dimming 1-10 V	false
Dimming DALI	false
Dimming DMX	false
Dimming potentiometer (integrated)	false
Dimming LineSwitch	false
Dimming manufacturer's proprietary system	false
Dimming mains voltage modulation	false
Dimming phase cut-off	false
Dimming phase cut-on	false
Dimming programmable	false
Dimming RF	false
Dimming Sine Wave Reduction	false
Dimming Touch and Dim	false
Dimming Zigbee	false
Dimming with push-button	false
Light distributor	Diffuser lens/optic/panel
Luminaire efficacy	120 lm/W
Dimming DSI	false
Operation by Bluetooth	false
Compatible with Apple HomeKit	false
Compatible with Google Assistant	false
Compatible with Amazon Alexa	false
Colour of light adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	false
Power factor	0.90

ETIM 9.0

EC000109 Batten luminaire

Protection class	I
Width	62.00 mm
Lamp holder	None
Connection type	Push-in clamp
Housing colour	White
Voltage type	AC
With movement sensor	false
Type of control gear	Electronic ballast
Colour rendering index CRI	80-89
With switch	false
Number of poles	4
Length	1168.00 mm
Height/depth	74.00 mm
Material	Steel
Lamp type	LED not exchangeable
Electrical connection with connector system	false
Suitable for emergency lighting	true
Nominal voltage	220, 240 V
Emergency power supply integrated	true
Degree of protection (IP)	IP20
With light source	true
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	false
Covering of the luminaire with thermally insulating material possible	false
Suitable for number of light sources	0
With control gear	true
Nominal current	115, 115 A
Colour temperature	4000, 4000 K
Max. system power	25.00 W
Rated luminous flux according to IEC 62722-2-1	2950 lm
Constant light output (CLO)	false
IFTTT support available	true
Type of wiring	Suitable for through wiring
Rated life time L70/B50 at 25 °C	50000 h
Dimming 0-10 V	false
Dimming 1-10 V	false
Dimming DALI	false
Dimming DMX	false
Dimming potentiometer (integrated)	false
Dimming LineSwitch	false
Dimming manufacturer's proprietary system	false
Dimming mains voltage modulation	false
Dimming phase cut-off	false
Dimming phase cut-on	false
Dimming programmable	false
Dimming RF	false
Dimming Sine Wave Reduction	false
Dimming Touch and Dim	false
Dimming Zigbee	false
Dimming with push-button	false
No dim function	true
Light distributor	Diffuser lens/optic/panel
Luminaire efficacy	120 lm/W
Dimming DSI	false
Operation by Bluetooth	false
Compatible with Apple HomeKit	false
Compatible with Google Assistant	false
Compatible with Amazon Alexa	false
Colour of light adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	false
Power factor	0.90
