216568
1/5
Preview
PREVIEW
PLID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Netto weight
NETTO_WEIGHT [kg]
ECLASS-13.0
ECLASS_13_0
ETIM-10.0
ETIM_10_0
Integrated transformer [EF001358]
EF001358
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
216557
M22-LED-W
LED element, white, front mount, 12-30VAC/DC
LED element, Fixing: Front fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz V, Rated operational current: Ie= 8 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Color: White, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082165574
0.011
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE
115968
M22-SWD-LED-G
LED element, for combination with RMQ-Titan operating elements M22-..., Front fixing green
LED element, Fixing: Front fixing, Connection to SmartWire-DT: yes
4015081157082
0.009
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE
216559
M22-LED-G
LED element, green, front mount, 12-30VAC/DC
LED element, Fixing: Front fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz V, Rated operational current: Ie= 8 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082165598
0.011
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE

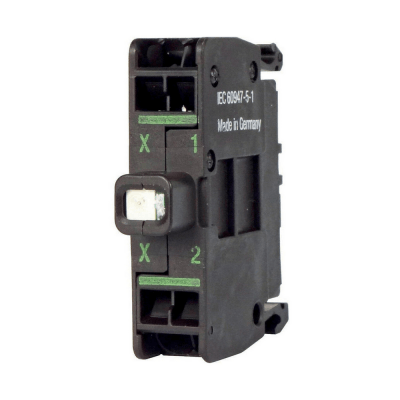

218061
M22-CLED-B
Light element, LED, blue, front mount, 12-30VAC/DC, spring clamp connection
LED element, Fixing: Front fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz V, Rated operational current: Ie= 8 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082180614
0.010
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE

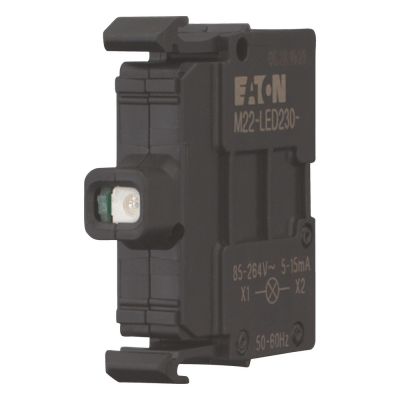

216563
M22-LED230-W
LED element, white, front mount, 85-264VAC
LED element, Fixing: Front fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Color: White, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082165635
0.011
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE

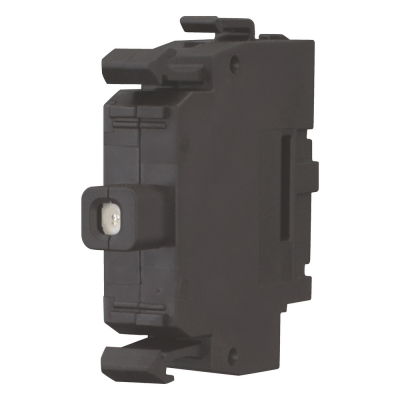

115967
M22-SWD-LED-B
LED element, for combination with RMQ-Titan operating elements M22-..., Front fixing, blue
LED element, Fixing: Front fixing, Connection to SmartWire-DT: yes
4015081157075
0.009
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE

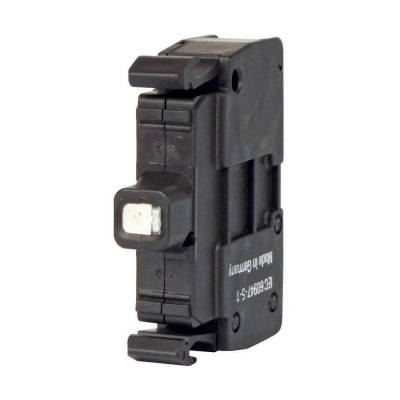

216562
M22-LEDC-G
LED element, green, base fixing, 12-30VAC/DC
LED element, Fixing: Base fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz V, Rated operational current: Ie= 8 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082165628
0.011
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE
216577
M22-CLED230-G
LED element, green, front mount, cage clamp
LED element, Fixing: Front fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082165772
0.010
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE
216560
M22-LEDC-W
LED element, white, base fixing, 12-30VAC/DC
LED element, Fixing: Base fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz V, Rated operational current: Ie= 8 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Color: White, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082165604
0.011
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE

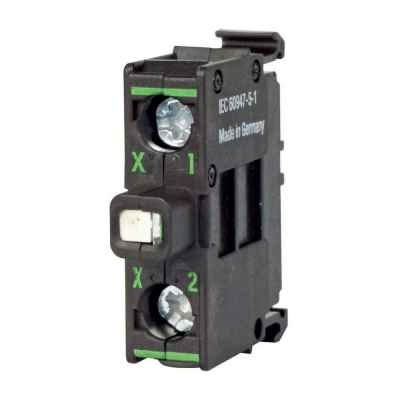

218057
M22-LED-B
Light element, LED, blue, front mount, 12-30VAC/DC, screw connection
LED element, Fixing: Front fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz V, Rated operational current: Ie= 8 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082180577
0.011
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE
216568
M22-LEDC230-G
LED element, green, base fixing, 85-264VAC
LED element, Fixing: Base fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082165680
0.011
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE
218060
M22-LEDC230-B
Light element, LED, blue, base fixing, 85-264VAC, screw connection
LED element, Fixing: Base fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082180607
0.011
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE
216565
M22-LED230-G
LED element, green, front mount, 85-264VAC
LED element, Fixing: Front fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082165659
0.011
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE
218062
M22-CLEDC-B
Light element, LED, blue, base fixing, 12-30VAC/DC, spring clamp connection
LED element, Fixing: Base fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz V, Rated operational current: Ie= 8 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082180621
0.010
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE
216564
M22-LED230-R
LED element, red, front mount, 85-264VAC
LED element, Fixing: Front fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082165642
0.011
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE
216579
M22-CLEDC230-R
LED element, red, base fixing, cage clamp
LED element, Fixing: Base fixing, Connection technique: Cage Clamp, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082165796
0.010
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE
216558
M22-LED-R
LED element, red, front mount, 12-30VAC/DC
LED element, Fixing: Front fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz V, Rated operational current: Ie= 8 - 15 mA, Power consumption: Pmax.= 0.26 W, at 24 V, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082165581
0.011
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE
216566
M22-LEDC230-W
LED element, white, base fixing, 85-264VAC
LED element, Fixing: Base fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Color: White, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
4015082165666
0.011
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE

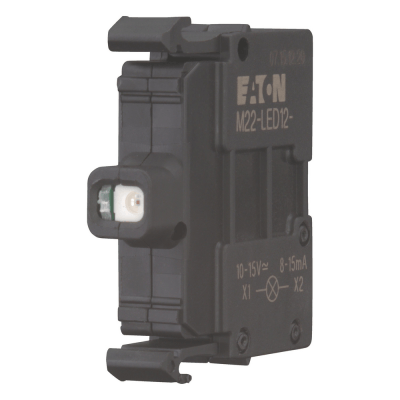

279389
M22-LED12-R
Illuminated element, LED, red, front mount, 12 V
LED element, Rated operational current: Ie= - 15 mA, Connection to SmartWire-DT: no
4015082793890
0.011
Bulb socket block for command and alarm devices [AKF027019]
Lamp holder contact block for control devices [EC000204]
FALSE
