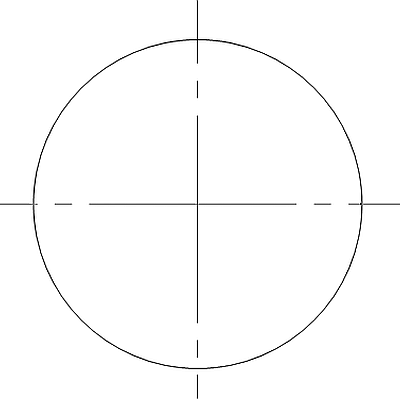

KS2-10-10
1/5
Size
SIZE
Torque
TKN [Nm]
Total length
L1 [mm]
Outside diameter
A [mm]
Keyway (DIN 6885)
N
Bore diameter ØH7
D1 [mm]
Bore diameter ØH7
D2 [mm]
Hub diameter
DN [mm]
Basic dimension
L2 [mm]
Air gap
L3 [mm]
Hub length
LN [mm]
Basic dimension
K [mm]
Basic dimension
H [mm]
Screw (ISO 4762)
S
Installation torque per screw
TA [Nm]
Mass moment of inertia
J [kg cm²]
max. speed
NMAX [1/min]
Mass
M [kg]
Material
MAT1
1
2
3
4
2
2.5
29.8
84
10.0
10.0
45
9.3
5
20.5
5.75
17.5
M5
11
7.5
13500
0.3
Steel
10
11
29.8
100
10.0
10.0
45
9.3
5
20.5
5.75
17.5
M5
11
7.9
11000
0.7
Steel
15
17
34.0
124
10.0
10.0
54
9.5
5
24.5
7.50
20.0
M6
19
10.2
9100
1.2
Steel
25
33
34.8
144
10.0
10.0
54
10.3
5
24.5
7.50
20.0
M6
19
10.6
7500
1.6
Steel
RINGSPANN StS - KS
| 简短文本 | Magnetic Coupling - Magnetic Disk Coupling |
| 上次修改 | 07.07.2025 11:22:40 |
| 单位 |
