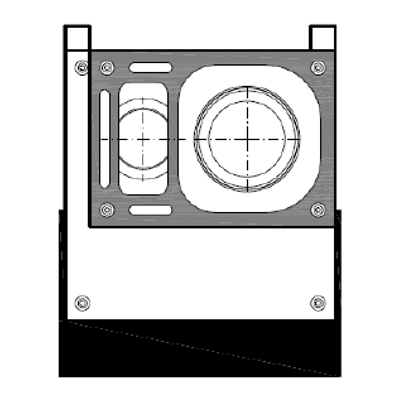

KF GRANDE SC (H2860)
1/5
Material
MAT
EAN/UPC-Code
EAN
Shorttext
SAP
A1
A1 [mm]
A2
A2 [mm]
B
B [mm]
C
C [mm]
X
X [mm]
Y
Y [mm]
Z
Z [mm]
Nominal length
NL [mm]
Rearwall insulation 50mm
RI
Sidewall insulation 150mm
SI
Increased concrete base
S
Position
POS
Plaster
PU
1
2
990000733
4051921724496
KF GRANDE SC (H2860)
550
600
2860
2152
362
629
1364
2860
Active ventilation
without Sidewall insulation
without Increase in elevation
without plaster
990000733
4051921724496
KF GRANDE SC (H2960)
550
600
2960
2152
362
629
1364
2960
Active ventilation
without Sidewall insulation
without Increase in elevation
without plaster
Schiedel - KF GRANDE SC
