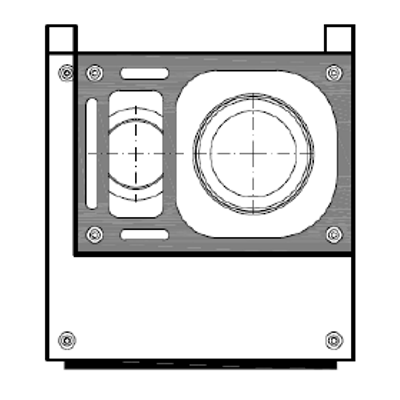

KF CLASSICO S (H2740)
1/5
Material
MAT
EAN/UPC-Code
EAN
Shorttext
SAP
A1
A1 [mm]
A2
A2 [mm]
B
B [mm]
C
C [mm]
X
X [mm]
Nominal length
NL [mm]
Rearwall insulation 50mm
RI
Sidewall insulation 150mm
SI
Increased concrete base
S
Position
POS
Plaster
PU
1
2
3
4
990000391
4051921597854
KF CLASSICO S (H2640)
550
600
2640
1930
268
2640
without rearwall insulation, without concrete strips
without Sidewall insulation
without Increase in elevation
No
990000391
4051921597854
KF CLASSICO S (H2740)
550
600
2740
1930
268
2740
without rearwall insulation, without concrete strips
without Sidewall insulation
without Increase in elevation
No
990000391
4051921597854
KF CLASSICO S (H2860)
550
600
2860
2150
268
2860
without rearwall insulation, without concrete strips
without Sidewall insulation
without Increase in elevation
No
990000391
4051921597854
KF CLASSICO S (H2960)
550
600
2960
2150
268
2960
without rearwall insulation, without concrete strips
without Sidewall insulation
without Increase in elevation
No
Schiedel - KF CLASSICO S
