284930
1/5
Preview
PREVIEW
PLID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Netto weight
NETTO_WEIGHT [kg]
ECLASS-13.0
ECLASS_13_0
ETIM-10.0
ETIM_10_0
Recess depth [EF000218]
EF000218 [mm]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
284923

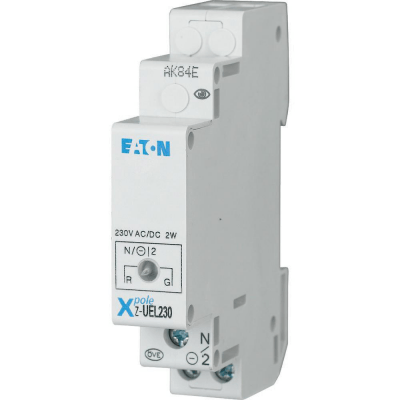

Z-UEL230
Single light, 230AC/DC, red/green
Multipurpose single light convertible, LED rated operating voltage 230V AC/DC, LED color red/green, luminosity 15mcd, heat dissipation 2W/LED, flashing frequency norm. 2 Hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
4015082849238
0.065
Indicator light for distribution board [ACN367016]
Indicator light for distribution board [EC001657]
60
284924

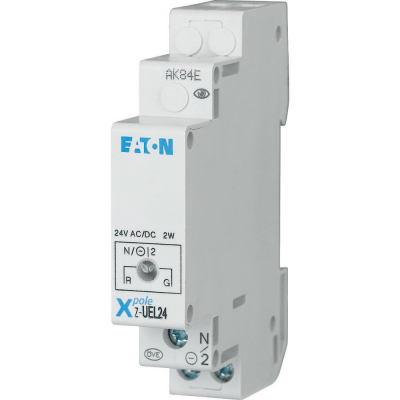

Z-UEL24
Single light, 24AC/DC, red/green
Multipurpose single light convertible, LED rated operating voltage 24V AC/DC, LED color red/green, luminosity 15mcd, heat dissipation 2W/LED, flashing frequency norm. 2 Hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
4015082849245
0.065
Indicator light for distribution board [ACN367016]
Indicator light for distribution board [EC001657]
60
284922

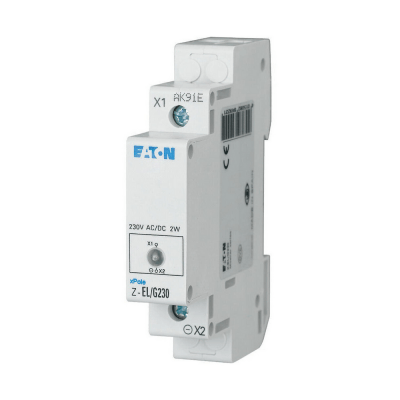

Z-EL/G230
Single light, 230V AC/DC, green
Single light, LED rated operating voltage 230V AC/DC, LED color green, luminosity 15mcd, heat dissipation 2W/LED, flashing frequency norm. 2 Hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
4015082849221
0.055
Indicator light for distribution board [ACN367016]
Indicator light for distribution board [EC001657]
60
284921

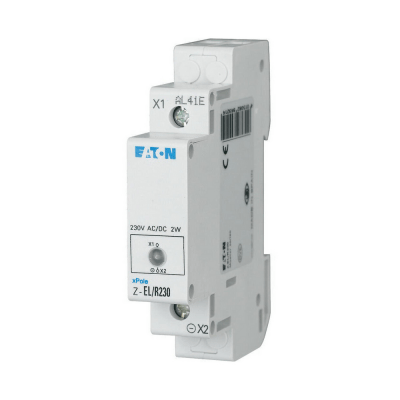

Z-EL/R230
Single light, 230AC/DC, red
Single light, LED rated operating voltage 230V AC/DC, LED color red, luminosity 15mcd, heat dissipation 2W/LED, flashing frequency norm. 2 Hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
4015082849214
0.055
Indicator light for distribution board [ACN367016]
Indicator light for distribution board [EC001657]
60
275865
Z-EL/OR230
Single light, 230AC/DC, orange
Single light, LED rated operating voltage 230V AC/DC, LED color orange, luminosity 15mcd, heat dissipation 2W/LED, flashing frequency norm. 2 Hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
4015082758653
0.055
Indicator light for distribution board [ACN367016]
Indicator light for distribution board [EC001657]
60
284925

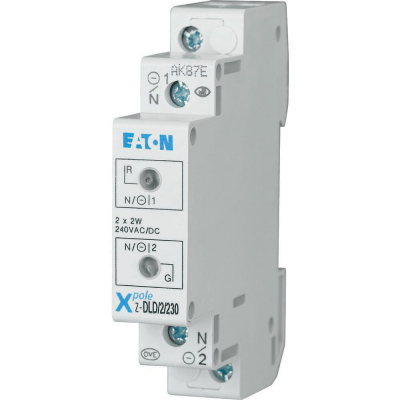

Z-DLD/2/230
Twin light, 230V AC/DC, red/green
Twin light, LED rated operating voltage 230V AC/DC, LED color red + green, luminosity 15mcd, heat dissipation 2W/LED, flashing frequency norm. 2 Hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
4015082849252
0.065
Indicator light for distribution board [ACN367016]
Indicator light for distribution board [EC001657]
60
284930
Z-BEL/G230
Single light, 230AC/DC, green
Single lamp with integrated flashing function, LED rated operating voltage 230V AC/DC, LED color green, luminosity 15mcd, heat dissipation 2W/LED, flashing frequency norm. 2 Hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
4015082849306
0.065
Indicator light for distribution board [ACN367016]
Indicator light for distribution board [EC001657]
60
275444

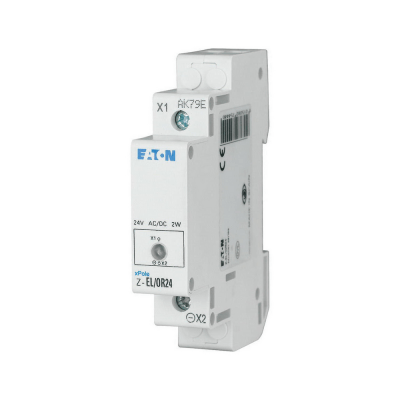

Z-EL/OR24
Single light, 24AC/DC, orange
Single light, LED rated operating voltage 24V AC/DC, LED color orange, luminosity 15mcd, heat dissipation 2W/LED, flashing frequency norm. 2 Hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
4015082754440
0.055
Indicator light for distribution board [ACN367016]
Indicator light for distribution board [EC001657]
60
284928
Z-UDL24
Twin light, 24AC/DC, red/green
Multipurpose twin light convertable, LED rated operating voltage 24V AC/DC, LED color red/green, luminosity 15mcd, heat dissipation 2W/LED, flashing frequency norm. 2 Hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
4015082849283
0.065
Indicator light for distribution board [ACN367016]
Indicator light for distribution board [EC001657]
60
103131
Z-EL/BL230
Single light, 230AC/DC, blue
Single light, LED rated operating voltage 230V AC/DC, LED color blue, luminosity 15mcd, heat dissipation 2W/LED, flashing frequency norm. 2 Hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
4015081029907
0.055
Indicator light for distribution board [ACN367016]
Indicator light for distribution board [EC001657]
60
284932
Z-BEL/G24
Single light, 24AC/DC, green
Single lamp with integrated flashing function, LED rated operating voltage 24V AC/DC, LED color green, luminosity 15mcd, heat dissipation 2W/LED, flashing frequency norm. 2 Hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
4015082849320
0.065
Indicator light for distribution board [ACN367016]
Indicator light for distribution board [EC001657]
60
284927
Z-UDL230
Twin light, 230AC/DC, red/green
Multipurpose twin light convertable, LED rated operating voltage 230V AC/DC, LED color red/green, luminosity 15mcd, heat dissipation 2W/LED, flashing frequency norm. 2 Hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
4015082849276
0.065
Indicator light for distribution board [ACN367016]
Indicator light for distribution board [EC001657]
60
284931
Z-BEL/R24
Single light, 24AC/DC, red
Single lamp with integrated flashing function, LED rated operating voltage 24V AC/DC, LED color red, luminosity 15mcd, heat dissipation 2W/LED, flashing frequency norm. 2 Hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
4015082849313
0.065
Indicator light for distribution board [ACN367016]
Indicator light for distribution board [EC001657]
60
284926

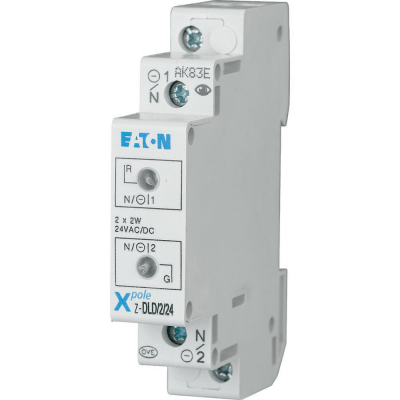

Z-DLD/2/24
Twin light, 24AC/DC, red/green
Twin light, LED rated operating voltage 24V AC/DC, LED color red + green, luminosity 15mcd, heat dissipation 2W/LED, flashing frequency norm. 2 Hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
4015082849269
0.065
Indicator light for distribution board [ACN367016]
Indicator light for distribution board [EC001657]
60
Eaton's CAD - Indicator light for distribution board [EC001657]
| 订购编码 | 284930 |
| 上次修改 | 03.09.2026 18:12:50 |
| 单位 |
分类
