116896

NZM2-XHB-DAR

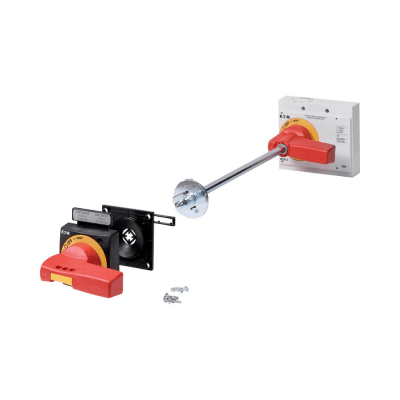

Main switch assembly kit, +additional handle red, size 2

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Door coupling rotary handle with rotary drive. Add-on rotary handle on switch with “Deliberate Action” operation. Extension shaft NZM..-XV6 for mounting depth 600 mm, extension shaft NZM1/2-XV4 with NZM1 for mounting depth 400 mm. External warning plate/marking plate in German/English. Black and yellow lightning symbol. External warning plate/marking plate can be clipped on . For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger. With red door coupling rotary handle for use of switch as emergency switching off device. Lockable on the 0 position on the handle using up to 3 padlocks. Lockable on the switch in the 0 position. With door interlock. Can be used for: NZM2(-4), PN2(-4), N(N/O)2(-4)

4015081166367

0.806

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Red

260144

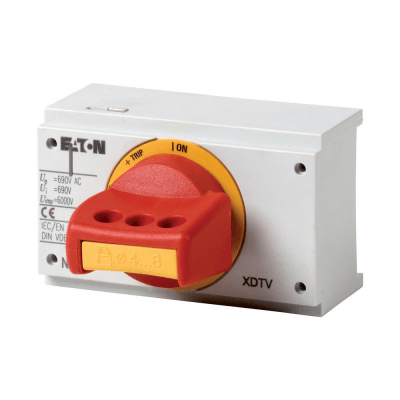

NZM2-XDTVR

Rotary handle, red-yellow, lockable on the handle, size 2

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: complete with rotary drive and insulating surround. Red/yellow for EMERGENCY-SHUTDOWN. Lockable on the 0 position on the handle using up to 3 padlocks. Also available with door interlock e.g. for MCC service distribution. Door interlock in ON position, can be defeated from the outside using a 1 mm pin. Not defeated in the locked OFF and ON positions. Door can be opened in OFF, can only be switched ON when the door is closed . Can be used for: NZM2(-4), PN2(-4), N(N/O)2(-4)

4015082601447

0.482

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Red

100669

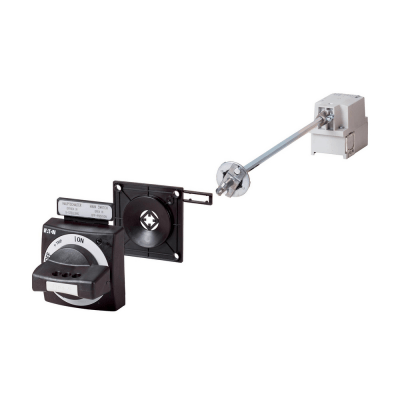

NZM3-XTVDV-60-NA

Door coupling rotary handle, black, lockable, max 60mm shaft, size 3

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Complete including rotary drive and coupling parts. Extension shaft additionally required. Cannot be combined with mechanical interlock For maximal shaft length 60mm without shaft support, cannot be combined with NZM...-XDZ additional handle. External warning plate/marking plate can be clipped on. Default, black/grey. Lockable on the handle on the switch using up to 3 padlocks . Lockable in 0 position on handle, lockable on the 0 position on the switch using up to 3 padlocks. Can also be modified in I position. With door interlock. Door interlock not defeated in the locked OFF position. Door opens only with active rotation beyond the 0 position. Can be modified such that it can be defeated from the outside using a screwdriver. Can be used for: NZM3, N(S)3

4015081005697

1.470

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Black

266627

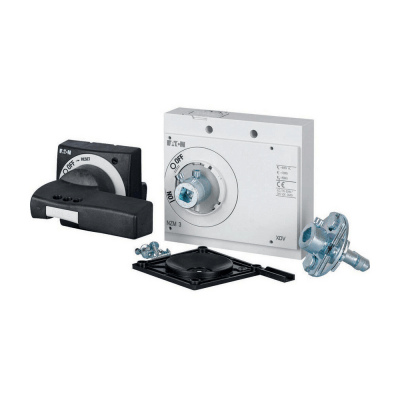

NZM2-XHB

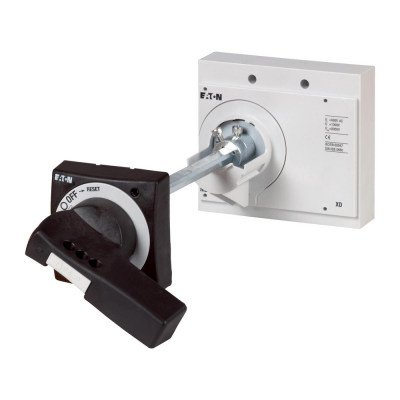

Main switch assembly kit, handle black, size 2

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Door coupling rotary handle with rotary drive. Extension shaft NZM..-XV4. External warning plate/marking plate in German/English, black and yellow flash. External warning plate/marking plate can be clipped on. For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger. With black door coupling rotary handle . Lockable on the 0 position on the handle using up to 3 padlocks, can also be modified in I position. With door interlock. Can be used for: NZM2(-4), PN2(-4), N(N/O)2(-4)

4015082666279

0.906

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Black

172531

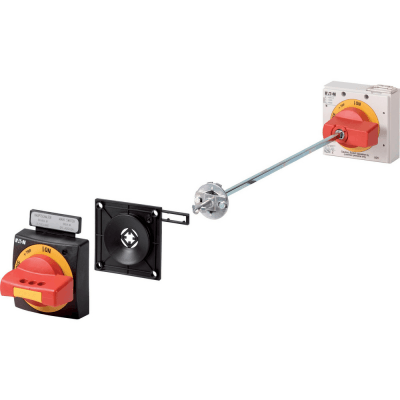

NZM2-XTVDKLR

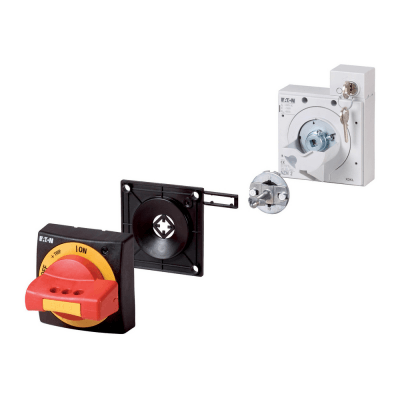

Door coupling rotary handle, red-yellow, +key lock, size 2

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple.

4015081690770

0.787

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Black

155505

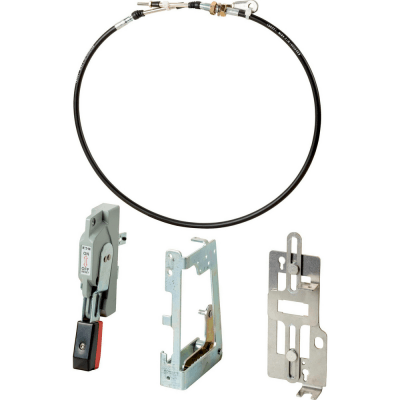

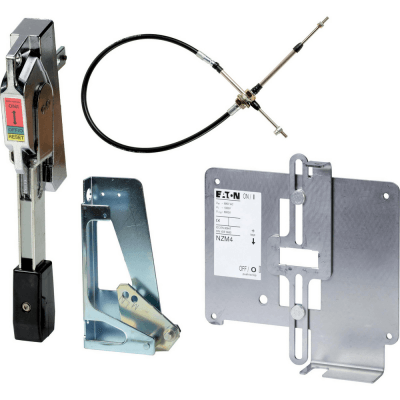

NZM4-XSH-12-72-NA

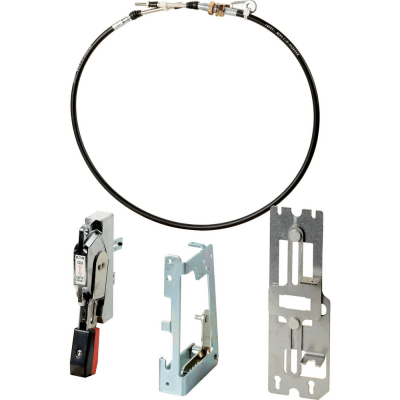

Side mounted handle, kit, type 12 72z, size 4, UL

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple.

4015081522057

4.700

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Black

155508

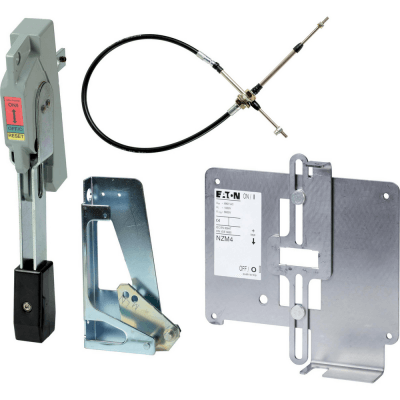

NZM4-XSH-4X-72-NA

Side mounted handle, kit, type 4X 72z, size 4, UL

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple.

4015081522088

4.700

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Black

100670

NZM4-XTVDV-60-NA

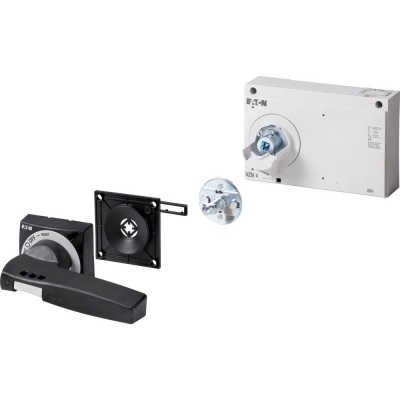

Door coupling rotary handle, black, lockable, max 60mm shaft, size 4

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Complete including rotary drive and coupling parts. Extension shaft additionally required. Cannot be combined with mechanical interlock For maximal shaft length 60mm without shaft support, cannot be combined with NZM...-XDZ additional handle. External warning plate/marking plate can be clipped on. Default, black/grey. Lockable on the handle on the switch using up to 3 padlocks . Lockable in 0 position on handle, lockable on the 0 position on the switch using up to 3 padlocks. Can also be modified in I position. With door interlock. Door interlock not defeated in the locked OFF position. Door opens only with active rotation beyond the 0 position. Can be modified such that it can be defeated from the outside using a screwdriver. Can be used for: NZM4, N(S)4

4015081005703

1.780

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Black

100031

NZM1-XSR-R-S4803

Main switch assembly kit lateral right red

4015081000210

0.835

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

-

155482

NZM2-XSH-12-48-NA

Side mounted handle, kit, type 12 48z, size 2, UL

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple.

4015081521821

3.500

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Black

289814

NZM1-XSF-R

Main switch assembly kit, on the right side, frontally actuated

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple.

4015082898144

0.835

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Black

271505

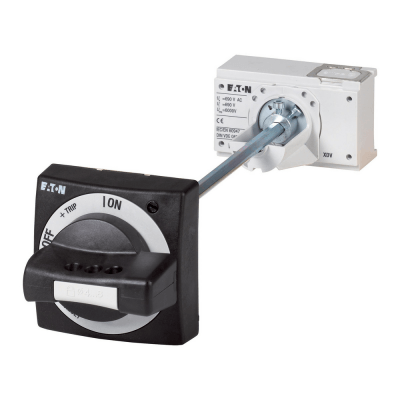

NZM2-XTVD-60

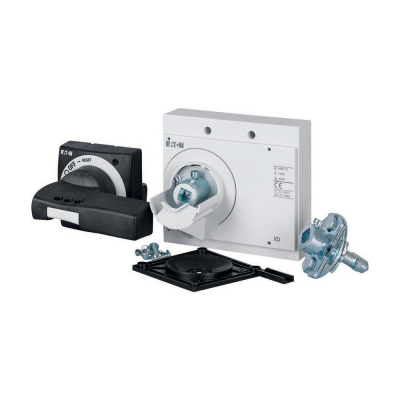

Door coupling rotary handle, black, max 60mm shaft, size 2

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Complete including rotary drive and coupling parts. Extension shaft additionally required. For maximal shaft length 60mm without shaft support, cannot be combined with NZM...-XDZ additional handle. External warning plate/marking plate can be clipped on. Default, black/grey. Lockable on the 0 position on the handle using up to 3 padlocks. With door interlock. Can be used for: NZM2(-4), PN2(-4), N(N/O)2(-4)

4015082715052

0.749

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Black

119001

NZM3-XHB-DAR-NA

Main switch assembly kit, +additional handle red, size 3, NA type

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Door coupling rotary handle with rotary drive. Add-on rotary handle on switch with “Deliberate Action” operation. Extension shaft NZM..-XV6 for mounting depth 600 mm, extension shaft NZM1/2-XV4 with NZM1 for mounting depth 400 mm. External warning plate/marking plate in German/English. Black and yellow lightning symbol. External warning plate/marking plate can be clipped on . For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger. With red door coupling rotary handle for use of switch as emergency switching off device. Lockable on the 0 position on the handle using up to 3 padlocks. Lockable on the switch in the 0 position. With door interlock. Can be used for: NZM3(-4), PN3(-4), N(N/O)3(-4)

4015081171286

2.700

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Red

271506

NZM3-XTVD-60

Door coupling rotary handle, black, max 60mm shaft, size 3

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Complete including rotary drive and coupling parts. Extension shaft additionally required. For maximal shaft length 60mm without shaft support, cannot be combined with NZM...-XDZ additional handle. External warning plate/marking plate can be clipped on. Default, black/grey. Lockable on the 0 position on the handle using up to 3 padlocks. With door interlock. Can be used for: NZM3(-4), PN3(-4), N(N/O)3(-4)

4015082715069

1.363

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Black

155502

NZM3-XSH-4X-84-NA

Side mounted handle, kit, type 4X 84z, size 3, UL

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple.

4015081522026

3.500

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Black

271508

NZM1-XTVDV-60

Door coupling rotary handle, black, lockable on the handle+switch, size 1

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Complete including rotary drive and coupling parts. Extension shaft additionally required. For maximal shaft length 60mm without shaft support, cannot be combined with NZM...-XDZ additional handle. External warning plate/marking plate can be clipped on. Default, black/grey. Lockable on the handle on the switch using up to 3 padlocks. Lockable in 0 position on handle, lockable on the 0 position on the switch using up to 3 padlocks . Can also be modified in I position. With door interlock. Can be used for: NZM1(-4), PN1(-4), N(N/O)1(-4)

4015082715083

0.510

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Black

271507

NZM4-XTVD-60

Door coupling rotary handle, black, max 60mm shaft, size 4

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Complete including rotary drive and coupling parts. Extension shaft additionally required. For maximal shaft length 60mm without shaft support, cannot be combined with NZM...-XDZ additional handle. External warning plate/marking plate can be clipped on. Default, black/grey. Lockable on the 0 position on the handle using up to 3 padlocks. With door interlock. Can be used for: NZM4(-4), N(N/O)4(-4)

4015082715076

1.650

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Black

155507

NZM4-XSH-4X-48-NA

Side mounted handle, kit, type 4X 48z, size 4, UL

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple.

4015081522071

4.300

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Black

172528

NZM1-XTVDKL

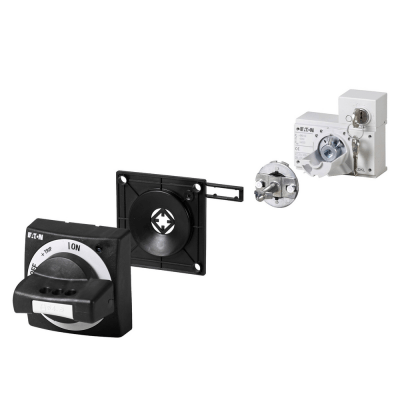

Door coupling rotary handle, black, +key lock, size 1

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple.

4015081690749

0.635

Handle for switch devices [AKF012019]

Handle for power circuit breaker [EC000229]

Black
