IFAK080050w
1/5
Manufacturer
FIRMA
Article Number
ARTNR
Description short text
DESCSHORT
Field of use
AW
Fire resistance class
FK
LOD Level
LODLEVEL
Preview picture
VORSCHAUBILD
Outer width (BA)
BA [mm]
External height (HA)
HA [mm]
Length (L)
L [mm]
1
2
3
4
5
6
7
8
9
10
11
12
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAK030030v
Instafix® BKI end cap 30 x 30 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
28.4
28.4
30
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAK030030w
Instafix® BKI end cap 30 x 30 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
28.4
28.4
30
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAK040040v
Instafix® BKI end cap 40 x 40 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
38.4
38.4
30
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAK040040w
Instafix® BKI end cap 40 x 40 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
38.4
38.4
30
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAK080050v
Instafix® BKI end cap 80 x 50 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
72.8
46.8
30
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAK080050w
Instafix® BKI end cap 80 x 50 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
72.8
46.8
30
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAK200050v
Instafix® BKI end cap 200 x 50 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
192.8
46.8
30
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAK200050w
Instafix® BKI end cap 200 x 50 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
192.8
46.8
30
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAK260100v

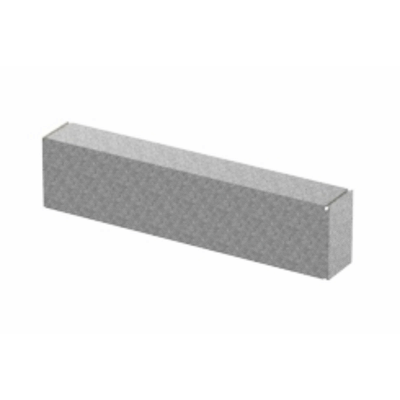

Instafix® BKI end cap 260 x 100 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
252.8
96.8
30
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAK260100w

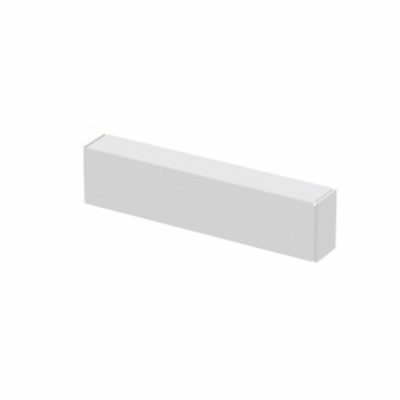

Instafix® BKI end cap 260 x 100 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
252.8
96.8
30
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAK400120v
Instafix® BKI end cap 400 x 120 mm, galvanized
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
392.8
116.8
30
Wichmann Brandschutzsysteme GmbH & Co. KG
IFAK400120w
Instafix® BKI end cap 400 x 120 mm, pure white
Direct or suspended mounting of the Instafix BKI duct on the wall and/or ceiling
I90
400
392.8
116.8
30
Wichmann - Graduation cap
| 订购编码 | IFAK080050w |
| 简短文本 | Electrical installation duct |
| 上次修改 | 07.05.2024 09:49:22 |
| 单位 |
分类
