Pepperl+Fuchs
Photoelectric Sensors
Diffuse mode sensor

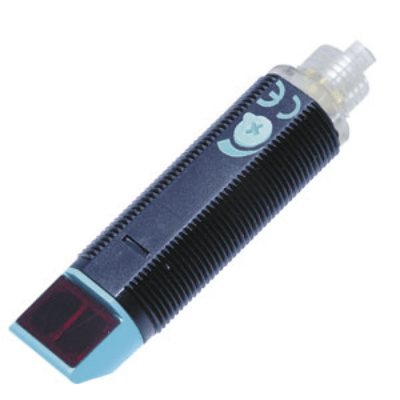

GLK18-8-200-S/25/161/166 - Diffuse mode sensor
Pepperl+Fuchs
Photoelectric Sensors
Diffuse mode sensor
GLK18-8-200-S/25/161/166 - Diffuse mode sensor
1/5
1
1
2|0
3
4
4
0
0
0
0
0
0
0
0
0
0

GLK18-8-200-S/25/161/166

Expand Table
1/5
Product Picture
PRODUCT_PICTURE
MANUID
Short Description
DESCSHORT
EAN
Manufacturer Type Description
MANUTYPEDESC
Max. range of light scanner
AAC906005 [mm]
Max. output current
BAC640005 [mA]
min. ambient temperature
BAA038006 [°C]
Type of light
BAD859008
Voltage type
BAD915006
Wave length of the sensors
BAD945004 [nm]
Diameter of sensor
BAD826005 [mm]
Material of the optical surface
BAD950006
1
GLK18-8-200-S/25/161/166
Diffuse mode sensor GLK18-8-200-S/25/161/166
4050143283828
GLK18-8-200-S/25/161/166
200
200
-20
Red light, non-polarized
AC/DC
640
18
Plastic
显示压缩表示形式 (1 Produkt)
零部件信息
相似件
Request for quote (RFQ)
Pepperl+Fuchs - GLK18-8-200-S/25/161/166
订购编码GLK18-8-200-S/25/161/166
ShorttextDiffuse mode sensor GLK18-8-200-S/25/161/166
上次修改13.12.2022 15:41:54
单位
关键字

分类

CNS

CNSERPBASE Object Properties
Customs Tariff Number8536 5080 900 [DE]
Description shortDiffuse mode sensor GLK18-8-200-S/25/161/166
Order NumberGLK18-8-200-S/25/161/166

ECLASS 14.0

27-27-09-03 高能光扫描仪

ECLASS 11.0

27-27-09-03 高能光扫描仪
最大光照范围200 mm
外壳材料Polycarbonate
最大输出电流200 mA
适用于安全功能No
传感器的直径18 mm
电路连接说明Connector 1/2 Inch
外壳结构类型cylinder, thread
传感器长度73 mm
光线类型Red light, non-polarized
转换输出说明NPN
转换频率50.000 Hz
电压类型AC/DC
传感器的波长640 nm
光学面的原材料Plastic

ECLASS 9.1

27-27-09-03 高能光扫描仪
最大光照范围200 mm
最低环境温度-20 °C
最高环境温度60.00 °C
外壳材料Polycarbonate
最大输出电流200 mA
适用于安全功能No
传感器的直径18 mm
电路连接说明Connector 1/2 Inch
外壳结构类型cylinder, thread
传感器长度73 mm
光线类型Red light, non-polarized
转换输出说明NPN
转换频率50.000 Hz
电压类型AC/DC
传感器的波长640 nm
光学面的原材料Plastic

ETIM 10.0

EC001821 Diffuse reflective photoelectric sensor
Operating distance200 mm
Material housingPolycarbonate
Max. output current200 mA
Suitable for safety functionsNo
Diameter sensor18 mm
Type of electric connectionConnector 1/2 Inch
Construction type housingcylinder, thread
Length of sensor73 mm
Type of lightRed light, non-polarized
Type of switching outputNPN
Switching frequency50.000 Hz
Voltage typeAC/DC
Wavelength of the sensor640 nm
Material of optical surfacePlastic
EC002719 Light scanner with background masking

ETIM 9.0

EC001821 Diffuse reflective photoelectric sensor
Operating distance200 mm
Material housingPolycarbonate
Max. output current200 mA
Suitable for safety functionsNo
Diameter sensor18 mm
Type of electric connectionConnector 1/2 Inch
Construction type housingcylinder, thread
Length of sensor73 mm
Type of lightRed light, non-polarized
Type of switching outputNPN
Switching frequency50.000 Hz
Voltage typeAC/DC
Wavelength of the sensor640 nm
Material of optical surfacePlastic
EC002719 Light scanner with background masking

ETIM 8.0

EC001821 Diffuse reflective photoelectric sensor
Operating distance200 mm
Material housingPolycarbonate
Max. output current200 mA
Suitable for safety functionsNo
Diameter sensor18 mm
Type of electric connectionConnector 1/2 Inch
Construction type housingcylinder, thread
Length of sensor73 mm
Type of lightRed light, non-polarized
Type of switching outputNPN
Switching frequency50.000 Hz
Voltage typeAC/DC
Wavelength of the sensor640 nm
Material of optical surfacePlastic
EC002719 Light scanner with background masking

ETIM 7.0

EC001821 Light scanner, energetic
Operating distance200 mm
Material housingPolycarbonate
Max. output current200 mA
Suitable for safety functionsNo
Diameter sensor18 mm
Type of electric connectionConnector 1/2 Inch
Construction type housingcylinder, thread
Length of sensor73 mm
Type of lightRed light, non-polarized
Type of switching outputNPN
Switching frequency50.000 Hz
Voltage typeAC/DC
Wavelength of the sensor640 nm
Material of optical surfacePlastic
