140137
1/5
Preview
PREVIEW
PLID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Netto weight
NETTO_WEIGHT [kg]
ECLASS-13.0
ECLASS_13_0
ETIM-10.0
ETIM_10_0
Width [EF000008]
EF000008 [mm]
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

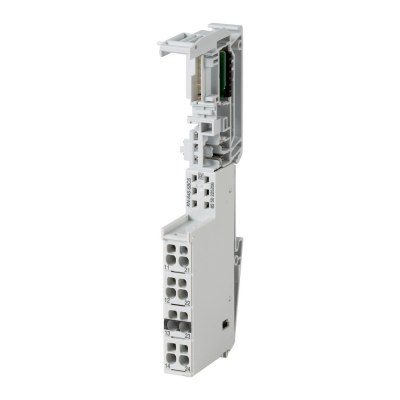

140084
XN-S4T-SBBS-CJ
Base module washer XI/ON, tension spring, 4 connection levels, with temperature compensation
Rack, XI/ON slice card base modules, Connection levels: 4 connection levels, Connection technique: Spring-loaded terminals, for Slice module, Base module with temperature sensors for cold-junction compensation, Degree of Protection: IP20, For use with: XN-2AI-THERMO-PI, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130121232
0.038
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
12.6
140091
XN-S4S-SBCS
Base module washer XI/ON, screw, 4 connection levels, con. to C rail
Rack, XI/ON slice card base modules, Connection levels: 4 connection levels, Connection technique: Screw terminals, for Slice module, Connection to C rail, Degree of Protection: IP20, For use with: XN-2DO-24VDC-0.5A-P, XN-2DO-24VDC-0.5A-N, XN-2DO-24VDC-2A-P, XN-2DO-120/230VAC-0.5A, XN-4DO-24VDC-0.5A-P, XN-2DO-R-NO, XN-2DO-R-NC, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130121201
0.051
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
12.6
140074
XN-P3T-SBB
Base module washer XI/ON, for feeder unit, tension spring, 3 connection levels
Rack, XI/ON slice card base modules, Connection levels: 3 connection levels, Connection technique: Spring-loaded terminals, for Slice module, Base modules for field power supply, Base module for the gateway supply (with XN‑BR-24VDC-D), Degree of Protection: IP20, For use with: XN-BR-24VDC-D, XN-PF-24VDC-D, XN-PF-120/230VAC-D, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130120952
0.031
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
12.6
140087
XN-P4S-SBBC
Base module washer XI/ON, for feeder unit, screw, 4 connection levels
Rack, XI/ON slice card base modules, Connection levels: 4 connection levels, Connection technique: Screw terminals, for Slice module, Base modules for field power supply, Base module for the gateway supply (with XN‑BR-24VDC-D), Connection to C rail, Degree of Protection: IP20, For use with: XN-BR-24VDC-D, XN-PF-24VDC-D, XN-PF-120/230VAC-D, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130120976
0.049
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
12.6
140076
XN-P4T-SBBC
Base module washer XI/ON, for feeder unit, tension spring, 4 connection levels
Rack, XI/ON slice card base modules, Connection levels: 4 connection levels, Connection technique: Spring-loaded terminals, for Slice module, Base modules for field power supply, Base module for the gateway supply (with XN‑BR-24VDC-D), Degree of Protection: IP20, For use with: XN-BR-24VDC-D, XN-PF-24VDC-D, XN-PF-120/230VAC-D, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130120990
0.035
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
12.6
140089
XN-S4S-SBBC
Base module washer XI/ON, screw, 4 connection levels, con. to C rail
Rack, XI/ON slice card base modules, Connection levels: 4 connection levels, Connection technique: Screw terminals, for Slice module, Connection to C rail, Degree of Protection: IP20, For use with: XN-2DI-24VDC-P, XN-2DI-24VDC-N, XN-2DI-120/230VAC, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130121171
0.049
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
12.6
140138
XN-B3S-SBC
Base module block XI/ON, screw, 3 connection levels, con. to C rail
Rack, XI/ON block base modules, Connection levels: 3 connection levels, Connection technique: Screw terminals, for Block module, Connection to C rail, Degree of Protection: IP20, For use with: XN-16DO-24VDC-0.5A-P, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130120426
0.287
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
100.8
140134
XN-B3T-SBC
Base module block XI/ON, tension spring, 3 connection levels, con. to C rail
Rack, XI/ON block base modules, Connection levels: 3 connection levels, Connection technique: Spring-loaded terminals, for Block module, Connection to C rail, Degree of Protection: IP20, For use with: XN-16DO-24VDC-0.5-P, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130120440
0.206
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
100.8
140090
XN-S3S-SBC
Base module washer XI/ON, screw, 3 connection levels, con. to C rail
Rack, XI/ON slice card base modules, Connection levels: 3 connection levels, Connection technique: Screw terminals, for Slice module, Connection to C rail, Degree of Protection: IP20, For use with: XN-2DO-24VDC-0.5A-P, XN-2DO-24VDC-0.5A-N, XN-2DO-24VDC-2A-P, XN-2DO-120/230VAC-0.5A, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130121140
0.041
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
12.6
140085
XN-P3S-SBB
Base module washer XI/ON, for feeder unit, screw, 3 connection levels
Rack, XI/ON slice card base modules, Connection levels: 3 connection levels, Connection technique: Screw terminals, for Slice module, Base modules for field power supply, Base module for the gateway supply (with XN‑BR-24VDC-D), Degree of Protection: IP20, For use with: XN-BR-24VDC-D, XN-PF-24VDC-D, XN-PF-120/230VAC-D, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130120938
0.041
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
12.6
140137
XN-B3S-SBB
Base module block XI/ON, screw, 3 connection levels
Rack, XI/ON block base modules, Connection levels: 3 connection levels, Connection technique: Screw terminals, for Block module, Degree of Protection: IP20, For use with: XN-16DI-24VDC-P, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130120419
0.287
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
100.8
140140
XN-B6S-SBBSBB
Base module block XI/ON, screw, 6 connection levels
Rack, XI/ON block base modules, Connection levels: 6 connection levels, Connection technique: Screw terminals, for Block module, Degree of Protection: IP20, For use with: XN-32DI-24VDC-P, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130120471
0.316
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
100.8
140079
XN-S3T-SBC
Base module washer XI/ON, tension spring, 3 connection levels, con. to C rail
Rack, XI/ON slice card base modules, Connection levels: 3 connection levels, Connection technique: Spring-loaded terminals, for Slice module, Connection to C rail, Degree of Protection: IP20, For use with: XN-2DO-24VDC-0.5A-P, XN-2DO-24VDC-0.5A-N, XN-2DO-24VDC-2A-P, XN-2DO-120/230VAC-0.5A, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130121164
0.031
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
12.6
140136
XN-B6T-SBBSBB
Base module block XI/ON, tension spring, 6 connection levels
Rack, XI/ON block base modules, Connection levels: 6 connection levels, Connection technique: Spring-loaded terminals, for Block module, Degree of Protection: IP20, For use with: XN-32DI-24VDC-P, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130120495
0.316
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
100.8
140093
XN-S6S-SBBSBB
Base module washer XI/ON, screw, 6 connection levels
Rack, XI/ON slice card base modules, Connection levels: 6 connection levels, Connection technique: Screw terminals, for Slice module, Degree of Protection: IP20, For use with: XN-4DI-24VDC-P, XN-4DI-24VDC-N, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130121256
0.067
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
12.6
140159
XN-B6T-SBCSBC
Base module block XI/ON, tension spring, 6 connection levels, con. to C rail
Rack, XI/ON block base modules, Connection levels: 6 connection levels, Connection technique: Spring-loaded terminals, for Block module, Connection to C rail, Degree of Protection: IP20, For use with: XN-32DO-24VDC-0.5A-P, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130120501
0.466
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
100.8
140086
XN-P4S-SBBC-B
Base module washer XI/ON, for bus refreshing, screw, 4 connection levels
Rack, XI/ON slice card base modules, Connection levels: 4 connection levels, Connection technique: Screw terminals, for Slice module, Base module for bus refreshing within the station, Connection to C rail, Degree of Protection: IP20, For use with: XN-BR-24VDC-D, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130120983
0.048
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
12.6
140094
XN-S6S-SBCSBC
Base module washer XI/ON, screw, 6 connection levels, con. to C rail
Rack, XI/ON slice card base modules, Connection levels: 6 connection levels, Connection technique: Screw terminals, for Slice module, Connection to C rail, Degree of Protection: IP20, For use with: XN-4DO-24VDC-0.5A-P, XN-4AI-U/I, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130121263
0.067
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
12.6
140083
XN-S6T-SBCSBC
Base module washer XI/ON, tension spring, 6 connection levels, con. to C rail
Rack, XI/ON slice card base modules, Connection levels: 6 connection levels, Connection technique: Spring-loaded terminals, for Slice module, Connection to C rail, Degree of Protection: IP20, For use with: XN-4DO-24VDC-0.5A-P, XN-4AI-U/I, Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
7640130121287
0.046
Field bus, decentralized peripheral - module carrier [BAA064018]
Fieldbus, decentr. periphery - mounting frame [EC001598]
12.6
Eaton's CAD - Fieldbus, decentr. periphery - mounting frame [EC001598]
| 订购编码 | 140137 |
| 上次修改 | 03.09.2026 18:12:50 |
