138540
1/5
Preview
PREVIEW
PLID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Netto weight
NETTO_WEIGHT [kg]
ECLASS-13.0
ECLASS_13_0
ETIM-10.0
ETIM_10_0
Width [EF000008]
EF000008 [mm]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
280418
NZM2-XCI45-TVD
Insulated enclosure, box size HxWxD=500x375x225mm, for NZM size 2
Insulated enclosure Ci, degree of protection IP65, HxWxD=500x375x225mm, for NZM size 2, protection class 2, impact-resistant polycarbonate, door-coupling rotary breaker handle black included, pre-drilled mounting plate for breaker and optional PE/N clamps, enclosure cap prepared for rotary handle, transparent smoky gray cap, wall-mounting lugs, includes top and bottom cable insertion flanges and cable grommets.
4015082804183
5.844
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
375.0
271524
NZM2-XCI43-TVD
Insulated enclosure, box size HxWxD=375x250x225mm, for NZM size 3
Insulated enclosure Ci, degree of protection IP65, HxWxD=375x250x225mm, for NZM size 2, protection class 2, impact-resistant polycarbonate, door-coupling rotary breaker handle black included, pre-drilled mounting plate for breaker and optional PE/N clamps, enclosure cap prepared for rotary handle, transparent smoky gray cap, wall-mounting lugs, includes top and bottom cable insertion flanges and cable grommets.
4015082715243
6.043
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
250.0
271522
NZM1-XCI23-TVD
Insulated enclosure, box size HxWxD=250x187.5x175mm, for NZM size 1
Insulated housing Ci, protection category IP65, HxWxD=250x187.5x175mm, for NZM size 1, protection class 2, impact-resistant polycarbonate, door-coupling rotary breaker handle included, pre-drilled mounting plate for breaker and optional PE/N clamps, housing cap prepared for rotary handle, transparent smoky gray cap, wall-mounting lugs, includes top and bottom cable insertion flanges.
4015082715229
2.614
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
187.5
104645
NZM1-XCI43/2-TVD
Insulated enclosure, box size HxWxD=375x250x225mm, for NZM size 1
Ci insulated enclosures, degree of protection IP65, HxWxD = 375 x 250 x 225 mm, for NZM size 1, protection class 2, impact-resistant polycarbonate, switch door coupling rotary handle included, mounting plate
4015081044559
4.247
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
250.0
138541
MCCB2-200/I43E-200
Housing, insulated material, for molded-case circuit-breaker NZM2 size, HxWxD=375x250x225mm
Enclosure for molded-case circuit-breaker and switch-disconnector, material characteristic polycarbonate, impact-resistant, degree of protection IP65, patented cover fasteners with integrated overpressure compensation, use as individual enclosure and distribution board, observe the technical data of other equipment when connecting distribution boards, metric cable entry knockouts in all sides, enclosure side plates can be knocked out or grouped next to other devices, mounting plate pre-drilled for switch and pre-drilled for a PE and N terminal, mounting plate made from 3mm sheet steel, sealable cover fasteners, cover type: transparent smoky , predrilled, degree of protection IP65, with switch door coupling rotary handle NZM...-XTVD and extension shaft, fixing material for fixing material, fixing strap BL-CI, not in combination with remote operator NZM…-XR, plug-in unit NZM…-XSV or withdrawable unit NZM…-XAV, rated uninterrupted current Iu=200 A, can be used for switch NZM2(-4), N2(-4), N(N/O)2(-4), can be used for terminals K50/1, K95/1N…, K150/1N…, notes: additional terminals for PE- and N-conductor K50/1 K95/1N..., K150/1N... for 4. and 5. pole must be ordered separately
4015081353200
4.950
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
375.0
271526
NZM1-XCIK5-TVDVR
Insulated enclosure, box size HxWxD=280x200x160mm, for NZM size 1
Insulated enclosure Ci, degree of protection IP65, HxWxD=280x200x160mm, for NZM size 1, protection class 2, impact-resistant polycarbonate, switch door coupling rotary handle red/yellow included, mounting plate pre-drilled for switch and optional PE/N terminals, enclosure cover prepared for rotary handle, non-transparent cover, wall fixing brackets, including gland plate inserts at top and bottom.
4015082715267
2.157
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
200.0
104646
NZM1-XCI43/2-TVDVR
Insulated enclosure, box size HxWxD=375x250x225mm, for NZM size 1
Insulated enclosure Ci, degree of protection IP65, HxWxD=375x250x225mm, for NZM size 1, protection class 2, impact-resistant polycarbonate, door-coupling rotary breaker handle red/yellow included, pre-drilled mounting plate for breaker and optional PE/N clamps, enclosure cap prepared for rotary handle, transparent smoky gray cap, wall-mounting lugs, includes top and bottom cable insertion flanges and cable grommets.
4015081044566
4.283
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
250.0
138544
MCCB3-630/I48/I43E-200
Housing, insulated material, for molded-case circuit-breaker NZM3 size, HxWxD=1000x375x225mm
Enclosure for molded-case circuit-breaker and switch-disconnector, material characteristic polycarbonate, impact-resistant, degree of protection IP65, patented cover fasteners with integrated overpressure compensation, use as individual enclosure and distribution board, observe the technical data of other equipment when connecting distribution boards, metric cable entry knockouts in all sides, enclosure side plates without knockouts, open at bottom, enclosure side plates can be knocked out or grouped next to other devices, mounting plate pre-drilled for switch and pre-drilled for a PE and N terminal, mounting plate made from 3mm sheet steel , sealable cover fasteners, cover type: transparent smoky, predrilled, degree of protection IP65, with switch door coupling rotary handle NZM...-XTVD and extension shaft, fixing material for fixing material, fixing strap BL-CI, not in combination with remote operator NZM…-XR, plug-in unit NZM…-XSV or withdrawable unit NZM…-XAV, rated uninterrupted current Iu=630 A, can be used for switch NZM3(-4), N3(-4), N(N/O)3(-4), can be used for terminals K50/1, K95/1N…, K150/1N…, K240/1N…, K2X240/1N…, notes: additional terminals for PE- and N-conductor K50/1 K95/1N... K150/1N... K240/1N..., K2X240/1N... for 4. and 5. pole must be ordered separately
4015081353231
14.771
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
375.0
138543
MCCB3-400/I45E-200
Housing, insulated material, for molded-case circuit-breaker NZM3 size, HxWxD=500x375x225mm
Enclosure for molded-case circuit-breaker and switch-disconnector, material characteristic polycarbonate, impact-resistant, degree of protection IP65, patented cover fasteners with integrated overpressure compensation, use as individual enclosure and distribution board, observe the technical data of other equipment when connecting distribution boards, metric cable entry knockouts in all sides, enclosure side plates can be knocked out or grouped next to other devices, mounting plate pre-drilled for switch and pre-drilled for a PE and N terminal, mounting plate made from 3mm sheet steel, sealable cover fasteners, cover type: transparent , predrilled, degree of protection IP65, with switch door coupling rotary handle NZM...-XTVD and extension shaft, fixing material for fixing material, fixing strap BL-CI, not in combination with remote operator NZM…-XR, plug-in unit NZM…-XSV or withdrawable unit NZM…-XAV, rated uninterrupted current Iu=400 A, can be used for switch NZM3(-4), N3(-4), N(N/O)3(-4), can be used for terminals K50/1, K95/1N…, K150/1N…, K240/1N…, notes: additional terminals for PE- and N-conductor K50/1 K95/1N... K150/1N..., K240/1N... for 4. and 5. pole must be ordered separately
4015081353224
8.745
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
375.0
138540

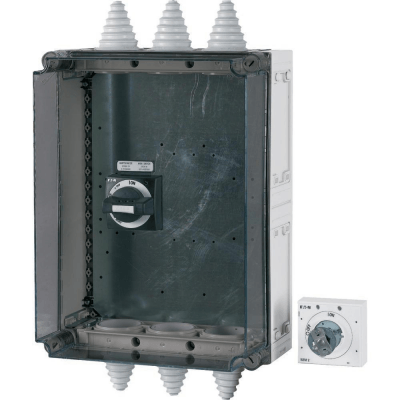

MCCB1-160/I43E-200
Housing, insulated material, for molded-case circuit-breaker NZM1 size, HxWxD=375x250x225mm
Enclosure for molded-case circuit-breaker and switch-disconnector, material characteristic polycarbonate, impact-resistant, degree of protection IP65, patented cover fasteners with integrated overpressure compensation, use as individual enclosure and distribution board, observe the technical data of other equipment when connecting distribution boards, metric cable entry knockouts in all sides, enclosure side plates can be knocked out or grouped next to other devices, mounting plate pre-drilled for switch and pre-drilled for a PE and N terminal, mounting plate made from 3mm sheet steel, sealable cover fasteners, cover type: transparent smoky , predrilled, degree of protection IP65, with switch door coupling rotary handle NZM...-XTVD and extension shaft, fixing material for fixing material, fixing strap BL-CI, not in combination with remote operator NZM…-XR, plug-in unit NZM…-XSV or withdrawable unit NZM…-XAV, rated uninterrupted current Iu=160 A, can be used for switch NZM1(-4), N1(-4), N(N/O)1(-4), can be used for terminals K50/1, K95/1N…, notes: additional terminals for PE- and N-conductor K50/1, K95/1N... for 4. and 5. pole must be ordered separately
4015081353194
4.856
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
375.0
271527
NZM1-XCI23-TVDVR
Insulated enclosure, box size HxWxD=250x187.5x175mm, for NZM size 1
Insulated enclosure Ci, degree of protection IP65, HxWxD=250x187,5x175mm, for NZM size 1, protection class 2, impact-resistant polycarbonate, door-coupling rotary breaker handle red/yellow included, pre-drilled mounting plate for breaker and optional PE/N clamps, enclosure cap prepared for rotary handle, transparent smoky gray cap, wall-mounting lugs, includes top and bottom cable insertion flanges.
4015082715274
3.050
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
187.5
138542
MCCB2-250/I45E-200
Housing, insulated material, for molded-case circuit-breaker NZM2 size, HxWxD=500x375x225mm
Enclosure for molded-case circuit-breaker and switch-disconnector, material characteristic polycarbonate, impact-resistant, degree of protection IP65, patented cover fasteners with integrated overpressure compensation, use as individual enclosure and distribution board, observe the technical data of other equipment when connecting distribution boards, metric cable entry knockouts in all sides, enclosure side plates can be knocked out or grouped next to other devices, mounting plate pre-drilled for switch and pre-drilled for a PE and N terminal, mounting plate made from 3mm sheet steel, sealable cover fasteners, cover type: transparent smoky , predrilled, degree of protection IP65, with switch door coupling rotary handle NZM...-XTVD and extension shaft, fixing material for fixing material, fixing strap BL-CI, not in combination with remote operator NZM…-XR, plug-in unit NZM…-XSV or withdrawable unit NZM…-XAV, rated uninterrupted current Iu=250 A, can be used for switch NZM2(-4), N2(-4), N(N/O)2(-4), can be used for terminals K50/1, K95/1N��, K150/1N…, notes: additional terminals for PE- and N-conductor K50/1 K95/1N..., K150/1N... for 4. and 5. pole must be ordered separately
4015081353217
8.286
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
375.0
138539
MCCB1-125/I43E-150
Housing, insulated material, for molded-case circuit-breaker NZM1 size, HxWxD=375x250x175mm
Enclosure for molded-case circuit-breaker and switch-disconnector, material characteristic polycarbonate, impact-resistant, degree of protection IP65, patented cover fasteners with integrated overpressure compensation, use as individual enclosure and distribution board, observe the technical data of other equipment when connecting distribution boards, metric cable entry knockouts in all sides, enclosure side plates can be knocked out or grouped next to other devices, mounting plate pre-drilled for switch and pre-drilled for a PE and N terminal, mounting plate made from 3mm sheet steel, sealable cover fasteners, cover type: transparent smoky , predrilled, degree of protection IP65, with switch door coupling rotary handle NZM...-XTVD and extension shaft, fixing material for fixing material, fixing strap BL-CI, not in combination with remote operator NZM…-XR, plug-in unit NZM…-XSV or withdrawable unit NZM…-XAV, rated uninterrupted current Iu=125A, can be used for switch NZM1(-4), N1(-4), N(N/O)1(-4), can be used for terminals K50/1, K95/1N…, notes: additional terminals for PE- and N-conductor K50/1, K95/1N... for 4. and 5. pole must be ordered separately
4015081353187
4.472
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
375.0
271521
NZM1-XCIK5-TVD
Insulated enclosure, box size HxWxD=280x200x160mm, for NZM size 1
Insulated enclosure Ci, degree of protection IP65, HxWxD=280x200x160mm, for NZM size 1, protection class 2, impact-resistant polycarbonate, switch door coupling rotary handle black included, mounting plate pre-drilled for switch and optional PE/N terminals, enclosure cover prepared for rotary handle, non-transparent cover, wall fixing brackets, including gland plate inserts at top and bottom.
4015082715212
2.107
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
200.0
138538
MCCB1-63/I23E-150
Housing, insulated material, for molded-case circuit-breaker NZM1 size, HxWxD=250x187.5x175mm
Enclosure for molded-case circuit-breaker and switch-disconnector, material characteristic polycarbonate, impact-resistant, degree of protection IP65, patented cover fasteners with integrated overpressure compensation, use as individual enclosure and distribution board, observe the technical data of other equipment when connecting distribution boards, metric cable entry knockouts in all sides, enclosure side plates can be knocked out or grouped next to other devices, mounting plate pre-drilled for switch and pre-drilled for a PE and N terminal, mounting plate made from 3mm sheet steel, sealable cover fasteners, cover type: transparent smoky , predrilled, degree of protection IP65, with switch door coupling rotary handle NZM...-XTVD and extension shaft, fixing material for fixing material, fixing strap BL-CI for wall mounting, not in combination with remote operator NZM…-XR, plug-in unit NZM…-XSV or withdrawable unit NZM…-XAV, rated uninterrupted current Iu=63A, can be used for switch NZM1(-4), N1(-4), N(N/O)1(-4), can be used for terminals K50/1, K95/1N…, notes: additional terminals for PE- and N-conductor K50/1, K95/1N... for 4. and 5. pole must be ordered separately
4015081353170
2.775
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
188.0
279356
NZM2-XCI45-TVDVR
Insulated enclosure, box size HxWxD=500x375x225mm, for NZM size 2
Insulated enclosure Ci, degree of protection IP65, HxWxD=500x375x225mm, for NZM size 2, protection class 2, impact-resistant polycarbonate, door-coupling rotary breaker handle red/yellow included, pre-drilled mounting plate for breaker and optional PE/N clamps, enclosure cap prepared for rotary handle, transparent smoky gray cap, wall-mounting lugs, includes top and bottom cable insertion flanges and cable grommets.
4015082793562
10.320
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
375.0
271523
NZM1-XCI43-TVD
Insulated enclosure, box size HxWxD=375x250x175mm, for NZM size 1
Insulated enclosure Ci, degree of protection IP65, HxWxD=375x250x175mm, for NZM size 1, protection class 2, impact-resistant polycarbonate, door-coupling rotary breaker handle black included, pre-drilled mounting plate for breaker and optional PE/N clamps, enclosure cap prepared for rotary handle, transparent smoky gray cap, wall-mounting lugs, includes top and bottom cable insertion flanges and cable grommets.
4015082715236
5.681
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
250.0
271525
NZM3-XCI48-TVD
Insulated enclosure, box size HxWxD=750x375x275mm, for NZM size 4
Insulated enclosure Ci, degree of protection IP65, HxWxD=750x375x275mm, for NZM size 3, protection class 2, impact-resistant polycarbonate, door-coupling rotary breaker handle black included, pre-drilled mounting plate for breaker and optional PE/N clamps, enclosure cap prepared for rotary handle, transparent smoky gray cap, wall-mounting lugs, includes top and bottom cable insertion flanges and cable grommets.
4015082715250
13.539
Empty housing for switch devices [AKN343019]
Empty enclosure for switchgear [EC000712]
375.0
