ECJ1800P1N01300
1/5
Code
CODE
Belt width
B
Number of Teeth
Z
Length
L [mm]
Profile
P
Pulley teeth
PT
Colour
COL
Finitura superficiale
FIN
Belt thickness
S
Passo
PITCH
Allowable tensile load at 1% elongation
ATL1 [N/mm]
Allowable tensile load at 2% elongation
ATL2 [N/mm]
Working temperature
WT [°C]
Min roller diameter (above 0°C)
MRDA0 [mm]
Min roller diameter (below 0°C)
MRDB0 [mm]
Min bacl bending (above 0°C)
MBBA0 [mm]
Min back bending (below 0°C)
MBBB0 [mm]
1
ECJ1800P1N01300
1800
50
1300
6
Sky Blue (Azzurro 23)
M
3.600
26.000
1.5
3.0
-30 / +80
Z6
Z10
90
125

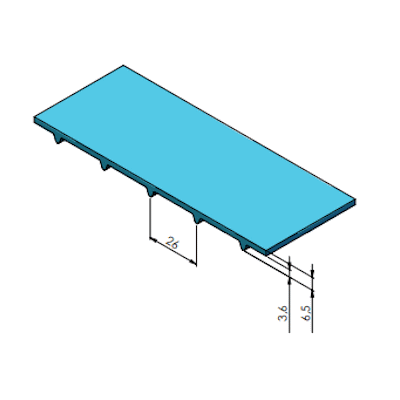

Elatech® - Elaclean belts P1 profile
| 简短文本 | Joineb belts |
| 上次修改 | 23.07.2026 09:30:18 |
