ECJ1524C4N01429
1/5
Code
CODE
Belt width
B
Number of Teeth
Z
Length
L [mm]
Profile
P
Pulley teeth
PT
Colour
COL
Finitura superficiale
FIN
Belt thickness
S
Passo
PITCH
Allowable tensile load at 1% elongation
ATL1 [N/mm]
Allowable tensile load at 2% elongation
ATL2 [N/mm]
Working temperature
WT [°C]
Min roller diameter (above 0°C)
MRDA0 [mm]
Min roller diameter (below 0°C)
MRDB0 [mm]
Min bacl bending (above 0°C)
MBBA0 [mm]
Min back bending (below 0°C)
MBBB0 [mm]
1
ECJ1524C4N01429
1524
36
1429.2
6
Sky Blue (Azzurro 23)
M
3.300
39.700
3.0
6.0
-30 / +80
Z8
Z10
150
250

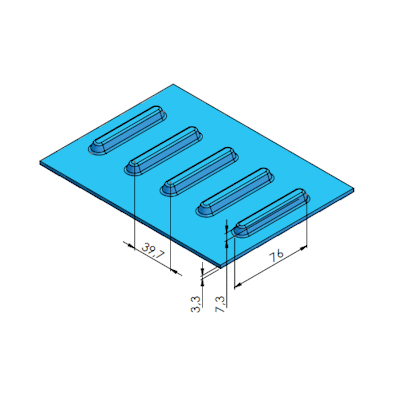

Elatech® - Elaclean belts C4 profile
