196663
1/5
Preview
PREVIEW
PLID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Netto weight
NETTO_WEIGHT [kg]
ECLASS-13.0
ECLASS_13_0
ETIM-9.0
ETIM_9_0
Number of poles (total) [EF008618]
EF008618
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
193810

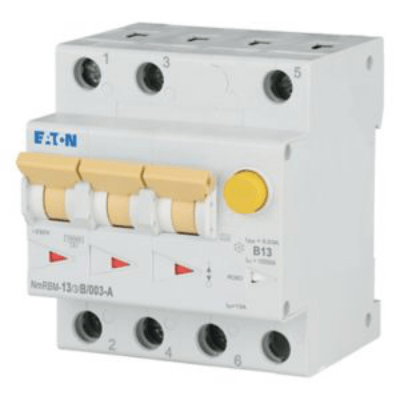

NmRBM-13/3/B/003-A
RCD/MCB combination, 13 A, 30 mA, MCB trip characteristic: B, 3p, RCD trip characteristic: A
RCD/MCB combination switch, NmRBM, 3-pole, tripping characteristic: B, rated current In: 13 A, rated switching capacity according to IEC/EN 61009: 10 kA, rated switching capacity according to IEC/EN 60947-2 Ics/Icu: 6 kA/15 kA, rated fault current: 0.03 A, pulse-current sensitive, partly surge-proof 250 A
9010238039377
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196668
PKPM3-32/3/C/003-Li/A
RCD/MCB combination, 32 A, 30 mA, MCB trip characteristic: C, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: C, Rated current In: 32 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.03 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800380
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196669

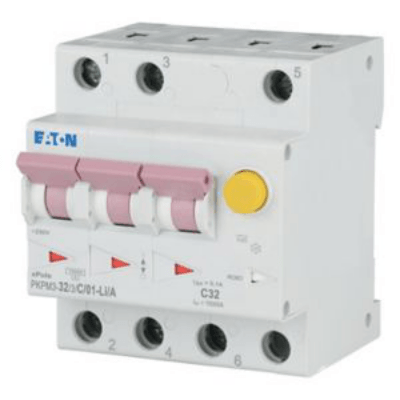

PKPM3-32/3/C/01-Li/A
RCD/MCB combination, 32 A, 100 mA, MCB trip characteristic: C, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: C, Rated current In: 32 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.1 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800397
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196666

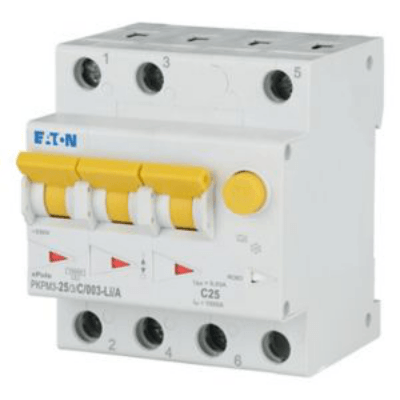

PKPM3-25/3/C/003-Li/A
RCD/MCB combination, 25 A, 30 mA, MCB trip characteristic: C, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: C, Rated current In: 25 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.03 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800366
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196667

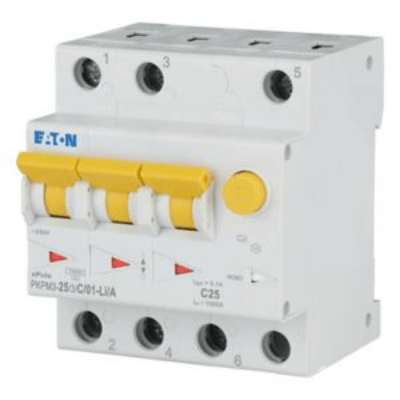

PKPM3-25/3/C/01-Li/A
RCD/MCB combination, 25 A, 100 mA, MCB trip characteristic: C, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: C, Rated current In: 25 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.1 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800373
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196664
PKPM3-20/3/C/003-Li/A
RCD/MCB combination, 20 A, 30 mA, MCB trip characteristic: C, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: C, Rated current In: 20 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.03 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800342
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196656

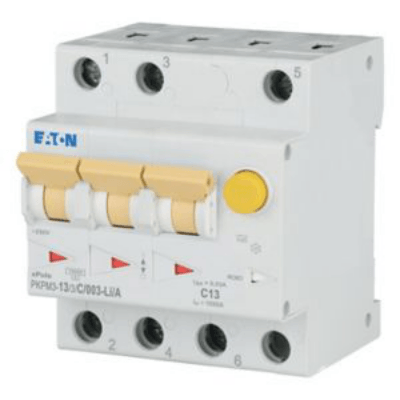

PKPM3-13/3/C/003-Li/A
RCD/MCB combination, 13 A, 30 mA, MCB trip characteristic: C, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: C, Rated current In: 13 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.03 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800267
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196653
PKPM3-10/3/C/01-Li/A
RCD/MCB combination, 10 A, 100 mA, MCB trip characteristic: C, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: C, Rated current In: 10 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.1 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800236
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196662
PKPM3-20/3/B/01-Li/A
RCD/MCB combination, 20 A, 100 mA, MCB trip characteristic: B, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: B, Rated current In: 20 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.1 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800328
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196657

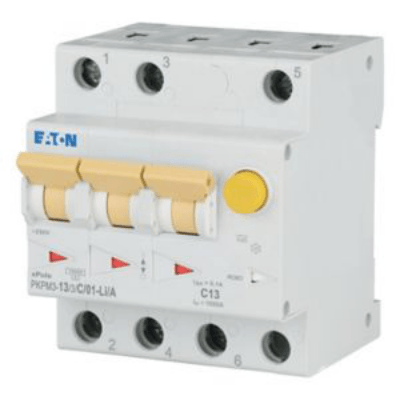

PKPM3-13/3/C/01-Li/A
RCD/MCB combination, 13 A, 100 mA, MCB trip characteristic: C, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: C, Rated current In: 13 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.1 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800274
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196663
PKPM3-20/3/B/003-Li/A
RCD/MCB combination, 20 A, 30 mA, MCB trip characteristic: B, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: B, Rated current In: 20 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.03 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800335
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196648
PKPM3-6/3/C/01-Li/A
RCD/MCB combination, 6 A, 100 mA, MCB trip characteristic: C, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: C, Rated current In: 6 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.1 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800182
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196660

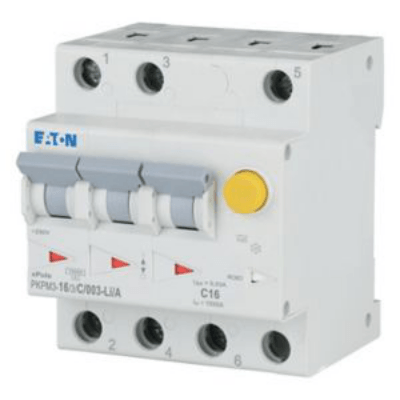

PKPM3-16/3/C/003-Li/A
RCD/MCB combination, 16 A, 30 mA, MCB trip characteristic: C, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: C, Rated current In: 16 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.03 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800304
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196649

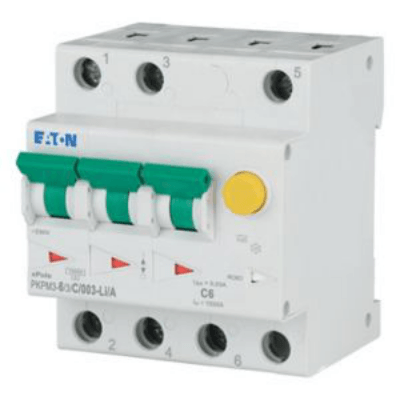

PKPM3-6/3/C/003-Li/A
RCD/MCB combination, 6 A, 30 mA, MCB trip characteristic: C, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: C, Rated current In: 6 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.03 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800199
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196655
PKPM3-13/3/B/003-Li/A
RCD/MCB combination, 13 A, 30 mA, MCB trip characteristic: B, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: B, Rated current In: 13 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.03 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800250
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196665
PKPM3-20/3/C/01-Li/A
RCD/MCB combination, 20 A, 100 mA, MCB trip characteristic: C, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: C, Rated current In: 20 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.1 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800359
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196661
PKPM3-16/3/C/01-Li/A
RCD/MCB combination, 16 A, 100 mA, MCB trip characteristic: C, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: C, Rated current In: 16 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.1 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800311
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196650

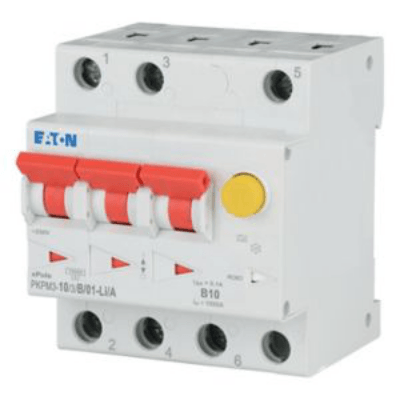

PKPM3-10/3/B/01-Li/A
RCD/MCB combination, 10 A, 100 mA, MCB trip characteristic: B, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: B, Rated current In: 10 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.1 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800205
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
196654
PKPM3-13/3/B/01-Li/A
RCD/MCB combination, 13 A, 100 mA, MCB trip characteristic: B, 3p, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) PKPM3, 3 pole, Tripping characteristic: B, Rated current In: 13 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Rated fault current IΔN: 0.1 A, Pulse-current sensitive,increased surge-proofness, Switchgear for residential and commercial applications
9010238800243
0.39000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
3
