120651
1/5
Preview
PREVIEW
PLID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Netto weight
NETTO_WEIGHT [kg]
ECLASS-13.0
ECLASS_13_0
ETIM-9.0
ETIM_9_0
Number of poles (total) [EF008618]
EF008618
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
120677

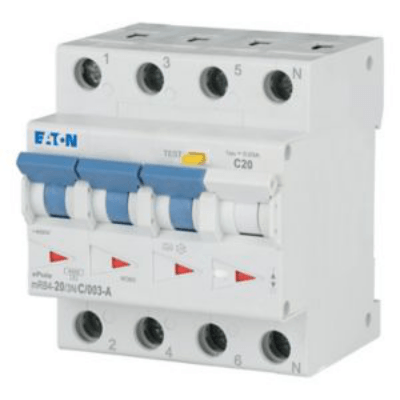

mRB4-20/3N/C/003-A
RCD/MCB combination, 20 A, 30 mA, MCB trip characteristic: C, 3p+N, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) mRB4, 3 pole+N, Rated current In: 20 A, Rated fault current IΔN: 0.03 A, Rated switching capacity acc. to IEC/EN 60947-2: 4.5 kA, Rated switching capacity according to IEC/EN 61009: 4.5 kA, Switchgear for residential and commercial applications
4015081185078
0.44500
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
120665

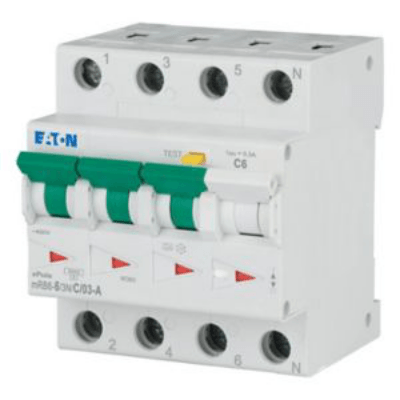

mRB6-6/3N/C/03-A
RCD/MCB combination, 6 A, 300 mA, MCB trip characteristic: C, 3p+N, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) mRB6, 3 pole+N, Rated current In: 6 A, Rated fault current IΔN: 0.3 A, Rated switching capacity acc. to IEC/EN 60947-2: 6 kA, Rated switching capacity according to IEC/EN 61009: 6 kA, Switchgear for residential and commercial applications
4015081184958
0.46100
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
120661
mRB6-6/3N/C/01-A
RCD/MCB combination, 6 A, 100 mA, MCB trip characteristic: C, 3p+N, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) mRB6, 3 pole+N, Rated current In: 6 A, Rated fault current IΔN: 0.1 A, Rated switching capacity acc. to IEC/EN 60947-2: 6 kA, Rated switching capacity according to IEC/EN 61009: 6 kA, Switchgear for residential and commercial applications
4015081184910
0.44600
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
120656

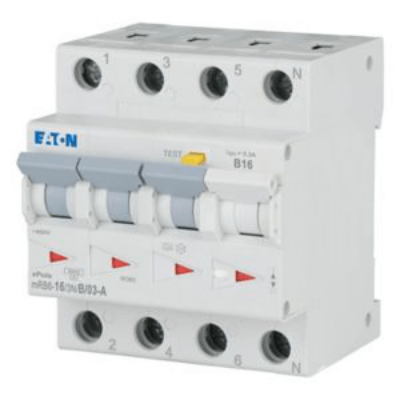

mRB6-16/3N/B/03-A
RCD/MCB combination, 16 A, 300 mA, MCB trip characteristic: B, 3p+N, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) mRB6, 3 pole+N, Rated current In: 16 A, Rated fault current IΔN: 0.3 A, Rated switching capacity acc. to IEC/EN 60947-2: 6 kA, Rated switching capacity according to IEC/EN 61009: 6 kA, Switchgear for residential and commercial applications
4015081184866
0.46100
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
167508
mRB4-32/3N/C/003-A
RCD/MCB combination, 32 A, 30 mA, MCB trip characteristic: C, 3p+N, RCD trip characteristic: A
High-quality residual current device/miniature circuit breaker combination, line voltage-independent, contact position indicator red - green, terminal rear plug protection, tri-stable slide catch - enables removal from existing busbar system, comprehensive range of accessories suitable for subsequent installation, wide range of rated fault currents, rated operational currents up to 40 A, tripping characteristics B, C, D, rated breaking capacity 10 kA, suitable for outdoor use (on-site power and outdoor distribution board) up to -25 °C
4015081640096
0.48000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
153434
mRB6-16/3N/B/003-A-BL
RCD/MCB combination, 16 A, 30 mA, MCB trip characteristic: B, 3p+N, RCD trip characteristic: A, bulk package
RCBO (residual-current circuit breaker with overload protection) mRB6, 3-pole+N, rated current In: 16 A, rated fault current: 0.03 A, rated switching capacity according to IEC/EN 60947-2: 6 kA, rated switching capacity according to IEC/EN 61009: 6 kA, Switchgear for residential and commercial applications.
4015081502035
0.48000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
120666

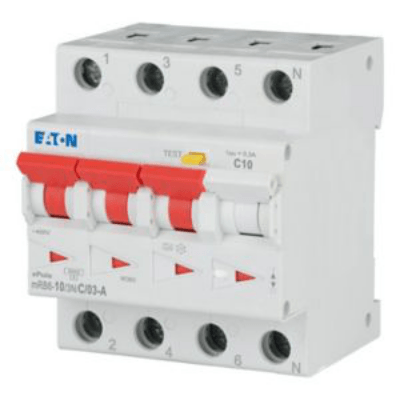

mRB6-10/3N/C/03-A
RCD/MCB combination, 10 A, 300 mA, MCB trip characteristic: C, 3p+N, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) mRB6, 3 pole+N, Rated current In: 10 A, Rated fault current IΔN: 0.3 A, Rated switching capacity acc. to IEC/EN 60947-2: 6 kA, Rated switching capacity according to IEC/EN 61009: 6 kA, Switchgear for residential and commercial applications
4015081184965
0.46100
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
120652
mRB6-16/3N/B/003-A
RCD/MCB combination, 16 A, 30 mA, MCB trip characteristic: B, 3p+N, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) mRB6, 3 pole+N, Rated current In: 16 A, Rated fault current IΔN: 0.03 A, Rated switching capacity acc. to IEC/EN 60947-2: 6 kA, Rated switching capacity according to IEC/EN 61009: 6 kA, Switchgear for residential and commercial applications
4015081184828
0.44500
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
120653

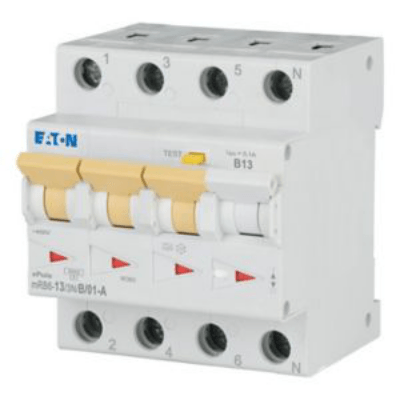

mRB6-13/3N/B/01-A
RCD/MCB combination, 13 A, 100 mA, MCB trip characteristic: B, 3p+N, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) mRB6, 3 pole+N, Rated current In: 13 A, Rated fault current IΔN: 0.1 A, Rated switching capacity acc. to IEC/EN 60947-2: 6 kA, Rated switching capacity according to IEC/EN 61009: 6 kA, Switchgear for residential and commercial applications
4015081184835
0.44600
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
120676
mRB6-16/3N/D/01-A
RCD/MCB combination, 16 A, 100 mA, MCB trip characteristic: D, 3p+N, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) mRB6, 3 pole+N, Rated current In: 16 A, Rated fault current IΔN: 0.1 A, Rated switching capacity acc. to IEC/EN 60947-2: 6 kA, Rated switching capacity according to IEC/EN 61009: 6 kA, Switchgear for residential and commercial applications
4015081185061
0.44600
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
120651
mRB6-13/3N/B/003-A
RCD/MCB combination, 13 A, 30 mA, MCB trip characteristic: B, 3p+N, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) mRB6, 3 pole+N, Rated current In: 13 A, Rated fault current IΔN: 0.03 A, Rated switching capacity acc. to IEC/EN 60947-2: 6 kA, Rated switching capacity according to IEC/EN 61009: 6 kA, Switchgear for residential and commercial applications
4015081184811
0.44500
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
120682

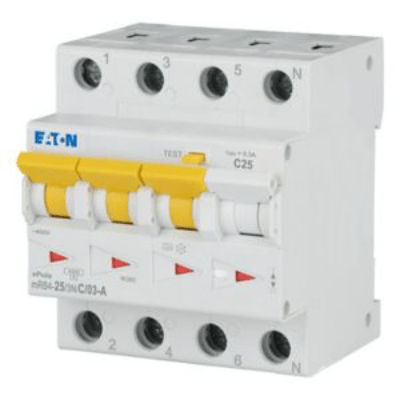

mRB4-25/3N/C/03-A
RCD/MCB combination, 25 A, 300 mA, MCB trip characteristic: C, 3p+N, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) mRB4, 3 pole+N, Rated current In: 25 A, Rated fault current IΔN: 0.3 A, Rated switching capacity acc. to IEC/EN 60947-2: 4.5 kA, Rated switching capacity according to IEC/EN 61009: 4.5 kA, Switchgear for residential and commercial applications
4015081185122
0.46100
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
120684
mRB4-20/3N/D/01-A
RCD/MCB combination, 20 A, 100 mA, MCB trip characteristic: D, 3p+N, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) mRB4, 3 pole+N, Rated current In: 20 A, Rated fault current IΔN: 0.1 A, Rated switching capacity acc. to IEC/EN 60947-2: 4.5 kA, Rated switching capacity according to IEC/EN 61009: 4.5 kA, Switchgear for residential and commercial applications
4015081185146
0.44600
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
167509

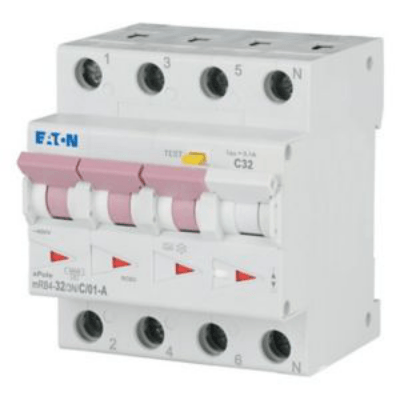

mRB4-32/3N/C/01-A
RCD/MCB combination, 32 A, 100 mA, MCB trip characteristic: C, 3p+N, RCD trip characteristic: A
High-quality residual current device/miniature circuit breaker combination, line voltage-independent, contact position indicator red - green, terminal rear plug protection, tri-stable slide catch - enables removal from existing busbar system, comprehensive range of accessories suitable for subsequent installation, wide range of rated fault currents, rated operational currents up to 40 A, tripping characteristics B, C, D, rated breaking capacity 10 kA, suitable for outdoor use (on-site power and outdoor distribution board) up to -25 °C
4015081640102
0.48000
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
120683
mRB4-20/3N/D/003-A
RCD/MCB combination, 20 A, 30 mA, MCB trip characteristic: D, 3p+N, RCD trip characteristic: A
RCBO (residual-current circuit breaker with overload protection) mRB4, 3 pole+N, Rated current In: 20 A, Rated fault current IΔN: 0.03 A, Rated switching capacity acc. to IEC/EN 60947-2: 4.5 kA, Rated switching capacity according to IEC/EN 61009: 4.5 kA, Switchgear for residential and commercial applications
4015081185139
0.44500
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
EP-504958

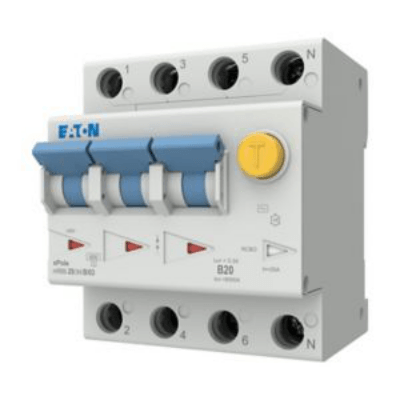

mRB6-20/3N/B/03-G2
RCD/MCB combination, 20 A, 300 mA, 400 V AC, Release characteristic: B, 3+N, Leakage current type: AC
RCD/MCB combination, Rated current: 20 A, Fault current rating: 300 mA, Rated operational voltage (Ue): 400 V AC, Release characteristic: B, Number of poles: 3+N, Leakage current type: AC, Operating amperating temperature: -25 - 50 °C, Degree of protetion: IP20, IP40, Built-in depth: 70 mm
9010653116677
0.44500
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
EP-504957

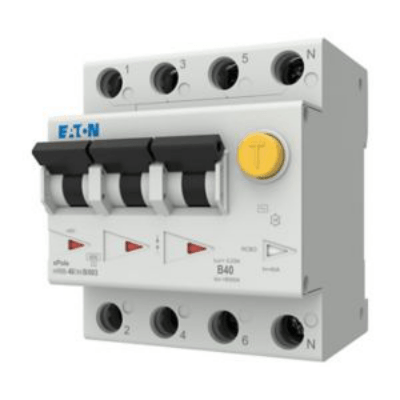

mRB6-40/3N/B/003-G2
RCD/MCB combination, 40 A, 30 mA, 400 V AC, Release characteristic: B, 3+N, Leakage current type: AC
RCD/MCB combination, Rated current: 40 A, Fault current rating: 30 mA, Rated operational voltage (Ue): 400 V AC, Release characteristic: B, Number of poles: 3+N, Leakage current type: AC, Operating amperating temperature: -25 - 50 °C, Degree of protetion: IP20, IP40, Built-in depth: 70 mm
9010653116516
0.44500
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
EP-504959

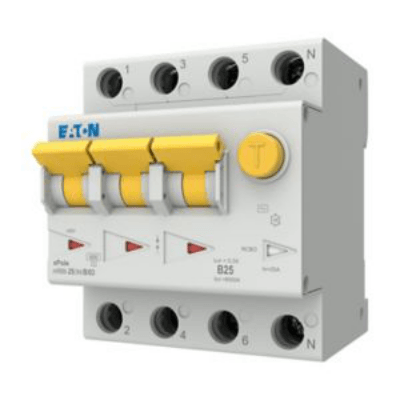

mRB6-25/3N/B/03-G2
RCD/MCB combination, 25 A, 300 mA, 400 V AC, Release characteristic: B, 3+N, Leakage current type: AC
RCD/MCB combination, Rated current: 25 A, Fault current rating: 300 mA, Rated operational voltage (Ue): 400 V AC, Release characteristic: B, Number of poles: 3+N, Leakage current type: AC, Operating amperating temperature: -25 - 50 °C, Degree of protetion: IP20, IP40, Built-in depth: 70 mm
9010653116646
0.44500
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
EP-504955
mRB6-25/3N/B/003-G2
RCD/MCB combination, 25 A, 30 mA, 400 V AC, Release characteristic: B, 3+N, Leakage current type: AC
RCD/MCB combination, Rated current: 25 A, Fault current rating: 30 mA, Rated operational voltage (Ue): 400 V AC, Release characteristic: B, Number of poles: 3+N, Leakage current type: AC, Operating amperating temperature: -25 - 50 °C, Degree of protetion: IP20, IP40, Built-in depth: 70 mm
9010653116486
0.44500
MCB/RCCB combination [AFZ810020]
Earth leakage circuit breaker [EC000905]
4
