DKB60N-08PCK
1/5

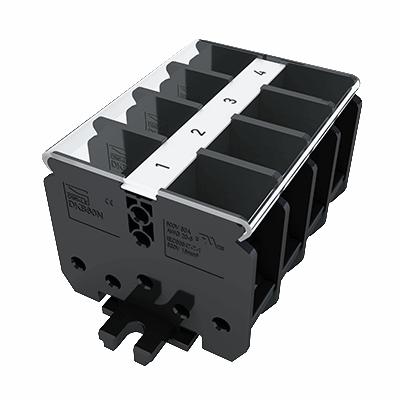

产品预览
PREVIEW
品名
NAME
产品类别
PTCY
间距
PH [mm]
产品颜色
CR
接线方式
CNMD
产品长度
LH [mm]
产品宽度
WH [mm]
产品高度
HH [mm]
电位数
CTDM
产品点数
NROFPS
产品层数
LL
连接点数
CNPS
绝缘材料
IGML
绝缘材料组别
IGMLGP
阻燃等级，符合UL94
UL94FR
绝缘阻抗
INRE
导体材料
CRML
导体表面镀层
POCS
额定电压
RDVE [V]
额定电流
RDCT [A]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
DKB60N-01PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
35
44.5
37
1
01P
1
2
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DKB60N-02PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
49
44.5
37
2
02P
1
4
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DKB60N-03PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
63
44.5
37
3
03P
1
6
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DKB60N-04PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
77
44.5
37
4
04P
1
8
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DKB60N-05PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
91
44.5
37
5
05P
1
10
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DKB60N-06PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
105
44.5
37
6
06P
1
12
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DKB60N-07PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
119
44.5
37
7
07P
1
14
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DKB60N-08PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
133
44.5
37
8
08P
1
16
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DKB60N-09PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
147
44.5
37
9
09P
1
18
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DKB60N-10PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
161
44.5
37
10
10P
1
20
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DKB60N-11PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
175
44.5
37
11
11P
1
22
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DKB60N-12PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
189
44.5
37
12
12P
1
24
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DKB60N-13PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
203
44.5
37
13
13P
1
26
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DKB60N-14PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
217
44.5
37
14
14P
1
28
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DKB60N-15PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
231
44.5
37
15
15P
1
30
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DKB60N-16PCK
Panel Mounting
14.00
BLACK (default)
Screw Connection
245
44.5
37
16
16P
1
32
PC
IIIa
V2
≥1000MΩ at DC 500V
COPPER ALLOY
Tin PLATED
630
57 76( with Fork Terminal)
DINKLE - DKB60N-XXPCK
| 订购编码 | DKB60N-08PCK |
| Shorttext | Panel Mounting,Screw Connection,Pitch:14.00mm,M5,600V 60A |
| 上次修改 | 04.12.2024 09:24:22 |
