266739
1/5
Preview
PREVIEW
PLID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Netto weight
NETTO_WEIGHT [kg]
ECLASS-13.0
ECLASS_13_0
ETIM-10.0
ETIM_10_0
Number of poles [EF001391]
EF001391
1
2

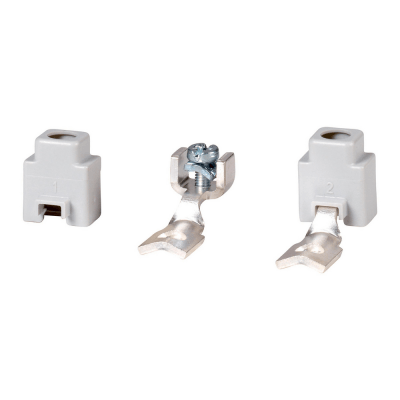

266739
NZM-XSTK
Control circuit terminal, box terminal
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. contains parts for two terminal locations located at top or bottom for 3 or 4 pole switches. Included as standard with tunnel terminal. Degree of protection IP1X. NZM-XSTK cannot be combined with IP2X protection against contact with a finger and NZM1(-4)-XIPK. Height and thickness of control terminals NZM-XSTK = 2mm, NZM-XSTS = 2mm. Can be used for: NZM3(-4), PN3, N(N/O)3(-4)
4015082667399
0.017
Terminal (not overhead line, unspecified) [AKN684018]
Distribution terminal block [EC000276]
1

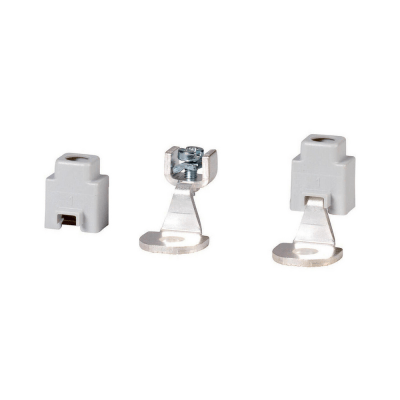

260150
NZM1-XSTS
Control circuit terminal, screw connection
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. contains parts for two terminal locations located at top or bottom for 3 or 4 pole switches. Included as standard with tunnel terminal. Degree of protection IP1X. NZM-XSTK cannot be combined with IP2X protection against contact with a finger and NZM1(-4)-XIPK. Height and thickness of control terminals NZM-XSTK = 2mm, NZM-XSTS = 2mm. Can be used for: NZM1(-4), PN1(-4), N(N/O)1(-4)
4015082601508
0.021
Terminal (not overhead line, unspecified) [AKN684018]
Distribution terminal block [EC000276]
1
Eaton's CAD - Distribution terminal block [EC000276]
| 订购编码 | 266739 |
| 上次修改 | 03.09.2026 18:12:51 |
