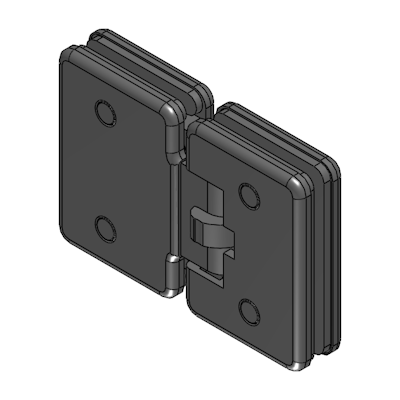

CO 8611 Automatic
1/5
Brand
MAR
Description
BEZ
Model number
MN
Opening angle
ROT [°]
Glass thickness
GS [mm]
As-delivered condition / Routing picture
FORM
Overall length
L [mm]
Overall width
B [mm]
Overall depth
T [mm]
Load capacity
BW [kg]
Hold open
FS [°]
Automatic closing
AS [°]
Temperature resistance
TBK [°C]
Max. door width
MTB [mm]
INFO LINK
PL
Product weight
PG [kg]
Short text
KTXT
Specification text
ATXT
1
COLLIO
CO 8611 Automatic
0
8
100
146
27
50
+ 90°|- 90°
+ 85°|- 85°
900
HTML
0.8
with central fixing (glass-glass) for double action residential glass doors
SIMONSWERK screw-on hinge system for glass doors, COLLIO CO 8611 Automatic, with central fixing (glass-glass) for double action residential glass doors, maximum load capacity 50 kg per pair of hinges, automatic hinge, for use with glass-glass combinations, for double action doors, stop at + 90° and - 90°, automatic closing from + 85° and - 85°. Finishes...
SIMONSWERK - CO 8611 Automatic
| 订购编码 | CO 8611 Automatic |
| 简短文本 | COLLIO, 50kg |
| 上次修改 | 05.03.2025 12:49:34 |
