Pepperl+Fuchs
Proximity Sensors
Capacitive Sensors
CBB4-12GH70-E0 - Capacitive Sensors
Pepperl+Fuchs
Proximity Sensors
Capacitive Sensors
CBB4-12GH70-E0 - Capacitive Sensors
1/5
1
1
2|0
3
4
4
0
0
0
0
0
0
0
0
0
0

CBB4-12GH70-E0

Expand Table
1/5

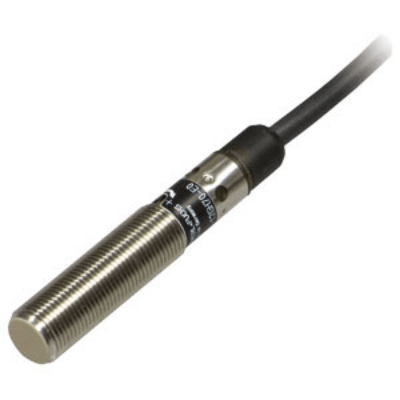

Product Picture
PRODUCT_PICTURE
MANUID
Short Description
DESCSHORT
EAN
Manufacturer Type Description
MANUTYPEDESC
Maximum operating ambient temperature
AAS155001 [°C]
Minimum operating ambient temperature
AAS160001 [°C]
mechanical installation conditions
BAD866007
Switching distance
BAD815006 [mm]
Material of the active surface
BAD946007
Voltage type
BAD915006
Material of the cable mantle
AAD251006
Design of control element
BAD899008
Diameter of sensor
BAD826005 [mm]
1
CBB4-12GH70-E0
Capacitive sensor CBB4-12GH70-E0
4050143026432
CBB4-12GH70-E0
70.00
-25.00
flush
4
Plastic
DC
12
显示压缩表示形式 (1 Produkt)
零部件信息
相似件
Request for quote (RFQ)
Pepperl+Fuchs - CBB4-12GH70-E0
订购编码CBB4-12GH70-E0
ShorttextCapacitive sensor CBB4-12GH70-E0
上次修改13.12.2022 15:41:45
单位
关键字

分类

CNS

CNSERPBASE Object Properties
Customs Tariff Number8536 5019 900 [DE]
Description shortCapacitive sensor CBB4-12GH70-E0
Order NumberCBB4-12GH70-E0

ECLASS 14.0

27-27-42-01 电容性接近开关
最高环境温度70.00 °C
活动面的原材料Plastic

ECLASS 12.0

27-27-42-01 电容性接近开关
最高环境温度70.00 °C
活动面的原材料Plastic

ECLASS 11.1

27-27-01-02 电容性接近开关
最高环境温度70.00 °C
活动面的原材料Plastic

ECLASS 11.0

27-27-01-02 电容性接近开关
最高环境温度70.00 °C
外壳材料stainless steel - 1.4404
操作距离4 mm
传感器的直径12 mm
电路连接说明with cable preassembled
外壳结构类型cylinder, thread
传感器长度70 mm
机械安装条件flush
转换输出说明NPN
转换频率50.000 Hz
电压类型DC
活动面的原材料Plastic

ECLASS 10.1

27-27-01-02 电容性接近开关
max. operating ambient temperature70.00 °C
min. operating ambient temperature-25.00 °C
外壳材料stainless steel - 1.4404
操作距离4 mm
传感器的直径12 mm
电路连接说明with cable preassembled
外壳结构类型cylinder, thread
传感器长度70 mm
机械安装条件flush
转换输出说明NPN
转换频率50.000 Hz
电压类型DC
活动面的原材料Plastic

ECLASS 9.1

27-27-01-02 电容性接近开关
Maximum operating ambient temperature70.00 °C
Minimum operating ambient temperature-25.00 °C
外壳材料stainless steel - 1.4404
操作距离4 mm
传感器的直径12 mm
电路连接说明with cable preassembled
外壳结构类型cylinder, thread
传感器长度70 mm
机械安装条件flush
转换输出说明NPN
转换频率50.000 Hz
电压类型DC
活动面的原材料Plastic

ETIM 10.0

EC002715 Capacitive proximity switch

ETIM 8.0

EC002715 Capacitive proximity switch
Material housingstainless steel - 1.4404
Switching distance4 mm
Diameter sensor12 mm
Type of electric connectionwith cable preassembled
Construction type housingcylinder, thread
Length of sensor70 mm
Mechanical mounting condition for sensorflush
Type of switching outputNPN
Switching frequency50.000 Hz
Voltage typeDC

ETIM 7.0

EC002715 Capacitive proximity switch
Material housingstainless steel - 1.4404
Switching distance4 mm
Diameter sensor12 mm
Type of electric connectionwith cable preassembled
Construction type housingcylinder, thread
Length of sensor70 mm
Mechanical mounting condition for sensorflush
Type of switching outputNPN
Switching frequency50.000 Hz
Voltage typeDC
