DEHN
Surge Protection for IT Systems
Compact DIN Rail Mounted SPDs
BLITZDUCTORconnect - Compact
BCO ML2 BE 24 - Modular combined arrester for 2 single wires BLITZDUCTORconnect with fault indicator
DEHN
BCO ML2 BE 24 - Modular combined arrester for 2 single wires BLITZDUCTORconnect with fault indicator
1/5
1
1
2|0
3
4
4
0
0
0
0
0
0
0
0
0
0

927942 BCO CL2 BD 12

Expand Table
1/5
Manufacturer Name
MANUNAME
Preview picture
PREVIEW_PICTURE
Manufacturer Type Description
MANUTYPEDESC
Article number
MANUID
Short Description
DS
Long Description
DL
Weight
WEIGHT [kg]
International product number
GTIN
Customs tariff number
CTN
Nominal voltage DC
EF008799 [V]
Max. continuous voltage AC
EF004198 [V]
1
DEHN SE

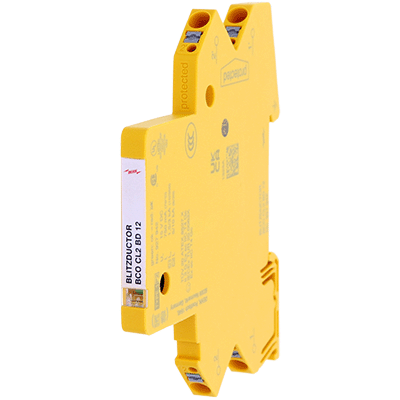

BCO CL2 BD 12
927942
Compact combined arrester for 1 double wire BLITZDUCTORconnect with fault indicator
Space-saving, compact combined surge arrester with a width of 6 mm and push-in connection technology with status indicator for protecting one pair of floating symmetrical interfaces.
0.033
4013364411777
85363010
12.0-12.0
10.6
显示压缩表示形式 (1 Produkt)
零部件信息
相似件
Request for quote (RFQ)
DEHN - BCO ML2 BE 24
ShorttextCompact combined arrester for 1 pair BCO with fault indication
LongtextSpace-saving, compact combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting one pair of unearthed balanced interfaces.
上次修改13.05.2026 07:40:56
单位
关键字

分类

CNS

CNSERPBASE Object Properties
Customs Tariff Number85363010
Description longSpace-saving, compact combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting one pair of unearthed balanced interfaces.
Description shortCompact combined arrester for 1 pair BCO with fault indication
Order Number927942
Type CodeBCO CL2 BD 12
REACH认证Yes
RoHS认证Yes
Customs Tariff Number85363010
GTIN-Code4013364411777
Order Number927942
CNSPHYPROP Physical Properties
CNSPHYPROP Physical Properties

ECLASS 14.0

27-17-15-01 MSR 技术
27-17-16-02 能源与信息技术

ECLASS 13.0

27-17-15-01 MSR technology
27-17-16-02 Energy and Information Technology

ECLASS 12.0

27-17-15-01 MSR technology

ETIM 10.0

EC001625 Combined arrester for data networks/MCR-technology
Mounting methodDIN rail (top hat rail) 35 mm
Connection 1Push-in terminal
Lightning impulse current (10/350 µs)3.0 kA
With remote signalling contactfalse
Number of conductors (without earthing)2
Limiting frequency2.6 MHz
Explosion-tested versionfalse
Max. continuous voltage AC10.6 V
Nominal discharge surge current (8/20)10 kA
Nominal load current0.75 A
Voltage protection level core/core32 V
Voltage protection level core/earth600 V
Max. continuous voltage DC15.0 V
Degree of protection (IP)IP20
Nominal voltage DC12.0-12.0 V
Pro-active thermo-controltrue
Assembly width6 mm
Signal disconnectionfalse
Earthing viaDIN rail (top hat rail)

ETIM 9.0

EC001625 Combined arrester for data networks/MCR-technology
Mounting methodDIN rail (top hat rail) 35 mm
Connection 1Push-in terminal
Lightning impulse current (10/350 µs)3.0 kA
With remote signalling contactfalse
Number of conductors (without earthing)2
Limiting frequency2.6 MHz
Explosion-tested versionfalse
Max. continuous voltage AC10.6 V
Nominal discharge surge current (8/20)10 kA
Nominal load current0.75 A
Voltage protection level core/core32 V
Voltage protection level core/earth600 V
Max. continuous voltage DC15.0 V
Degree of protection (IP)IP20
Nominal voltage DC12.0-12.0 V
Pro-active thermo-controltrue
Assembly width6 mm
Signal disconnectionfalse
Earthing viaDIN rail (top hat rail)

OmniClass 2006

23-85_80_11_21 23-85 80 11 21 Energy Monitoring and Controls
