FNG.1B.307.CYCD76
1/5
PREVIEW
Part number
SKU
Description
DESC
Cable diameter (min) in mm
CABLEMIN [mm]
Cable diameter (max) in mm
CABLEMAX [mm]
Housing material
HOUSING
KEYING
Cable termination protection
CABLEPROTECT
Number of contacts Low Voltage
LVCONTACTS
Number of differentiated pairs (High Speed)
DIFFPAIRSHIGHSPEED
AWG min
AWGMIN
AWG max
AWGMAX
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
FNG.1B.302.CLAD42
Straight plug, cable collet and lanyard release
3,1
4,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
2
28
20
FNG.1B.304.CLAD52
Straight plug, cable collet and lanyard release
4,3
5,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
4
1
30
22
FNG.1B.304.CLAD62
Straight plug, cable collet and lanyard release
5,3
6,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
4
1
30
22
FNG.1B.305.CLAD52
Straight plug, cable collet and lanyard release
4,3
5,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
5
30
22
FNG.1B.305.CLAD72
Straight plug, cable collet and lanyard release
6,3
7,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
5
30
22
FNG.1B.306.CLAD52
Straight plug, cable collet and lanyard release
4,3
5,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
6
30
22
FNG.1B.306.CLAD62
Straight plug, cable collet and lanyard release
5,3
6,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
6
30
22
FNG.1B.306.CLAD72
Straight plug, cable collet and lanyard release
6,3
7,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
6
30
22
FNG.1B.306.CLAD76
Straight plug, cable collet and lanyard release
7,3
7,6
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
6
30
22
FNG.1B.307.CLAD72
Straight plug, cable collet and lanyard release
6,3
7,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
7
30
22

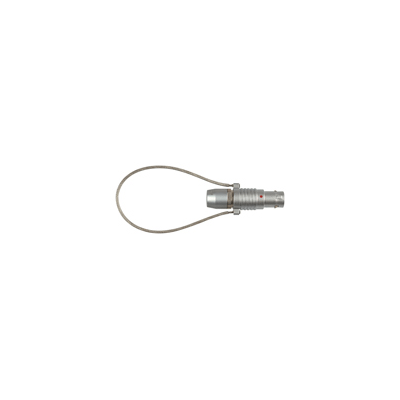

FNG.1B.307.CYCD76
Straight plug, cable collet and lanyard release
7,3
7,6
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
7
26
22
FNG.1B.307.KLAD72
Straight plug, cable collet and lanyard release
6,3
7,2
Metal - Black-Chrome painted Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
7
30
22
FNG.1B.308.CLAD52
Straight plug, cable collet and lanyard release
4,3
5,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
8
4
30
22
FNG.1B.308.CLAD76
Straight plug, cable collet and lanyard release
7,3
7,6
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
8
4
30
22
FNG.1B.308.CYCD52
Straight plug, cable collet and lanyard release
4,3
5,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
8
4
26
22
FNG.1B.308.CYCD72
Straight plug, cable collet and lanyard release
6,3
7,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
8
4
26
22
FNG.1B.310.CLAD62
Straight plug, cable collet and lanyard release
5,3
6,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
10
34
28
FNG.1B.310.CLAD72
Straight plug, cable collet and lanyard release
6,3
7,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
10
34
28
FNG.1B.310.CYCD72
Straight plug, cable collet and lanyard release
6,3
7,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
10
32
28
LEMO - B-2B-FN
| 订购编码 | FNG.1B.307.CYCD76 |
| 简短文本 | Straight plug, cable collet and lanyard release |
| 上次修改 | 21.02.2025 07:33:42 |
| 单位 |
