FIG.2B.306.CLAD92
1/5
PREVIEW
Part number
SKU
Description
DESC
Cable diameter (min) in mm
CABLEMIN [mm]
Cable diameter (max) in mm
CABLEMAX [mm]
Housing material
HOUSING
KEYING
Cable termination protection
CABLEPROTECT
Number of contacts Low Voltage
LVCONTACTS
Number of contacts Coax
COAXCONTACTS
AWG min
AWGMIN
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
FIA.2B.302.CLAD52
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
4,3
5,2
Metal - Chrome plated Brass
2 keys (alpha=30, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
2
22
FIG.2B.302.CLAD52
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
4,3
5,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
2
22
FIG.2B.302.CLAD62
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
5,3
6,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
2
22
FIG.2B.302.CLAD72
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
6,3
7,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
2
22
FIG.2B.303.CLAD62
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
5,3
6,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
3
24
FIG.2B.303.CLAD82
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
7,3
8,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
3
24
FIG.2B.304.CLAD62
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
5,3
6,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
4
28
FIG.2B.304.CLAD82
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
7,3
8,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
4
28
FIG.2B.304.CLAD92
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
8,3
9,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
4
28
FIG.2B.306.CLAD82
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
7,3
8,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
6
28
FIG.2B.306.CLAD92
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
8,3
9,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
6
28
FIG.2B.307.CLAD62
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
5,3
6,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
7
28
FIG.2B.307.CLAD72
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
6,3
7,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
7
28
FIG.2B.307.CLAD92
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
8,3
9,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
7
28
FIG.2B.308.CLAD72
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
6,3
7,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
8
30
FIG.2B.310.CLAD92
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
8,3
9,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
10
30
FIG.2B.312.CLAD62
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
5,3
6,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
12
30
FIG.2B.312.CLAD92
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
8,3
9,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
12
30
FIG.2B.319.CLAD99
Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet
9,3
9,9
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
19
30

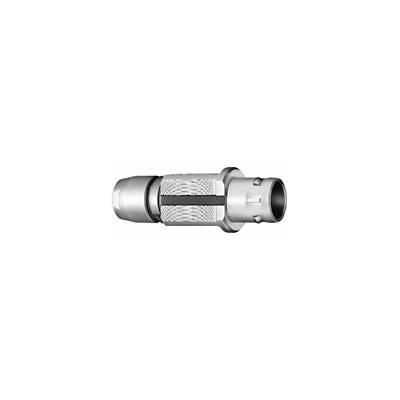

LEMO - B-2B-FI
| 订购编码 | FIG.2B.306.CLAD92 |
| 简短文本 | Straight plug for remote handling, special alignment mark, knurled handling surface, cable collet |
| 上次修改 | 21.02.2025 07:33:36 |
| 单位 |
