FGY.2B.307.PYZD82B
1/5
PREVIEW
Part number
SKU
Description
DESC
Cable diameter (min) in mm
CABLEMIN [mm]
Cable diameter (max) in mm
CABLEMAX [mm]
Housing material
HOUSING
KEYING
Cable termination protection
CABLEPROTECT
Number of contacts Low Voltage
LVCONTACTS
Number of contacts Fiber Optic
FOCONTACTS
AWG min
AWGMIN
AWG max
AWGMAX
1
2
3
4
5
6
7
8
9
10
11
FGY.2B.03A.PLZD72B
Straight plug, cable collet and PSU or PPSU outer shell
6,3
7,2
Plastic - PSU
3 keys (beta=112.5, gamma=100, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
2
FGY.2B.305.PLAD42B
Straight plug, cable collet and PSU or PPSU outer shell
3,3
4,2
Plastic - PSU
3 keys (beta=112.5, gamma=100, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
5
28
20
FGY.2B.306.PLAD62G
Straight plug, cable collet and PSU or PPSU outer shell
5,3
6,2
Plastic - PSU
3 keys (beta=112.5, gamma=100, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
6
28
20
FGY.2B.306.PYCD62G
Straight plug, cable collet and PSU or PPSU outer shell
5,3
6,2
Plastic - PSU
3 keys (beta=112.5, gamma=100, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
6
20
18
FGY.2B.307.PYZD82B
Straight plug, cable collet and PSU or PPSU outer shell
7,3
8,2
Plastic - PSU
3 keys (beta=112.5, gamma=100, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
7
28
20
FGY.2B.310.PLAD52B
Straight plug, cable collet and PSU or PPSU outer shell
4,3
5,2
Plastic - PSU
3 keys (beta=112.5, gamma=100, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
10
30
22
FGY.2B.310.PLAD62B
Straight plug, cable collet and PSU or PPSU outer shell
5,3
6,2
Plastic - PSU
3 keys (beta=112.5, gamma=100, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
10
30
22
FGY.2B.310.PLAD72B
Straight plug, cable collet and PSU or PPSU outer shell
6,3
7,2
Plastic - PSU
3 keys (beta=112.5, gamma=100, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
10
30
22
FGY.2B.318.PLAD82B
Straight plug, cable collet and PSU or PPSU outer shell
7,3
8,2
Plastic - PSU
3 keys (beta=112.5, gamma=100, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
18
30
22
FGY.2B.319.PLAD72B
Straight plug, cable collet and PSU or PPSU outer shell
6,3
7,2
Plastic - PSU
3 keys (beta=112.5, gamma=100, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
19
30
22
FGY.2B.326.PLAD92B
Straight plug, cable collet and PSU or PPSU outer shell
8,3
9,2
Plastic - PSU
3 keys (beta=112.5, gamma=100, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
26
34
28

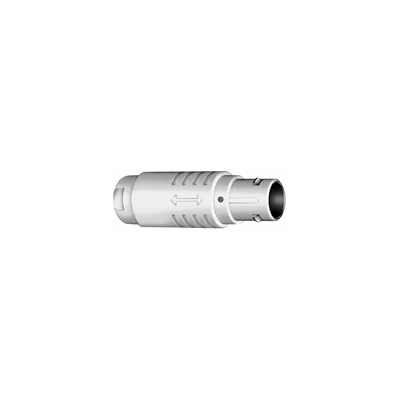

LEMO - B-2B-FG-PSU
| 订购编码 | FGY.2B.307.PYZD82B |
| 简短文本 | Straight plug, cable collet and PSU or PPSU outer shell |
| 上次修改 | 21.02.2025 07:33:30 |
