EHG.00.304.CYM
1/5
PREVIEW
Part number
SKU
Description
DESC
Housing material
HOUSING
KEYING
Number of contacts Low Voltage
LVCONTACTS
AWG min
AWGMIN
AWG max
AWGMAX
IP Rating
IP
Contact Termination Low Voltage
LVTERMINATION
Connector type
CONNECTORTYPE
1
EHG.00.304.CYM

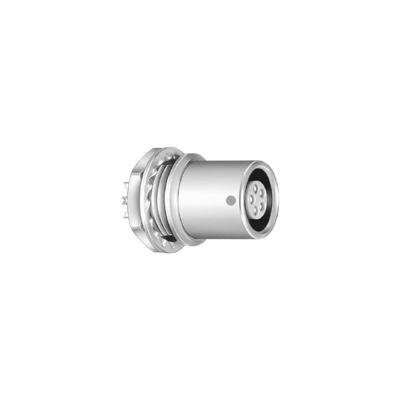

Fixed receptacle, nut fixing and protruding shell. No hardware (washer/nut).
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
4
32
28
IP50
Crimp
Socket
LEMO - B-1B-EH
| 订购编码 | EHG.00.304.CYM |
| 简短文本 | Fixed receptacle, nut fixing and protruding shell. No hardware (washer/nut). |
| 上次修改 | 21.02.2025 07:33:38 |
| 单位 |
分类
