FGJ.2B.312.CYZD82
1/5
PREVIEW
Part number
SKU
Description
DESC
Cable diameter (min) in mm
CABLEMIN [mm]
Cable diameter (max) in mm
CABLEMAX [mm]
Housing material
HOUSING
KEYING
Cable termination protection
CABLEPROTECT
COLOR
Number of contacts Low Voltage
LVCONTACTS
Number of contacts High Voltage
HVCONTACTS
Number of contacts Fiber Optic
FOCONTACTS
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
FGJ.2B.312.CLLD62
Straight plug, cable collet
5,3
6,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
12
FGJ.2B.312.CLLD72
Straight plug, cable collet
6,3
7,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
12
FGJ.2B.312.CLLD82
Straight plug, cable collet
7,3
8,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
12
FGJ.2B.312.CLLD92
Straight plug, cable collet
8,3
9,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
12
FGJ.2B.312.CLLD99
Straight plug, cable collet
9,3
9,9
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
12
FGJ.2B.312.CYMD52
Straight plug, cable collet
4,3
5,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
12
FGJ.2B.312.CYMD62
Straight plug, cable collet
5,3
6,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
12
FGJ.2B.312.CYMD92
Straight plug, cable collet
8,3
9,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
12
FGJ.2B.312.CYMD99
Straight plug, cable collet
9,3
9,9
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
12
FGJ.2B.312.CYPD52
Straight plug, cable collet
4,3
5,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
12
FGJ.2B.312.CYZD82
Straight plug, cable collet
7,3
8,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
12
FGJ.2B.314.CLLD62
Straight plug, cable collet
5,3
6,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
14
FGJ.2B.314.CLLD72
Straight plug, cable collet
6,3
7,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
14
FGJ.2B.314.CLLD82
Straight plug, cable collet
7,3
8,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
14
FGJ.2B.314.CLLD92
Straight plug, cable collet
8,3
9,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
14
FGJ.2B.314.CLLD99
Straight plug, cable collet
9,3
9,9
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
14
FGJ.2B.314.CYMD62
Straight plug, cable collet
5,3
6,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
14
FGJ.2B.314.CYMD82
Straight plug, cable collet
7,3
8,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
14
FGJ.2B.314.CYMD92
Straight plug, cable collet
8,3
9,2
Metal - Chrome plated Brass
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Standard back nut (no additional protection)
14

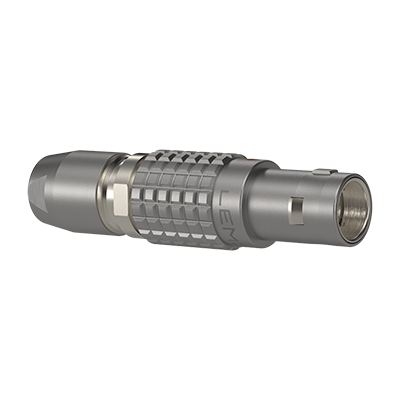

LEMO - B-0B-FG
| 订购编码 | FGJ.2B.312.CYZD82 |
| 简短文本 | Straight plug, cable collet |
| 上次修改 | 21.02.2025 07:33:29 |
| 单位 |
分类
