FFG.0B.304.CLAN16
1/5
PREVIEW
Part number
SKU
Description
DESC
Cable diameter (min) in mm
CABLEMIN [mm]
Cable diameter (max) in mm
CABLEMAX [mm]
Housing material
HOUSING
KEYING
Cable termination protection
CABLEPROTECT
Number of contacts Low Voltage
LVCONTACTS
Number of differentiated pairs (High Speed)
DIFFPAIRSHIGHSPEED
AWG min
AWGMIN
AWG max
AWGMAX
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
FFG.0B.302.CYCD42
Straight plug, non-latching, cable collet
3,3
4,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
2
24
20
FFG.0B.302.CYCD52
Straight plug, non-latching, cable collet
4,3
5,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
2
24
20
FFG.0B.303.CLAD32
Straight plug, non-latching, cable collet
2,3
3,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
3
28
20
FFG.0B.303.CLAD42
Straight plug, non-latching, cable collet
3,3
4,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
3
28
20
FFG.0B.303.CLAD52
Straight plug, non-latching, cable collet
4,3
5,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
3
28
20
FFG.0B.303.CYCD52
Straight plug, non-latching, cable collet
4,3
5,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
3
24
20
FFG.0B.303.CYCD56
Straight plug, non-latching, cable collet
5,3
5,6
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
3
24
20
FFG.0B.304.CLAD42
Straight plug, non-latching, cable collet
3,3
4,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
4
1
30
22
FFG.0B.304.CLAD52
Straight plug, non-latching, cable collet
4,3
5,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
4
1
30
22
FFG.0B.304.CLAD56
Straight plug, non-latching, cable collet
5,3
5,6
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
4
1
30
22

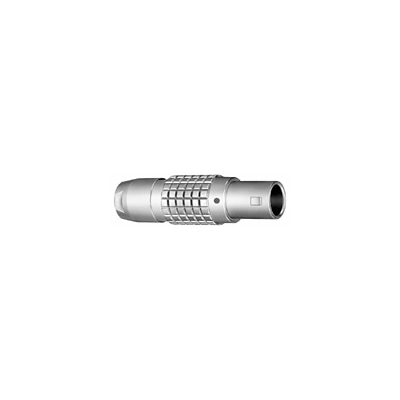

FFG.0B.304.CLAN16
Straight plug, non-latching, cable collet
1,2
1,55
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
4
1
30
22
FFG.0B.304.CLAN21
Straight plug, non-latching, cable collet
1,6
2,05
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
4
1
30
22
FFG.0B.304.CYCD32
Straight plug, non-latching, cable collet
2,3
3,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
4
1
26
22
FFG.0B.304.CYCD42
Straight plug, non-latching, cable collet
3,3
4,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
4
1
26
22
FFG.0B.304.CYCD52
Straight plug, non-latching, cable collet
4,3
5,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
4
1
26
22
FFG.0B.305.CLAD32
Straight plug, non-latching, cable collet
2,3
3,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
5
30
22
FFG.0B.305.CLAD42
Straight plug, non-latching, cable collet
3,3
4,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
5
30
22
FFG.0B.305.CLAD52
Straight plug, non-latching, cable collet
4,3
5,2
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
5
30
22
FFG.0B.305.CLAD56
Straight plug, non-latching, cable collet
5,3
5,6
Metal - Chrome plated Brass
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Standard back nut (no additional protection)
5
30
22
LEMO - B-0B-FF
| 订购编码 | FFG.0B.304.CLAN16 |
| 简短文本 | Straight plug, non-latching, cable collet |
| 上次修改 | 21.02.2025 07:33:30 |
| 单位 |
