284730
1/5
Preview
PREVIEW
PLID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Netto weight
NETTO_WEIGHT [kg]
ECLASS-13.0
ECLASS_13_0
ETIM-10.0
ETIM_10_0
Voltage rating [EF000228]
EF000228 [V]
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
248432

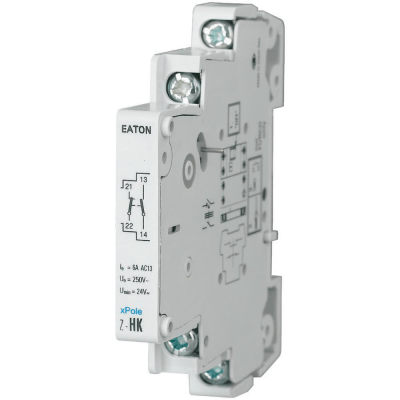

Z-HK
Auxiliary contact, 1N/O+1N/C, 8 A, 250 V AC
PFIM, PFHM-4p, dRCM, PFR, + 1N/O for 1N/C, 0.5auxiliary contacts, for PFIM, PFHM-4p, dRCM, PFR, 1N/O+1N/C, 0.5 SU auxiliary contact, 1N/O+1N/CSU
4015082484323
0.040
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
230
248443

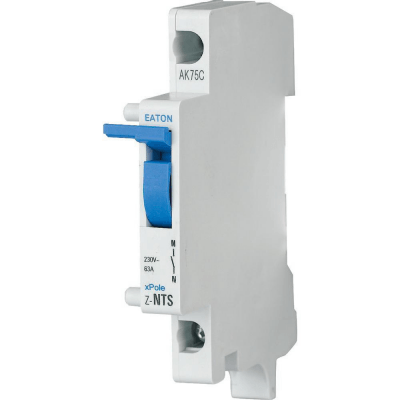

Z-NTS
Neutral line disconnector
Neutral line disconnector
4015082484439
0.065
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
230
248286

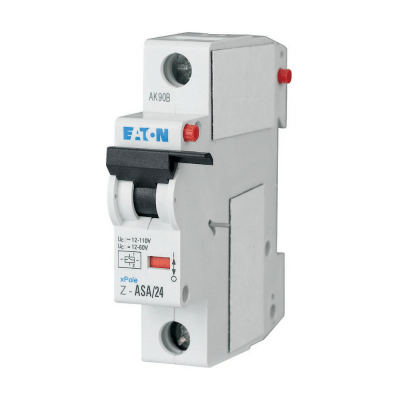

Z-ASA/24
Shunt release, 12-110V, 1HP
Shunt release, adhesive, voltage range 12-110V AC / 12-60V DC, frequency 50/60hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), DIN rail mounting, terminal cross-section 1–25 mm² can be mounted subsequently to PLS, PL6, PL7, HN, HL, PXL, PKN, PXK, PKDM, ZP-A, Z-MS
4015082482862
0.092
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
24
248439

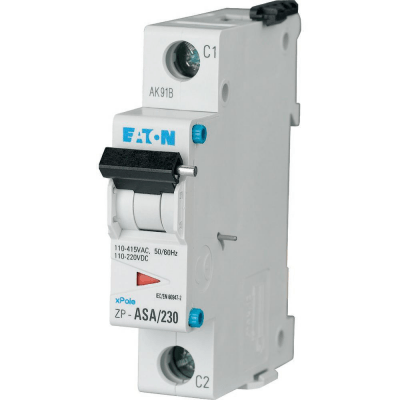

ZP-ASA/230
Shunt release, 110-415V, 1HP
Shunt release, snap-fit, voltage range 110-415V AC / 110-220V DC, frequency 50/60hz, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1–25 mm²
4015082484392
0.087
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
230
248290
Z-USA/400
Undervoltage release, 400 V, non-delayed, 1HP
Undervoltage release screwable, rated operating voltage 400V AC, non-delayed function, frequency 50-60hz, closing threshold 80% of Un, tripping threshold below 30% of Un, standard front dimension 45 mm, mounting width 1 MU (17.5mm), DIN-rail mounting, terminal cross-section 1-2x2.5 mm²
4015082482909
0.104
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
400

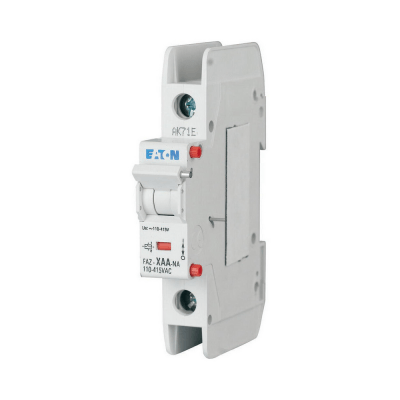

102036
FAZ-XAA-NA110-415VAC
Shunt release, up to 40A, 110-415V, 1HP
Shunt release, for MCB up to 40A, voltage range 110-415V AC / 110-230V DC, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section AWG 18-10
4015081019274
0.110
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
415

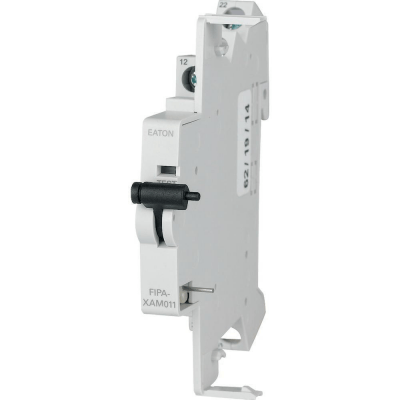

262578
FIPA-XAM011
Auxiliary contact, for FI…, 1W+1N/C, 0.5HP
Eaton Distribution board accessory, Fuse switch disconnector, 3p, NH2, AC23, 35BC205BMC
4015082625788
0.060
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
230
248291
Z-USD/230
Undervoltage release, 230 V, delayed 0, 4N/O, 1HP
Undervoltage release screwable, rated operating voltage 230V AC, delayed function 0.4s, frequency 50-60hz, closing threshold 80% of Un, tripping threshold below 30% of Un, standard front dimension 45 mm, mounting width 1 MU (17.5mm), DIN-rail mounting, terminal cross-section 1-2x2.5 mm²
4015082482916
0.106
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
230

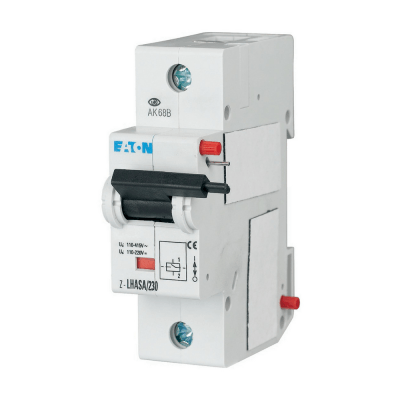

248442
Z-LHASA/230
Shunt release, up to 125A, 110-415V, 1.5HP
Shunt release, for MCB up to 125A, voltage range 110-415V AC, max. current consumption at switch-on time Un 2 A, frequency 50/60hz, can be retrofitted, standard front dimension 45 mm, mounting width 1.5 space units (27mm), top-hat rail mounting, terminal cross-section 1–25 mm²
4015082484422
0.158
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
230
131784

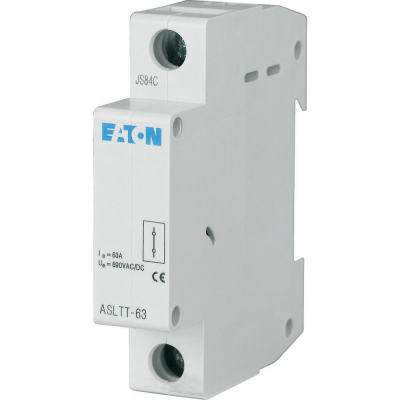

ASLTT-63
Through terminals, 500VAC/DC, 63A, 50/60Hz, 1HP
The through terminal created order in the overvoltage diverters' wiring. When connections must be produced from the upper to the lower arrester connection level, i.e. in the vertical direction, this serves as a through terminal.
5019586148940
0.108
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
690

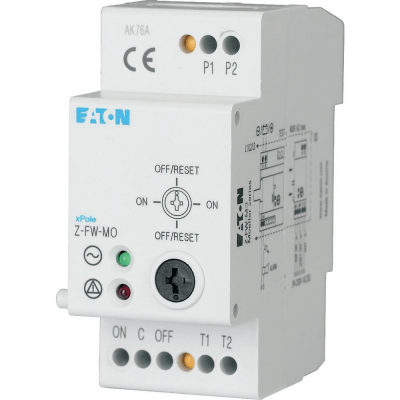

284730
Z-FW-MO
Restarting device, 24-240V, 2HP
Remote switching module, control voltage for remote control 24-230V AC relay output for tripping test 400V AC max., functions: automatic restart + ON/OFF/TEST, cap installation dimension 45mm, mounting width 2 SU (35mm), top-hat rail mounting, terminal cross-section 4x1.5 mm² or 2x2.5 mm²
4015082847302
0.076
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
230
248299
Z-FW/010
Remote testing module, max. 400V-AC, 0.1A, 0.5HP
Remote testing module, relay output for tripping test max. 400 V AC, rated fault current 0.1 A, 0.5 SU
4015082482992
0.040
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
-
290172

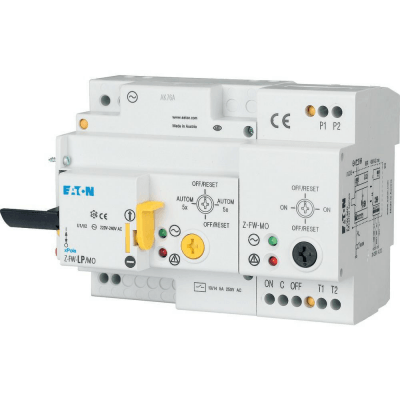

Z-FW-LPD/MO
Restarting device-set, 24-48VDC, 6HP
Set consisting of restarting device and switch module, operational voltage 24-48V DC, frequency 50/60 Hz, functions: automatic restart, cap installation dimension 45mm, mounting width 6 SU (105mm), top-hat rail mounting, terminal cross-section 2x1.5 mm² or 1x2.5 mm²
4015082901721
0.324
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
48

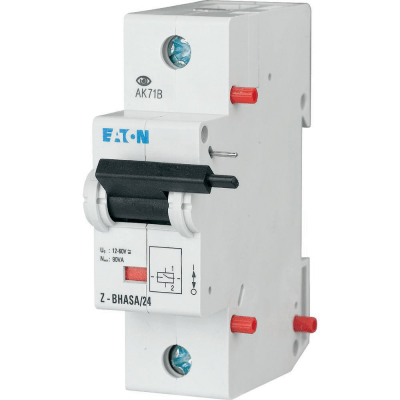

248444
Z-BHASA/24
Shunt release, 12-60V, 1.5HP
Shunt release, for residual current circuit-breaker unit, voltage range 12-60V AC / 12-60V DC, minimum pulse duration 15ms, standard front dimension 45 mm, mounting width 1.5 space units (27mm), top-hat rail mounting, terminal cross-section 2.5-30 mm²
4015082484446
0.158
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
24

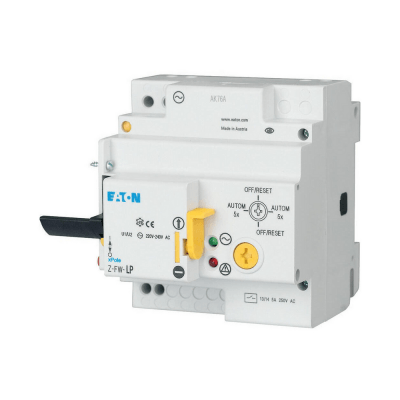

248296
Z-FW-LP
Restarting device, 220-240VAC, 4HP
Restarting device, operational voltage 220-240V AC, frequency 50/60 Hz, functions: automatic restart, cap installation dimension 45mm, mounting width 4 SU (70mm), top-hat rail mounting, terminal cross-section 2x1.5 mm² or 1x2.5 mm²
4015082482961
0.298
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
230

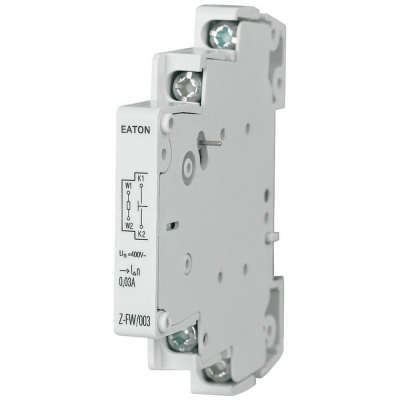

248298
Z-FW/003
Remote testing module, max. 400V-AC, 0.03A, 0.5HP
Remote testing module, relay output for tripping test max. 400 V AC, rated fault current 0.03 A, 0.5 SU
4015082482985
0.040
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
-

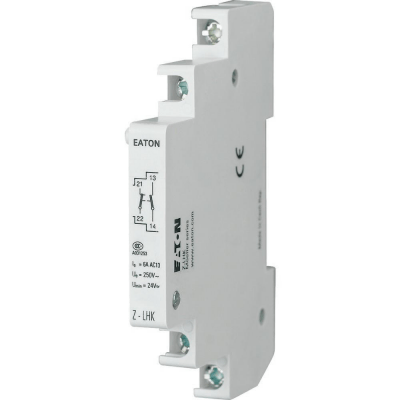

248440
Z-LHK
Auxiliary contact, for PLHT/AZ, 1N/O+1N/C, 0.5HP
PLHT/AZ, + 1N/O for 1N/C, 0.5 auxiliary contacts, for PLHT/AZ, 1N/O+1N/C, 0.5 SU auxiliary contact, 1N/O+1N/CSU
4015082484408
0.041
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
230
265244
Z-FW-LPD
Restarting device, 24-48VDC, 4HP
Restarting device, operational voltage 24-48V DC, frequency 50/60 Hz, functions: automatic restart, cap installation dimension 45mm, mounting width 4 SU (70mm), top-hat rail mounting, terminal cross-section 2x1.5 mm² or 1x2.5 mm²
4015082652449
0.247
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
48
102037
FAZ-XAA-NA12-110VAC
Shunt release, up to 63A, 12-110V
Shunt release, for MCB up to 63A, voltage range 12-110V AC / 12-60V DC, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section AWG 18-10
4015081019281
0.110
Auxiliary contact unit for distribution board [AKE327018]
Auxiliary device for distribution board devices [EC001286]
110
