090351
1/5
Preview
PREVIEW
PLID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Netto weight
NETTO_WEIGHT [kg]
ECLASS-13.0
ECLASS_13_0
ETIM-9.0
ETIM_9_0
Number of contacts as change-over contact [EF008257]
EF008257
1
2
090351
E10

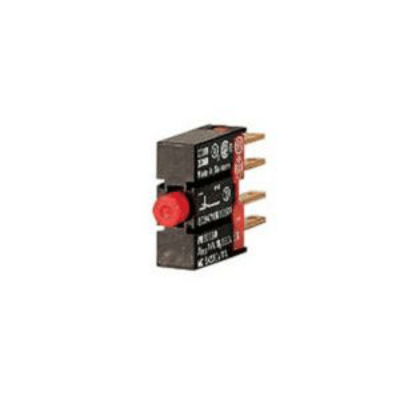

Contact element E10, 1 N/O, Front fastening, Blade terminal
Contact element, Product range: Accessories, Single unit, Connection technique: Blade terminal, Description: admissible operating voltage: 5 – 250 V, Contacts N/O = Normally open: 1 N/O, Degree of Protection: IP20 with ISH2,8, Connection to SmartWire-DT: no
4015080903512
0.00300
Auxiliary switch block [AKN342018]
Auxiliary contact block [EC000041]
0
090401
E01

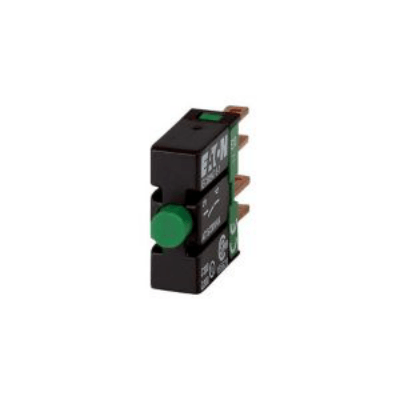

Contact element, 1 N/C, front mount, screw connection
Contact element, Product range: Accessories, Single unit, Connection technique: Blade terminal, Description: admissible operating voltage: 5 – 250 V, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Degree of Protection: IP20 with ISH2,8, Connection to SmartWire-DT: no
4015080904014
0.00300
Auxiliary switch block [AKN342018]
Auxiliary contact block [EC000041]
0
Eaton's CAD - Auxiliary contact block [EC000041]
| 订购编码 | 090351 |
| 上次修改 | 11.12.2025 11:15:06 |
