Preview
PREVIEW
PLID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Netto weight
NETTO_WEIGHT [kg]
ECLASS-13.0
ECLASS_13_0
ETIM-9.0
ETIM_9_0
Number of contacts as change-over contact [EF008257]
EF008257
1
062031

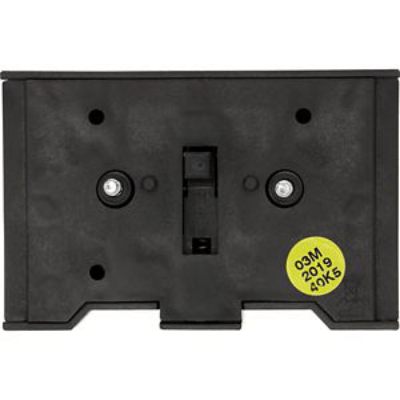

HI11-P1/P3Z
Auxiliary contact, 1 N/O, 1 NC, For use with P1, P3, intermediate
Auxiliary contact, Product range: Accessories, Part group reference: P1, P3, Late-break switching-on behavior, early-make switching-off behavior, The N/O is always connected as a load-shedding contact, For left and/or right side mounting, Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 NC, For use with: P1-…/Z, …/V, …/I2, …/IVS, P3-63/Z, …/V, …/I4, …/IVS, P3-100/Z, …/V, …/I5, …/IVS
4015080620310
0.040
Auxiliary switch block [AKN342018]
Auxiliary contact block [EC000041]
0
Eaton's CAD - Auxiliary contact block [EC000041]
| 订购编码 | 062031 |
| 上次修改 | 11.12.2025 11:15:06 |
| 单位 |
