A9L2F620

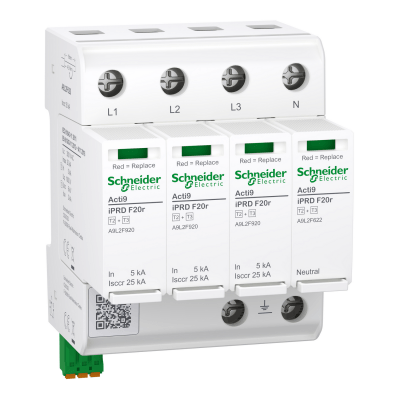

Surge arrester with pluggable cartridge, Acti9 iPRD F20r, 3P+N, 5kA, type 2+3, with fuse, with remote monitoring

Experience this Acti9 iPRD F20r surge arrester which protects industrial and tertiary buildings installations against direct and indirect transient overvoltages. This is a 3P+N modular device with a 2+3 surge arrester class type with a surge adapted backup fuse. it offers a remote monitoring and also a front face local signalling with a green flag when the device is opeartional and with a red flag when the device needs to be changed. This surge arrester allows quick replacement of withdrawable cartridges when they are damaged. It is compatible with TT and TN-S earthing system. It works on a Ue rated operational voltage of 230/400VAC under a frequency of 50Hz or 60 Hz. The Uc maximum continuous operating voltage is 300VAC in differential mode (L-N) and 305VAC in common mode (N-PE). The In nominal discharge current is 5kA growing to a Imax maximum discharge current of 20kA with a L-N protection mode and 20kA growing to a Imax maximum discharge current of 40kA with a N-PE protection mode. The Uoc open circuit voltage is 6000V in differential mode (L-N) and common mode (N-PE). The Up voltage protection level is 1kV in differential mode (L-N) and 1.5kV in common mode (N-PE). It is clipped on the DIN rail. The dimensions are (W) 72mm x (H) 90mm x (D) 70mm. The weight is 478g. The IP degree of protection is IP20 with cartridges fitted and device wired. The operating temperature is -40°C to +85°C. This product complies with the EN 61643-11 standard with the 2011, 2012 and A11:2018 amendment. The range iPRD provides a high performance protection and continuity of service with compact or self-protected version devices. The iPRD devices are used in residential as well as in commercial buildings or in industry.

03606487840701

A9L2F620

Schneider Electric

A9L2F620

35.000
