A9L2F320
1/5
PREVIEW
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Product number of the Manufacturer
MANUID
Manufacturer Name
MANUNAME
Manufacturer Type Description
MANUTYPEDESC
max. conductor cross section solid (solid, stranded)
AAG362 [mm^2]
1

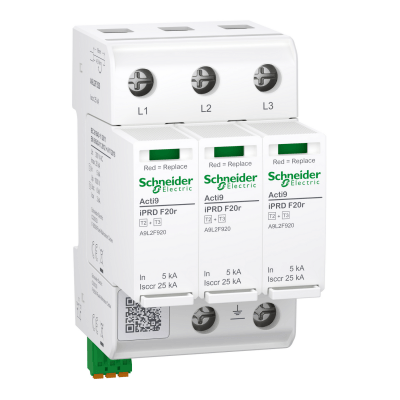

Surge arrester with pluggable cartridge, Acti9 iPRD F20r, 3P, 5kA, type 2+3, with fuse, with remote monitoring
Experience this Acti9 iPRD F20r surge arrester which protects industrial and tertiary buildings installations against direct and indirect transient overvoltages. This is a 3P modular device with a 2+3 surge arrester class type with a surge adapted backup fuse. it offers a remote monitoring and also a front face local signalling with a green flag when the device is opeartional and with a red flag when the device needs to be changed. This surge arrester allows quick replacement of withdrawable cartridges when they are damaged. It is compatible with TN-C earthing system. It works on a Ue rated operational voltage of 230/400VAC under a frequency of 50Hz or 60 Hz. The Uc maximum continuous operating voltage is 300VAC. The In nominal discharge current is 5kA growing to a Imax maximum discharge current of 20kA. The Uoc open circuit voltage is 6000V. The Up voltage protection level is 1kV. It is clipped on the DIN rail. The dimensions are (W) 54mm x (H) 90mm x (D) 70mm. The weight is 407g. The IP degree of protection is IP20 with cartridges fitted and device wired. The operating temperature is -40°C to +85°C. This product complies with the EN 61643-11 standard with the 2011, 2012 and A11:2018 amendment. The range iPRD provides a high performance protection and continuity of service with compact or self-protected version devices. The iPRD devices are used in residential as well as in commercial buildings or in industry.
03606487840718
A9L2F320
Schneider Electric
A9L2F320
35.000
Schneider Electric - A9L2F320
| 订购编码 | A9L2F320 |
| Shorttext | Surge arrester with pluggable cartridge, Acti9 iPRD F20r, 3P, 5kA, type 2+3, with fuse, with remote monitoring |
| Longtext | Experience this Acti9 iPRD F20r surge arrester which protects industrial and tertiary buildings installations against direct and indirect transient overvoltages. This is a 3P modular device with a 2+3 surge arrester class type with a surge adapted backup fuse. it offers a remote monitoring and also a front face local signalling with a green flag when the device is opeartional and with a red flag when the device needs to be changed. This surge arrester allows quick replacement of withdrawable cartridges when they are damaged. It is compatible with TN-C earthing system. It works on a Ue rated operational voltage of 230/400VAC under a frequency of 50Hz or 60 Hz. The Uc maximum continuous operating voltage is 300VAC. The In nominal discharge current is 5kA growing to a Imax maximum discharge current of 20kA. The Uoc open circuit voltage is 6000V. The Up voltage protection level is 1kV. It is clipped on the DIN rail. The dimensions are (W) 54mm x (H) 90mm x (D) 70mm. The weight is 407g. The IP degree of protection is IP20 with cartridges fitted and device wired. The operating temperature is -40°C to +85°C. This product complies with the EN 61643-11 standard with the 2011, 2012 and A11:2018 amendment. The range iPRD provides a high performance protection and continuity of service with compact or self-protected version devices. The iPRD devices are used in residential as well as in commercial buildings or in industry. |
| 上次修改 | 06.02.2026 14:02:17 |
