010282899

Expand Table

主变量

次变量

1/5

Firma/Herstellername

SA010ID04

Armaturen-Typbezeichnung

SA110ID04

Produktbeschreibung

SA700ID30

Beschreibungstext

SA810ID10

Bestell-Nummer

SA810ID03

GTIN-Nummer

SA810ID06

Produkt-Preview

Detaillierungsgrad

LOD

Langtext

LONGDESC

SCHELL GmbH & Co. KG

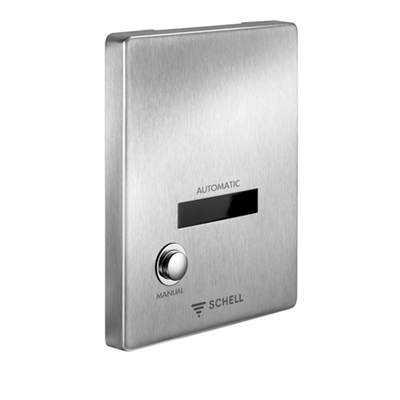

WC-Steuerung EDITION E

WC-Steuerung EDITION E MANUAL, Kartuschenventil, DN5, Edelstahl

WC control EDITION E Manual, Vandal-resistant design, Infrared and button for manual actuation, B 120 mm x H 150 mm x T 12 mm, Front panelBrushed stainless steel

010282899

4021163167207

350

WC control EDITION E Manual Contact-free infrared sensor flushing facility with button for manual actuation. For SCHELL COMPACT II concealed WC flush valve. Automatic triggering when leaving the WC (room monitoring). Dual flush. Suitable for networking with the SCHELL SWS water management system. Configurable via SCHELL Single Control SSC. Power supply via SWS, mains adapter or battery compartment. Scope of delivery Front panel with infrared sensor window and button for manual actuation Mechanical bypass valve for manual actuation in the event of power failure 6 V solenoid valve with pre-filter Self-closing cartridge with automatic nozzle cleaning needle Baffle plate for flow rate regulation Installation frame with infrared sensor electronics, programmable Technical data Setting options via SWS SSC Programming via short range reflex (off/on) Sensor range (short/medium/long) Dual flush (eco flush volume 3 l with dwell time <45 s, main flush volume 4.5/6/9 l) Stagnation flush (off/5-600 s, every 1-240 h after last flush/every 1-240 h) Energy saving mode (off/1-254 h after last flush) Cleaning stop (off/60-360 s) Setting options via short range reflex Sensor range (short/medium/long) Stagnation flush (off/every 24 hours after last flush) Dual flush (eco flush volume 3 l with dwell time <45 s, main flush volume 4.5/6/9 l) Material: Front panel Stainless steel Surface: Front panel Brushed stainless steel Dimensions front plate: w 120 mm x h 150 mm x d 12 mm - 010282899

显示压缩表示(1 konfigurierbares Produkt)
