6096653_Rexa UNI-V06B_M011-523_A
1/5

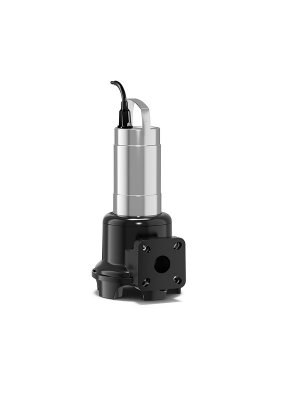

Produktabbildung
PRODUKTABBILDUNG
Article number
ARTICLE_ID
Type code
ARTICLE_NAME
Manufacturer
MANUFACTURER_NAME
Level Of Detail
LOD
Short text
DESCRIPTION_SHORT
Tender text
DESCRIPTION_LONG
Orientation
EF012492
Connection outlet side
EF025977
Angle to first bolt hole
A1 [°]
Thickness flange (incl. sealing edge)
B1 [mm]
Outer diameter of flange
D1 [mm]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
6096644
Rexa UNI-V06A/T011-540/A
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value > 4.5 Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Surface-cooled 3~ motor with thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with CEE plug (16A, 3P+N+PE, 6h). Float switch and thermal motor monitoring connected to the CEE plug. The pump must not be used in hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096645
Rexa UNI-V06A/M011-523/A
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value > 4.5 Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Surface-cooled 1~ motor with integrated operating capacitor and self-switching thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with float switch and fitted plug (CEE7/7). The pump must not be used in hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096646
Rexa UNI-V06A/M011-523/P
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value > 4.5 Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Surface-cooled 1~ motor with integrated operating capacitor and self-switching thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with fitted plug (CEE7/7). The pump may be used in Zone 2 hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096647
Rexa UNI-V06A/T011-540
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value > 4.5 Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Surface-cooled 3~ motor with thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with bare cable ends. The pump may be used in Zone 2 hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096648
Rexa UNI-V06A/T015-540/A
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value > 4.5 Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Surface-cooled 3~ motor with thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with CEE plug (16A, 3P+N+PE, 6h). Float switch and thermal motor monitoring connected to the CEE plug. The pump must not be used in hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096649
Rexa UNI-V06A/M015-523/A
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value > 4.5 Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Surface-cooled 1~ motor with integrated operating capacitor and self-switching thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with float switch and fitted plug (CEE7/7). The pump must not be used in hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096650
Rexa UNI-V06A/M015-523/P
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value > 4.5 Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Surface-cooled 1~ motor with integrated operating capacitor and self-switching thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with fitted plug (CEE7/7). The pump may be used in Zone 2 hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096651
Rexa UNI-V06A/T015-540
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value > 4.5 Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Surface-cooled 3~ motor with thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with bare cable ends. The pump may be used in Zone 2 hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096652
Rexa UNI-V06A/T025-540/A
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value > 4.5 Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Surface-cooled 3~ motor with thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with CEE plug (16A, 3P+N+PE, 6h). Float switch and thermal motor monitoring connected to the CEE plug. The pump must not be used in hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096653
Rexa UNI-V06B/M011-523/A
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value of > 3.5 *Lake- and seawater<BR/>NaCl content (common salt): max. 30 g/l (4 US.oz/US.fl.gal) up to 20 °C (68 °F) *Swimming pool water, max. chloride content: 400 mg/l (23 US.gr/US.fl.gal) Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Surface-cooled 1~ motor with integrated operating capacitor and self-switching thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with float switch and fitted plug (CEE7/7). The pump must not be used in hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096654
Rexa UNI-V06B/T011-540
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value of > 3.5 *Lake- and seawater<BR/>NaCl content (common salt): max. 30 g/l (4 US.oz/US.fl.gal) up to 20 °C (68 °F) *Swimming pool water, max. chloride content: 400 mg/l (23 US.gr/US.fl.gal) Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Surface-cooled 3~ motor with thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with bare cable ends. The pump may be used in Zone 2 hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096655
Rexa UNI-V06B/M015-523/A
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value of > 3.5 *Lake- and seawater<BR/>NaCl content (common salt): max. 30 g/l (4 US.oz/US.fl.gal) up to 20 °C (68 °F) *Swimming pool water, max. chloride content: 400 mg/l (23 US.gr/US.fl.gal) Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Surface-cooled 1~ motor with integrated operating capacitor and self-switching thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with float switch and fitted plug (CEE7/7). The pump must not be used in hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096656
Rexa UNI-V06B/T015-540
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value of > 3.5 *Lake- and seawater<BR/>NaCl content (common salt): max. 30 g/l (4 US.oz/US.fl.gal) up to 20 °C (68 °F) *Swimming pool water, max. chloride content: 400 mg/l (23 US.gr/US.fl.gal) Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Surface-cooled 3~ motor with thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with bare cable ends. The pump may be used in Zone 2 hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096657
Rexa UNI-V06B/T025-540
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value of > 3.5 *Lake- and seawater<BR/>NaCl content (common salt): max. 30 g/l (4 US.oz/US.fl.gal) up to 20 °C (68 °F) *Swimming pool water, max. chloride content: 400 mg/l (23 US.gr/US.fl.gal) Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Surface-cooled 3~ motor with thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with bare cable ends. The pump may be used in Zone 2 hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096658
Rexa UNI-V06K/M011-523/A
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value of > 3.5 *Lake- and seawater<BR/>NaCl content (common salt): max. 30 g/l (4 US.oz/US.fl.gal) up to 20 °C (68 °F) *Swimming pool water, max. chloride content: 400 mg/l (23 US.gr/US.fl.gal) Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Self-cooling 1~ motor (jacket cooling) with integrated operating capacitor and self-switching thermal motor monitoring. Oil-filled sealing chamber with double sealing. Motor housing and cooling jacket made of stainless steel. Detachable connection cable with float switch and fitted plug (CEE7/7). The pump must not be used in hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096659
Rexa UNI-V06K/T011-540
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value of > 3.5 *Lake- and seawater<BR/>NaCl content (common salt): max. 30 g/l (4 US.oz/US.fl.gal) up to 20 °C (68 °F) *Swimming pool water, max. chloride content: 400 mg/l (23 US.gr/US.fl.gal) Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Self-cooling 3~ motor (jacket cooling) with thermal motor monitoring. Oil-filled sealing chamber with double sealing. Motor housing and cooling jacket made of stainless steel. Detachable connection cable with bare cable ends. The pump may be used in Zone 2 hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096660
Rexa UNI-V06K/M015-523/A
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value of > 3.5 *Lake- and seawater<BR/>NaCl content (common salt): max. 30 g/l (4 US.oz/US.fl.gal) up to 20 °C (68 °F) *Swimming pool water, max. chloride content: 400 mg/l (23 US.gr/US.fl.gal) Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Self-cooling 1~ motor (jacket cooling) with integrated operating capacitor and self-switching thermal motor monitoring. Oil-filled sealing chamber with double sealing. Motor housing and cooling jacket made of stainless steel. Detachable connection cable with float switch and fitted plug (CEE7/7). The pump must not be used in hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
6096661
Rexa UNI-V06K/T015-540
WILO SE
350
Submersible pump for stationary and portable wet installation in intermittent operation.
Submersible pump for stationary and portable wet installation in intermittent operation. For pumping in commercial areas of: *Sewage containing faeces *Wastewater (with small amounts of sand and gravel) *Wastewater, slightly acidic with a pH value of > 3.5 *Lake- and seawater<BR/>NaCl content (common salt): max. 30 g/l (4 US.oz/US.fl.gal) up to 20 °C (68 °F) *Swimming pool water, max. chloride content: 400 mg/l (23 US.gr/US.fl.gal) Sewage pumping according to 12050 The pumps meet the requirements of EN 12050-1. Submersible pump with vortex impeller and horizontal flange connection. Flange connection as a combination flange with integrated fixation and flat gasket. Hydraulics housing and impeller made of copolymer. Self-cooling 3~ motor (jacket cooling) with thermal motor monitoring. Oil-filled sealing chamber with double sealing. Motor housing and cooling jacket made of stainless steel. Detachable connection cable with bare cable ends. The pump may be used in Zone 2 hazardous areas.
Horizontal connection
Flange;DN65-PN10-EN1092-2
45
20
185
