Weidmüller
Plant equipment, tool
Hand tool
Edge cutter, cutter
Wire stripper pliers

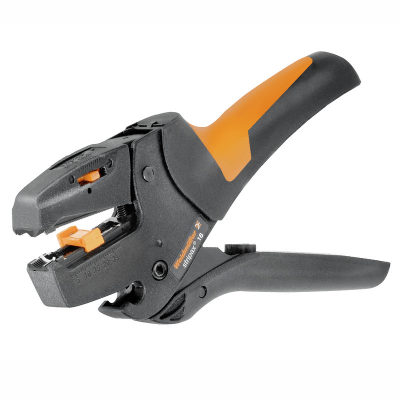

9005610000 - STRIPAX 16
Weidmüller
Plant equipment, tool
Hand tool
Edge cutter, cutter
Wire stripper pliers
9005610000 - STRIPAX 16
1/5
1
2|1
3
4
4
0
0
0
0
0
0
0
0
0
0

Weidmueller 9005610000

Expand Table
EN
1/5
Preview
PREVIEW
Product number of the Manufacturer
MANUID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
GTIN
GTIN
Manufacturer Name
MANUNAME
max. strip diameter (AWG)
AAI997
min. strip diameter (AWG)
AAI998
max. strip range (diameter)
AAI999 [mm]
1
9005610000
STRIPAX 16
Stripping tool, Flexible and solid conductors with PVC insulation, 16 mm², 25 mm
Stripping tool with automatic self-adjustment for precise and fast stripping of conductors.
4008190183875
Weidmueller Group
6
10
4.500
显示压缩表示形式 (1 Produkt)
相似件
零部件信息
Price Trend Risk
STRIPAX 16
标准代码9005610000
描述STRIPAX 16
公司Weidmüller
上次修改25.09.2024 15:41:21
单位
关键字
9005610000,STRIPAX 16,Weidmüller

CNS

CNSERPBASE Object Properties
Customs Tariff Number82032000
Description longStripping tool with automatic self-adjustment for precise and fast stripping of conductors.
Description shortStripping tool, Flexible and solid conductors with PVC insulation, 16 mm², 25 mm
GTIN-Code4008190183875
Order Number9005610000
Product websitehttps://eshop.weidmueller.com/p/9005610000
Use Casehttps://eshop.weidmueller.com/p/9005610000
CNSPHYPROP Physical Properties

ECLASS 14.0

21-04-37-06 剥线钳
最大带材直径 (AWG)6
最小带材直径 (AWG)10
产品类型STRIPAX 16
EAN代码4008190183875
厂商产品编号9005610000
制造商名称Weidmueller Group
品牌stripax®
附加链接地址https://eshop.weidmueller.com/p/9005610000
制造商产品说明Stripping tool, Flexible and solid conductors with PVC insulation, 16 mm², 25 mm
制造商产品名称Stripping tool
最大横截面6

ECLASS 13.0

21-04-37-06 剥线钳
max. strip diameter (AWG)6
min. strip diameter (AWG)10
Product typeSTRIPAX 16
EAN代码4008190183875
厂商产品编号9005610000
制造商名称Weidmueller Group
Brandstripax®
address of additional linkhttps://eshop.weidmueller.com/p/9005610000
Manufacturer product descriptionStripping tool, Flexible and solid conductors with PVC insulation, 16 mm², 25 mm
Manufacturer product designationStripping tool
最大横截面6

ECLASS 12.0

21-04-37-06 剥线钳
customs tariff number (TARIC)82032000
max. strip diameter (AWG)6
min. strip diameter (AWG)10
max. strip range (diameter)4.500
min. strip range (diameter)2.590
max. strip range (cross-section)16
min. strip range (cross-section)6
strip length adjustableYes
wire cutter presentYes
depth of notch adjustableYes
longitudinal section presentNo
round edge presentNo
isolation protection (1000 V) presentNo
spiral cut possibleNo
Product typeSTRIPAX 16
EAN代码4008190183875
厂商产品编号9005610000
制造商名称Weidmueller Group
Brandstripax®
address of additional linkhttps://eshop.weidmueller.com/p/9005610000
Manufacturer product descriptionStripping tool, Flexible and solid conductors with PVC insulation, 16 mm², 25 mm
Manufacturer product designationStripping tool
长度190
最大横截面6
绝缘Yes

ETIM 9.0

EC002109 Wire stripper pliers

ETIM 8.0

EC002109 Wire stripper pliers
Strip range diameter4.500
Strip range cross-section16
Strip length adjustableYes
With wire cutterYes
Depth of notch adjustableYes
Longitudinal sectionNo
Round edgeNo
Isolation protection 1000 VNo
Spiral cutNo
Length190
InsulatedYes
