ATEC Abgas-Technologie
Acoustic enclosure

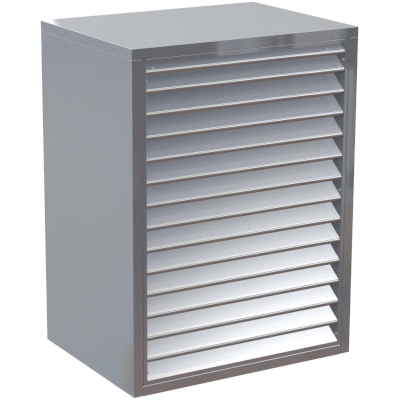

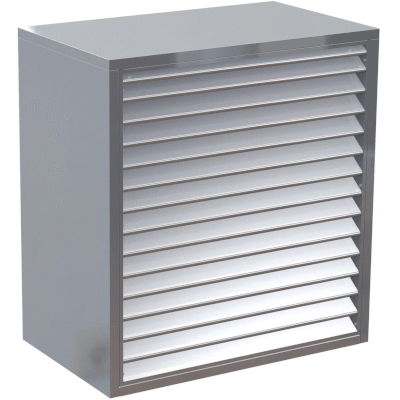

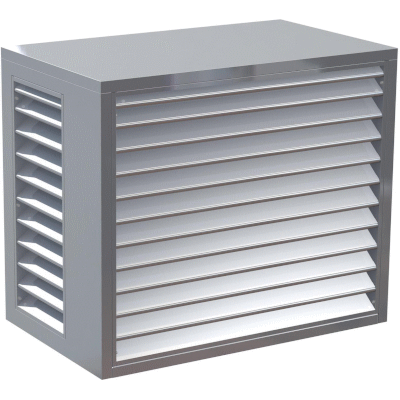

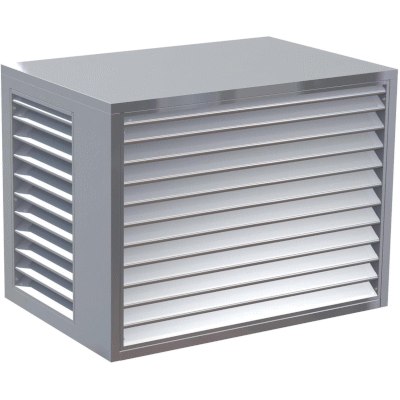

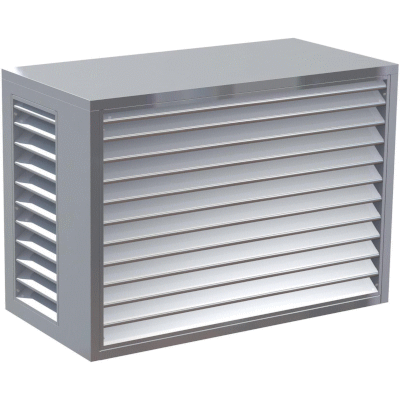

87001 - Acoustic hood - silver grey color
ATEC Abgas-Technologie
Acoustic enclosure
87001 - Acoustic hood - silver grey color
1/5
1
1
2|0
3
4
4
0
0
0
0
0
0
0
0
0
0

87020207

Expand Table
EN
1/5
Part ID
ARTIKEL
PIC
LOD Level
LODLEVEL
High
H [mm]
Width
B [mm]
Depth
T [mm]
Description
BEZ
Colour
OBERFLACHE
Colour
COLOUR
Material - Frame
MATR
Material - Doors
MATT
Material - Doors/Insulation
MATTD
Material - Doors/Closures
MATTV
Number of doors
TUREN
Weight
CNSMASSEXACT [kg]
Information with properties
INFO
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
87020105
300
1280
1510
910
eSILENT HT Acoustic hood 1280x1510x910 Rear intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
180
Website Link
87020106
300
1080
1700
1150
eSILENT HT Acoustic hood 1080x1700x1150 Rear intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
200
Website Link
87020107
300
1280
1700
1150
eSILENT HT Acoustic hood 1280x1700x1150 Rear intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
230
Website Link
87020200
300
1620
1210
910
eSILENT HT Acoustic hood 1620x1210x910 Rear intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
200
Website Link
87020201
300
1820
1210
910
eSILENT HT Acoustic hood 1820x1210x910 Rear intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
220
Website Link
87020202
300
1680
1400
1150
eSILENT HT Acoustic hood 1680x1400x1150 Rear intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
230
Website Link
87020203
300
1880
1400
1150
eSILENT HT Acoustic hood 1880x1400x1150 Rear intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
250
Website Link
87020204
300
1620
1510
910
eSILENT HT Acoustic hood 1620x1510x910 Rear intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
230
Website Link
87020205
300
1820
1510
910
eSILENT HT Acoustic hood 1820x1510x910 Rear intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
250
Website Link
87020206
300
1680
1700
1150
eSILENT HT Acoustic hood 1680x1700x1150 Rear intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
260
Website Link
87020207
300
1880
1700
1150
eSILENT HT Acoustic hood 1880x1700x1150 Rear intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
280
Website Link
87030100
300
1080
1510
910
eSILENT HT Acoustic hood 1080x1510x910 Side intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
140
Website Link
87030101
300
1280
1510
910
eSILENT HT Acoustic hood 1280x1510x910 Side intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
160
Website Link
87030102
300
1080
1700
1150
eSILENT HT Acoustic hood 1080x1700x1150 Side intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
170
Website Link
87030103
300
1280
1700
1150
eSILENT HT Acoustic hood 1280x1700x1150 Side intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
200
Website Link
87030104
300
1080
1810
910
eSILENT HT Acoustic hood 1080x1810x910 Side intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
170
Website Link
87030105
300
1280
1810
910
eSILENT HT Acoustic hood 1280x1810x910 Side intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
180
Website Link
87030106
300
1080
2000
1150
eSILENT HT Acoustic hood 1080x2000x1150 Side intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
200
Website Link
87030107
300
1280
2000
1150
eSILENT HT Acoustic hood 1280x2000x1150 Side intake silver grey (HxBxT)
silver gray (RAL 9023)
Steel ZM310
Steel ZM310
Mineral fiber with glass fiber coating
Galvanized steel
5
230
Website Link
显示压缩表示(32 konfigurierbares Produkt)
零部件信息
相似件
Price Trend Risk
ATEC Abgas-Technologie - 87001
订购编码87020207
ShorttextAcoustic hood - silver grey color
上次修改16.08.2024 14:08:36
单位
关键字

分类

CNS

CNSERPBASE Object Properties
Order Number87020207

ECLASS 14.0

22-39-10-90 加热技术组件（未指定）

ETIM 10.0

EC001249 Cover/casing for outdoor units
ColourRAL 9023
Width1700
Height1880
Length1150
Sound insulation thickness50
Sound reduction10 - null
Sound-dampingYes
MaterialStainless steel
Suitable for heat pumpYes
Suitable for air conditionerYes
Suitable for recirculating chillerYes
Suitable for refrigeration plantYes
ModelSound-muffling cover
Air inlet and outlet openingFins
Position air inletOther
Position air outletFront side
Vandal proofYes
EC004482 Control unit for electrical radiators

ETIM 9.0

EC001249 Cover/casing for outdoor units
ColourRAL 9023
Width1700
Height1880
Length1150
Sound insulation thickness50
Sound reduction10 - null
Sound-dampingYes
MaterialStainless steel
Suitable for heat pumpYes
Suitable for air conditionerYes
Suitable for recirculating chillerYes
Suitable for refrigeration plantYes
ModelSound-muffling cover
Air inlet and outlet openingFins
Position air inletOther
Position air outletFront side
Vandal proofYes
EC004482 Control unit for electrical radiators

Revit

RVT_METRICGENERICMODELFACEBASED (Metric) Generic Model face based
