8324590000 - MCZ TO 24VDC/50MS

8324590000 - MCZ TO 24VDC/50MS

Weidmueller 8324590000

Expand Table

主变量

次变量

1/5

Preview

PREVIEW

Product number of the Manufacturer

MANUID

Manufacturer Type Description

MANUTYPEDESC

Short Description

DESCSHORT

Long Description

DESCLONG

GTIN

Manufacturer Name

MANUNAME

pluggable onto contactor

AAB385

Outputs, changeover delayed/non-delayed

AAB424

suitable for front mounting

AAB660

8324590000

MCZ TO 24VDC/50MS

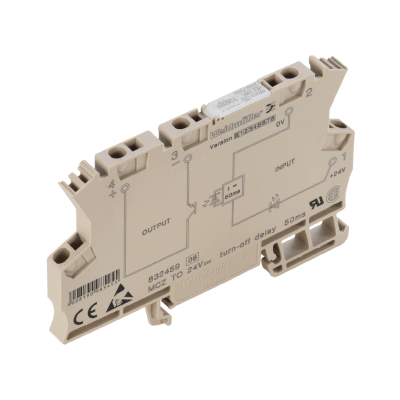

Timing relay, 24 V DC ±10 %, 1 NO contact (Transistor) 20 mA, Tension-clamp connection

Timing relay for processing control signals. Short pulses are extended in time and thus reliably detected by the downstream control modules.

4008190985455

Weidmueller Group

显示压缩表示形式 (1 Produkt)

标准代码	8324590000
描述	MCZ TO 24VDC/50MS
公司	ECLASS 13.0
上次修改	25.09.2024 16:15:48
单位

8324590000,MCZ TO 24VDC/50MS,ECLASS 13.0

CNS

CNSERPBASE Object Properties

Customs Tariff Number	85364110
Description long	Timing relay for processing control signals. Short pulses are extended in time and thus reliably detected by the downstream control modules.
Description short	Timing relay, 24 V DC ±10 %, 1 NO contact (Transistor) 20 mA, Tension-clamp connection
GTIN-Code	4008190985455
Order Number	8324590000
Product website	https://eshop.weidmueller.com/p/8324590000
Use Case	https://eshop.weidmueller.com/p/8324590000

CNSPHYPROP Physical Properties

ECLASS 14.0

27-37-16-05 定时继电器

产品类型	MCZ TO 24VDC/50MS
EAN代码	4008190985455
厂商产品编号	8324590000
制造商名称	Weidmueller Group
附加链接地址	https://eshop.weidmueller.com/p/8324590000
制造商产品说明	Timing relay, 24 V DC ±10 %, 1 NO contact (Transistor) 20 mA, Tension-clamp connection
制造商产品名称	Timing relay
损耗功率	0.200

ECLASS 13.0

27-37-16-05 定时继电器

Product type	MCZ TO 24VDC/50MS
EAN代码	4008190985455
厂商产品编号	8324590000
制造商名称	Weidmueller Group
address of additional link	https://eshop.weidmueller.com/p/8324590000
Manufacturer product description	Timing relay, 24 V DC ±10 %, 1 NO contact (Transistor) 20 mA, Tension-clamp connection
Manufacturer product designation	Timing relay
损耗功率	0.200

ECLASS 12.0

27-37-16-05 定时继电器

可插嵌的接触器	No
输出，已延迟/未延迟转换	No
适用于正面安装	No
适合用于安装在标准导轨上	Yes
最小额定控制电压Us（直流）	21.600
customs tariff number (TARIC)	85364110
Product type	MCZ TO 24VDC/50MS
EAN代码	4008190985455
厂商产品编号	8324590000
制造商名称	Weidmueller Group
延时继电器输出的快门数量	1
address of additional link	https://eshop.weidmueller.com/p/8324590000
Manufacturer product description	Timing relay, 24 V DC ±10 %, 1 NO contact (Transistor) 20 mA, Tension-clamp connection
Manufacturer product designation	Timing relay
高度	91
损耗功率	0.200
深度	62.9
操纵方法	DC
半导体输出	Yes
只适用于远程控制	No
插座	No
可以远程控制	No
响应延迟	No
瞬时断开	No
可以始于脉冲闪光，节日期间	No
可以始于间歇闪光，节日期间	No
瞬时接通	No
可以形成脉冲	No
可返回延迟	Yes
星/三角	No
始于节拍脉冲，可变	No
始于节拍间隙，可变	No
宽度	6.1

ETIM 9.0

EC001439 Timer relay

ETIM 8.0

EC001439 Timer relay

Pluggable on auxiliary contact block	No
Outputs, reversible delayed/undelayed	No
Suitable for front mounting	No
Suitable for DIN rail (top hat rail) mounting	Yes
Rated control supply voltage Us at DC	21.600
Number of outputs, delayed, normally open contact	1
Height	91
Depth	62.9
Voltage type for actuating	DC
With semiconductor output	Yes
Suitable as remote control	No
With plug-in socket	No
Remote operation possible	No
Function delay-on energization	No
Function floating contact on de-energization	No
Function flashing, starting with pulse, fixed time	No
Function flashing, starting with pause, fixed time	No
Function floating contact on energization	No
Function pulse shaping	No
Function delay on de-energization	Yes
Function star-delta	No
Clock function, starting with pulse, variable	No
Clock function, starting with pause, variable	No
Width	6.1
